Cruise control recall control check

Make: Fiat
Model: Bravo Factory Service Manual
Year: 2007–2014
Section: Special accessories › Cruise control recall control check

‹ Prev Cruise control set + control check Next › Cruise control set - control check

Electrical equipmentCruise control recall control check

CRUISE CONTROL RECALL CONTROL CHECK

Check 5580AC

1.9 JTD 8v, 1.9 JTD 16v

STEP	CHECK TO BE PERFORMED	REMEDIAL ACTION IF THE CHECK IS NOT OK
1	Check resistance Disconnect the wiring side connector from the steering wheel stalk unit Cruise control stalk Place the Cruise Control control in the RECALL position Select the Ohmmeter mode on the Examiner Connect the probes between pins 1 and 4 of the cruise control stalk connector and check that a resistance reading of 600 Ohms ± 10 % is present at 20°C	Replace the steering wheel stalk complete with Cruise Control control Op. 5580A10 CRUISE CONTROL LEVER ASSEMBLY - R+R

STEP

CHECK TO BE PERFORMED

REMEDIAL ACTION IF THE CHECK IS NOT OK

Check resistance

Disconnect the wiring side connector from the steering wheel stalk unit Cruise control stalk

Place the Cruise Control control in the RECALL position

Select the Ohmmeter mode on the Examiner

Connect the probes between pins 1 and 4 of the cruise control stalk connector and check that a resistance reading of 600 Ohms ± 10 % is present at 20°C

Replace the steering wheel stalk complete with Cruise Control control

Op. 5580A10 CRUISE CONTROL LEVER ASSEMBLY - R+R

Cruise control stalk

Cruise Control steering wheel stalk connector

1.4 16v, 1.4 16v TJet

STEP	CHECK TO BE PERFORMED	REMEDIAL ACTION IF THE CHECK IS NOT OK
1	Disconnect the wiring side connector from the steering wheel stalk unit Cruise control stalk Place the Cruise Control control in the ON position Place the Cruise Control control in the RESUME position Select the Ohmmeter mode on the Examiner Connect the probes between pins 1 and 4 of the cruise control stalk connector and check that a resistance reading of 600 Ohms ± 10 % is present at 20°C	Replace the steering wheel stalk complete with Cruise Control control Op. 5580A10 CRUISE CONTROL LEVER ASSEMBLY - R+R

STEP

CHECK TO BE PERFORMED

REMEDIAL ACTION IF THE CHECK IS NOT OK

Disconnect the wiring side connector from the steering wheel stalk unit Cruise control stalk

Place the Cruise Control control in the ON position

Place the Cruise Control control in the RESUME position

Select the Ohmmeter mode on the Examiner

Connect the probes between pins 1 and 4 of the cruise control stalk connector and check that a resistance reading of 600 Ohms ± 10 % is present at 20°C

Replace the steering wheel stalk complete with Cruise Control control

Op. 5580A10 CRUISE CONTROL LEVER ASSEMBLY - R+R

Cruise Control stalk

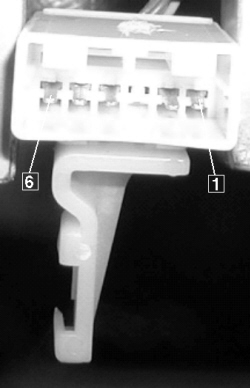

Cruise Control steering wheel stalk connector pinout
