Engine coolant temperature sensor - r + r

Make: Fiat
Model: Bravo Factory Service Manual
Year: 2007–2014
Section: Petrol injection system › Engine coolant temperature sensor - r + r

EngineEngine coolant temperature sensor - r + r

ENGINE COOLANT TEMPERATURE SENSOR - R + R

Operation 1056B50 · MULTI-POINT INJECTION SYSTEM (MPI)

1.4 16v

- Disconnect the negative battery terminal.

1. Disconnect electrical connection (1a) and unscrew engine coolant temperature sensor (1b).

	Description	Connector
1a	Engine coolant temperature sensor/sender unit	See K036 ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT

- Place the engine coolant temperature sensor in its housing and tighten it to the recommended torque.

Component	Fastening	dia	Value (daNm)	Validity
Engine coolant temperature sensor		M12	1.8 ÷ 2.2	1.4 16v

- Connect the engine coolant temperature sensor electrical connection.

- Connect the negative battery terminal (-).

1.4 16v TJet

- Position the vehicle on a lift.

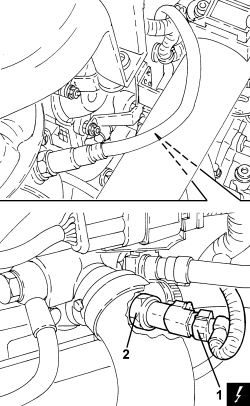

1. Disconnect the electrical connection for the engine coolant temperature sensor.

	Description	Connector
1	Engine coolant temperature sensor/sender unit	See K036 ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT

2. Undo the engine coolant temperature sensor and remove it.

- Place the engine coolant temperature sensor in its housing and tighten it to the recommended torque.

Component	Fastening	dia	Value (daNm)	Validity
Engine coolant temperature sensor		M12	1.8 ÷ 2.2	1.4 16v

- Connect the engine coolant temperature sensor electrical connection.

- Remove the vehicle from the lift.
