Instrument panel - wiring diagram

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Instrument panel › Instrument panel - wiring diagram

Wiring diagrams and electrical functionsInstrument panel - wiring diagram

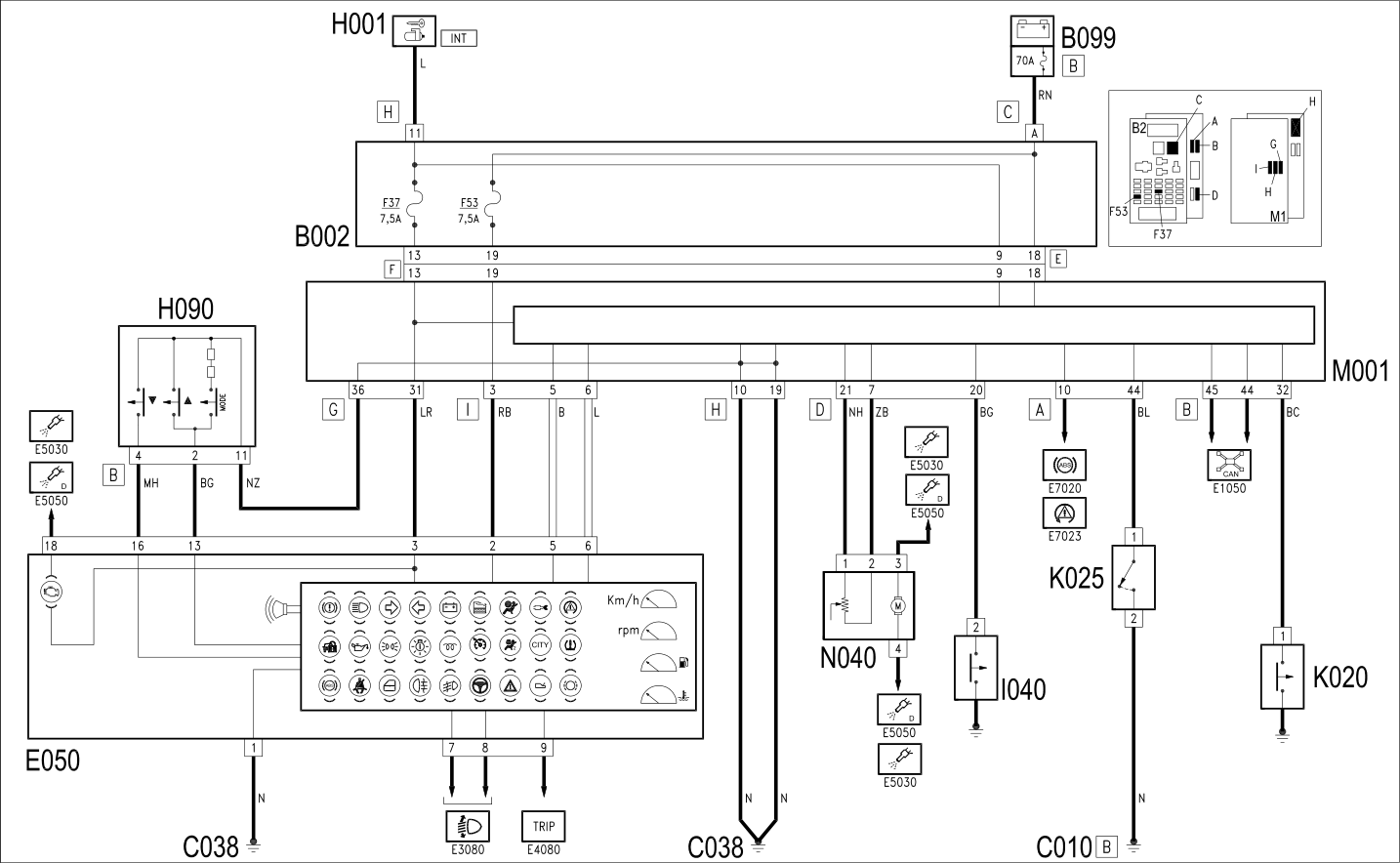

INSTRUMENT PANEL - WIRING DIAGRAM

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C010	LEFT FRONT EARTH
C038	EARTH ON CENTRE TUNNEL
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
I040	HANDBRAKE SWITCH	Op. 5550D18 HANDBRAKE ON WARNING LIGHT SWITCH - R+R
K020	LEFT BRAKE PAD WEAR SENSOR (SWITCH)	Op. 3310A60 FRONT BRAKE PADS - REPLACE
K025	BRAKE FLUID LEVEL SENSOR (SWITCH)	Op. 3330C44 BRAKE FLUID MINIMUM W/L SWITCH - R + R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
N040	FUEL PUMP AND LEVEL GAUGE	Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R
