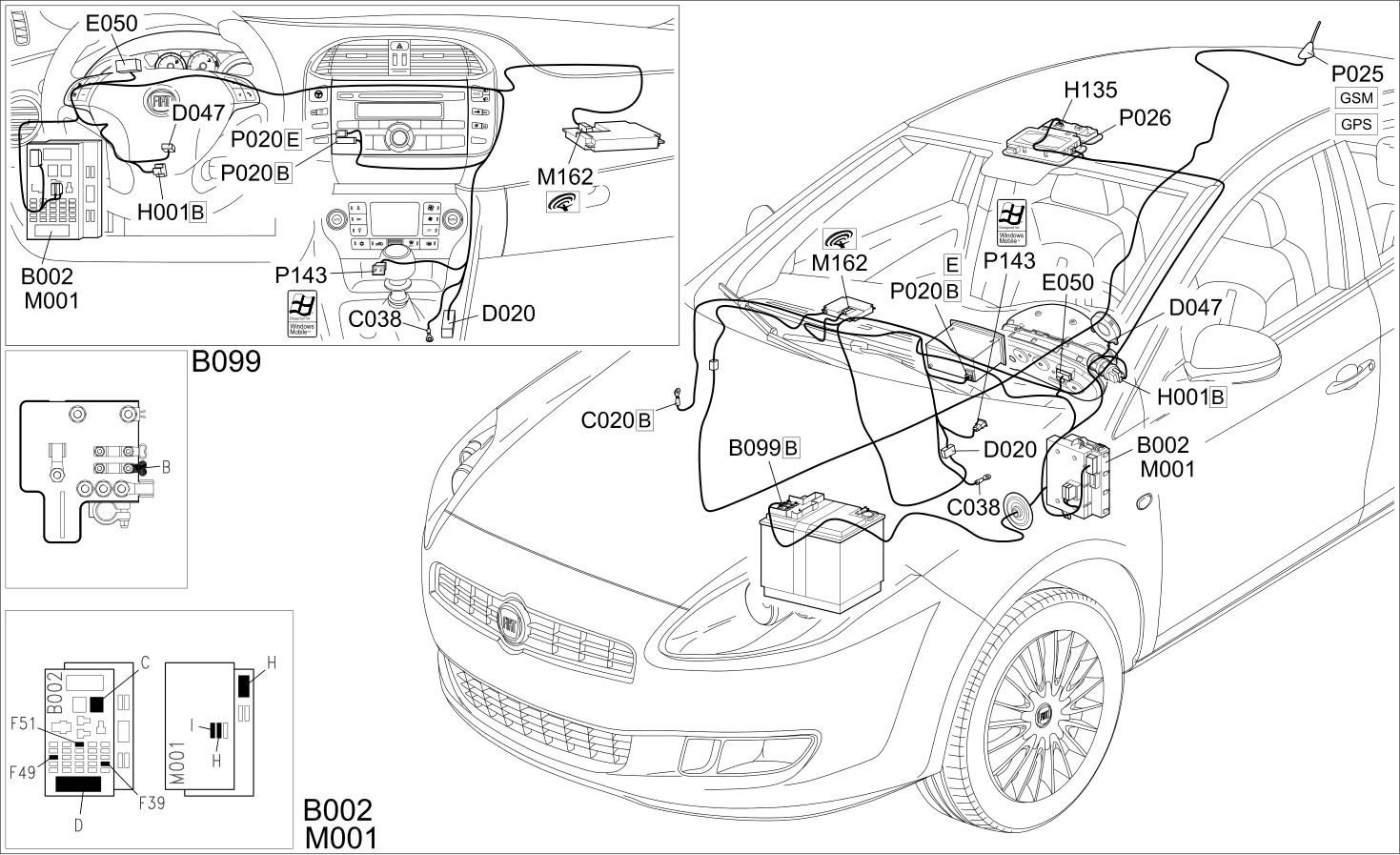

NAVIGATOR COMPONENT LOCATION

Blue&Me

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C020	PASSENGER SIDE DASHBOARD EARTH
C038	EARTH ON CENTRE TUNNEL
D020	DASHBOARD/REAR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H135	NAVIGATION CONTROLS	Op. 5580M20 ON BOARD NAVIGATION SYSTEM CONTROLS - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M162	BLUETOOTH CONTROL UNIT	Op. 5570T49 BLUETOOTH ELECTRONIC CONTROL UNIT - R.R.
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P025	AERIAL POWER SUPPLY	Op. 5570T27 AERIAL SUPPORT - R.R
P026	HANDSFREE MICROPHONE	Op. 7040E10 FRONT COURTESY LIGHT - R+R
P143	USB SOCKET	Op. 5570T55 BLUE & ME USB PORT - R.R.
