RADIO - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C038	EARTH ON CENTRE TUNNEL
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P025	AERIAL POWER SUPPLY	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER IN FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER ON PASSENGER FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	DRIVER'S FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	PASSENGER FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R

Radio setup

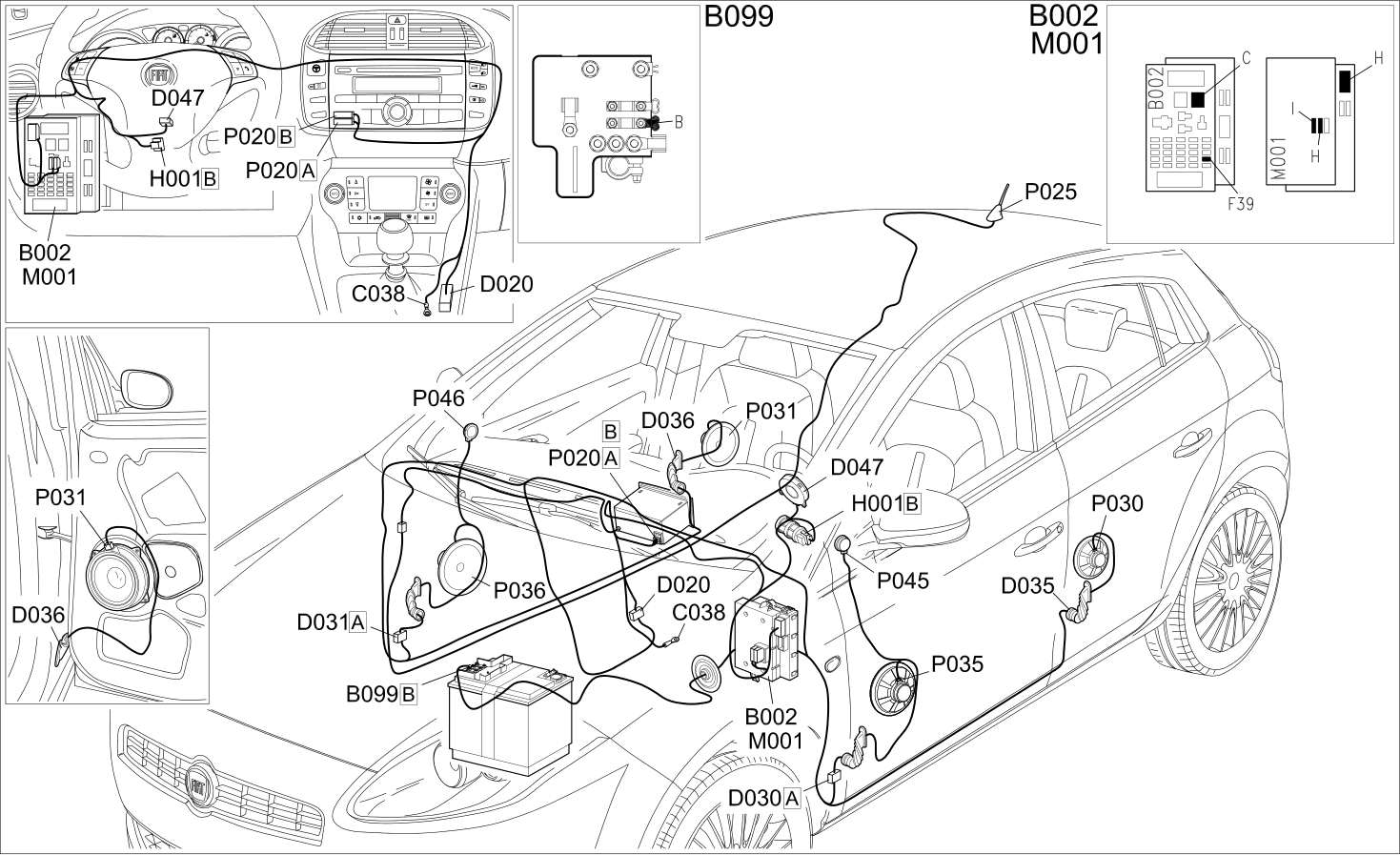

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C038	EARTH ON CENTRE TUNNEL
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
P020	RADIO
P025	AERIAL POWER SUPPLY	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER IN FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER ON PASSENGER FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	DRIVER'S FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	PASSENGER FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R

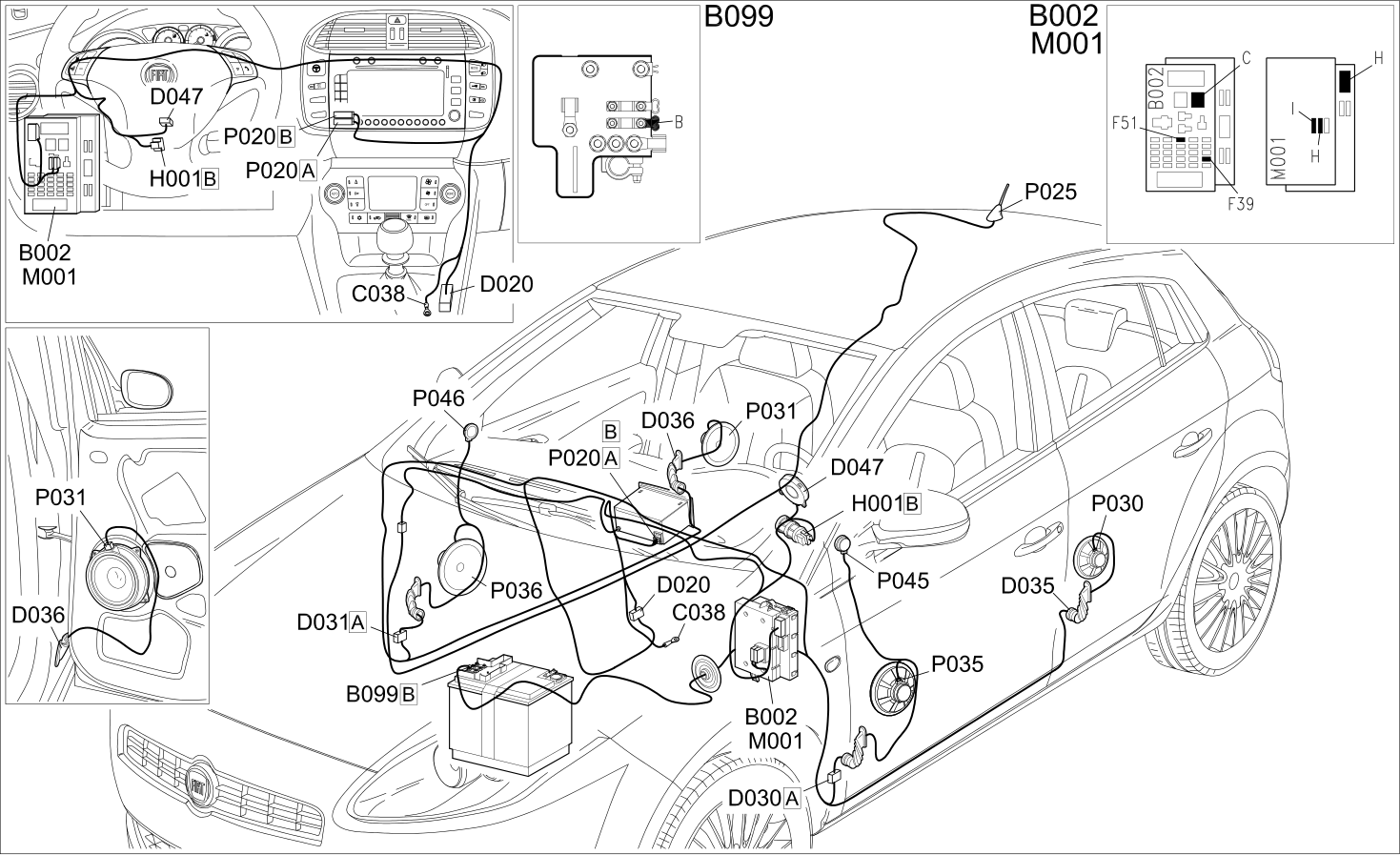

Hi-Fi system

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P025	AERIAL POWER SUPPLY	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER IN FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER ON PASSENGER FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	DRIVER'S FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	PASSENGER FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P047	LEFT REAR TWEETER SPEAKER
P048	RIGHT REAR TWEETER SPEAKER
P049	REAR CENTRE WOOFER SPEAKER
P070	RADIO HI-FI AMPLIFIER

Connect

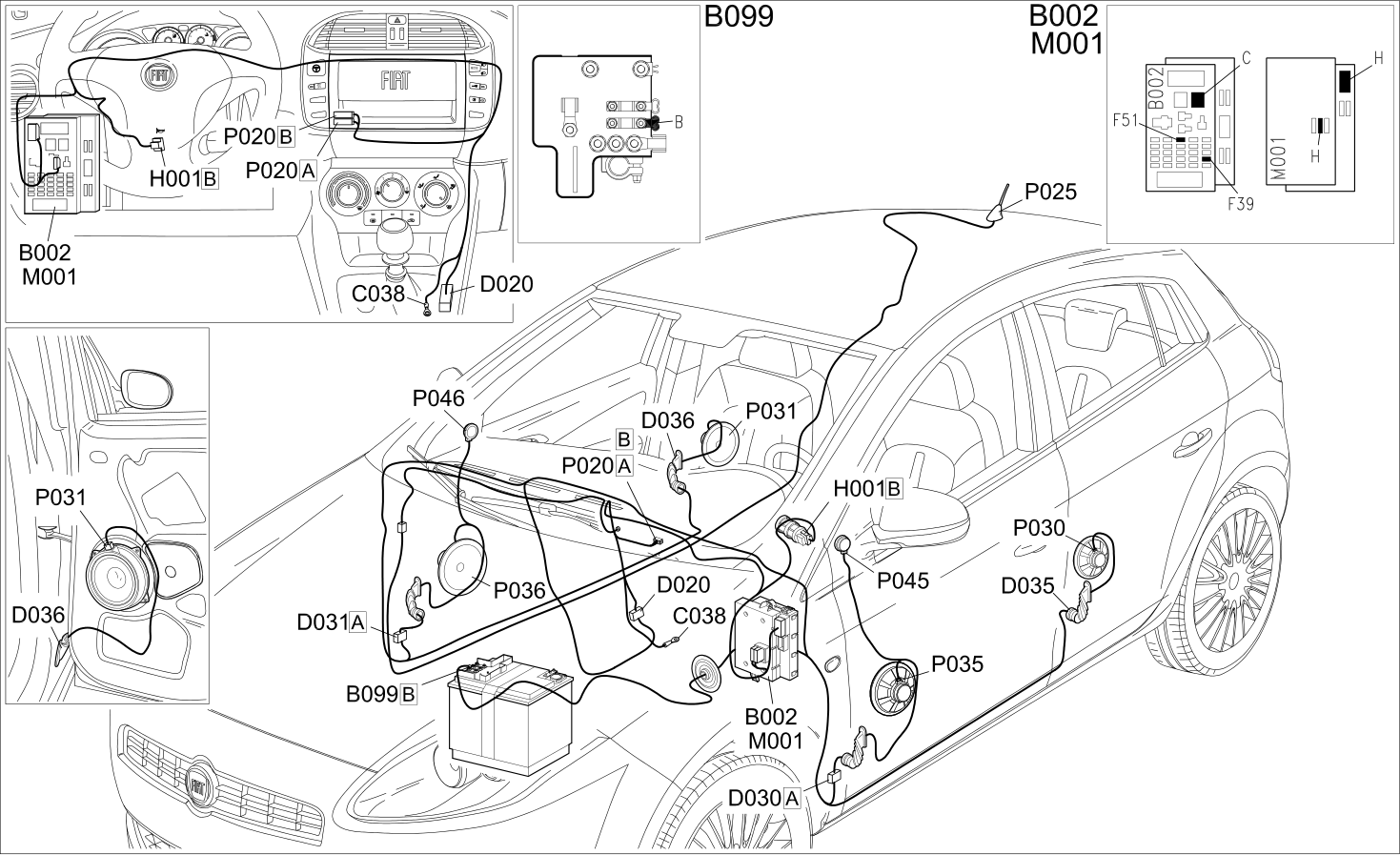

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C038	EARTH ON CENTRE TUNNEL
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
P020	RADIO
P025	AERIAL POWER SUPPLY	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER IN FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER ON PASSENGER FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	DRIVER'S FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	PASSENGER FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R

Connect, Hi-Fi system

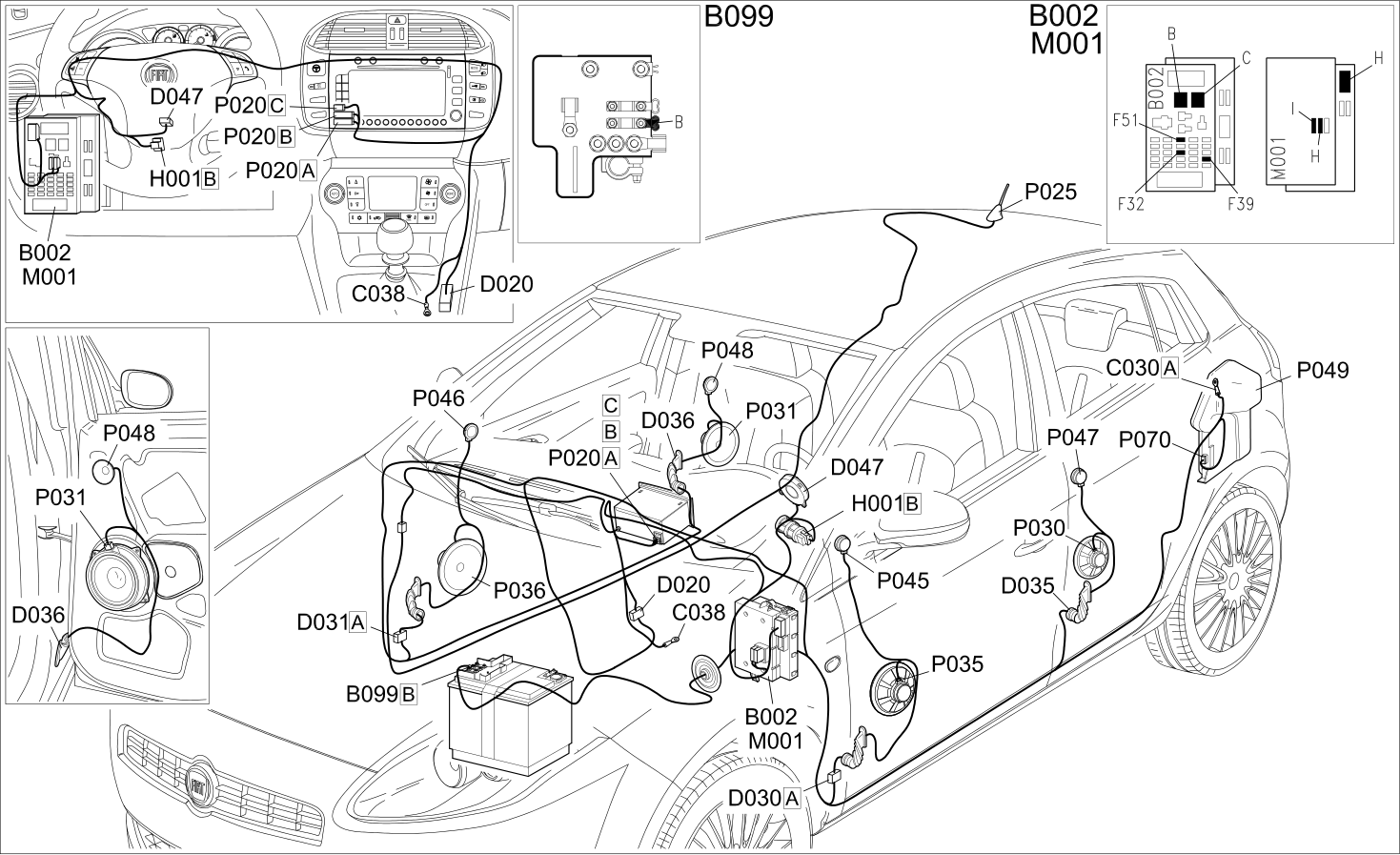

COMPONENT LOCATION

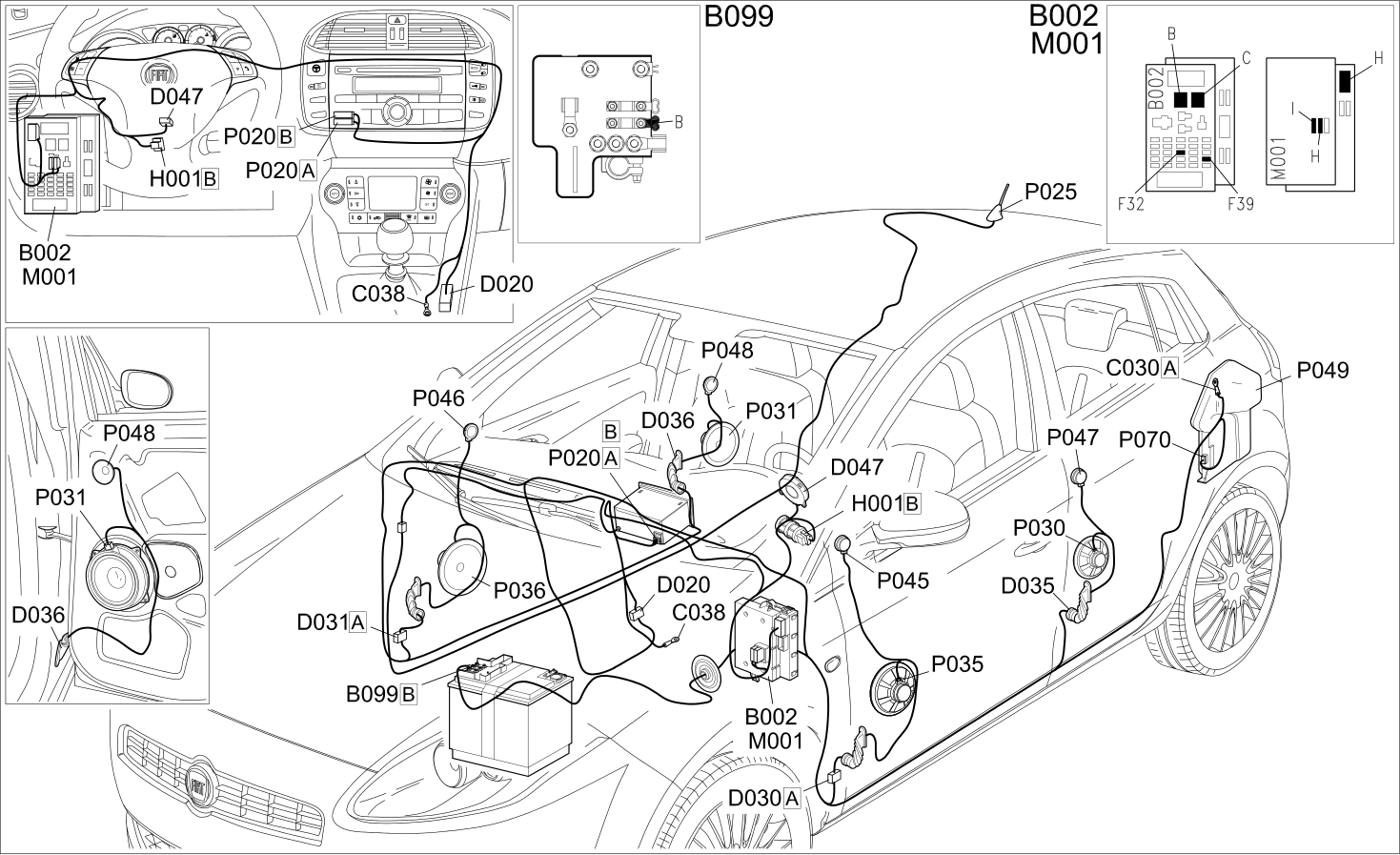

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
P020	RADIO
P025	AERIAL POWER SUPPLY	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER IN FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER ON PASSENGER FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	DRIVER'S FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	PASSENGER FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P047	LEFT REAR TWEETER SPEAKER
P048	RIGHT REAR TWEETER SPEAKER
P049	REAR CENTRE WOOFER SPEAKER
P070	RADIO HI-FI AMPLIFIER
