18 · Body & interior

R.r. front side door

Body panels and frameR.r. front side door

R.R. FRONT SIDE DOOR

Operation 7210E36 · EXTERNAL PARTS

- Turn the ignition key to the OFF position.

- Open the bonnet.

- Disconnect the negative battery terminal.

	Description	Connector
	BATTERY	See A001 BATTERY

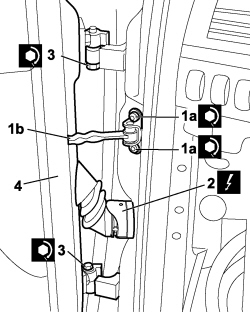

1. Undo the bolts (1a) fixing the check strap (1b) to the pillar and close the door so that the check strap is inside.

2. Disconnect the electrical connection.

	Description	Connector
2	DRIVER''S FRONT DOOR JOIN	See D030 DRIVER'S FRONT DOOR COUPLING

	Description	Connector
2	PASSENGER FRONT DOOR JOIN	See D031 PASSENGER FRONT DOOR COUPLING

3. Undo the bolts for the hinges.

4. Lift up the door and remove it.

- Place the door on the hinges.

- Tighten the bolts for the hinges.

Component	Fastening	dia	Value (daNm)	Validity
FIXED HINGES ON FRONT AND REAR DOOR MOVING HINGES	Bolt	M6	1,2÷ 1,8

Component	Fastening	dia	Value (daNm)	Validity
FRONT AND REAR DOOR CHECK STRAP ON REINFORCEMENT ATTACHING HINGES TO DOOR	Bolt	M6	0,96 ÷ 1,44

- Connect the electrical connection.

	Description	Connector
	DRIVER''S FRONT DOOR JOIN	See D030 DRIVER'S FRONT DOOR COUPLING

	Description	Connector
	PASSENGER FRONT DOOR JOIN	See D031 PASSENGER FRONT DOOR COUPLING

- Connect the negative battery terminal.

	Description	Connector
	BATTERY	See A001 BATTERY

- Check that the various consumers on the door are working.

- Take out the check strap and tighten the bolts.

- Check the alignment of the door and, if necessary, carry out the following operation.

If the half hinges have been removed from the door or from the bodyshell, carry out the following operation.
