18 · Body & interior

R.r. rear side door

Body panels and frameR.r. rear side door

R.R. REAR SIDE DOOR

Operation 7210E38 · EXTERNAL PARTS

- Turn the ignition key to the OFF position.

- Open the bonnet.

- Disconnect the negative battery terminal.

	Description	Connector
	BATTERY	See A001 BATTERY

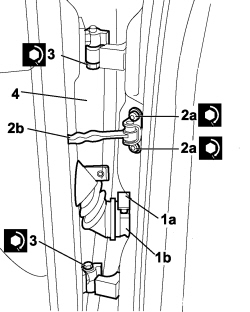

1. Lift up the ring nut (1a) and disconnect the rear side door coupling (1b).

	Description	Connector
1b	LEFT REAR DOOR COUPLING	See D035 LEFT REAR DOOR COUPLING

	Description	Connector
1b	RIGHT REAR DOOR COUPLING	See D036 RIGHT REAR DOOR COUPLING

2. Undo the bolts (2a) fixing the check strap (2b) to the pillar and close the door so that the check strap is inside.

3. Undo the bolts for the hinges.

4. Lift up the door and remove it.

- Place the door on the hinges.

- Tighten the bolts for the hinges.

Component	Fastening	dia	Value (daNm)	Validity
WING TO LIGHT CLUSTER BASE MOUNTING BRACKET	Bolt	M8	6,4 ÷ 9,6

Component	Fastening	dia	Value (daNm)	Validity
WING TO LIGHT CLUSTER BASE MOUNTING BRACKET	Bolt	M8	6,4 ÷ 9,6

- Connect the electrical connection.

	Description	Connector
	LEFT REAR DOOR COUPLING	See D035 LEFT REAR DOOR COUPLING

	Description	Connector
	RIGHT REAR DOOR COUPLING	See D036 RIGHT REAR DOOR COUPLING

- Connect the negative battery terminal.

	Description	Connector
	BATTERY	See A001 BATTERY

- Check that the various consumers on the door are working.

- Take out the check strap and tighten the bolts.

Component	Fastening	dia	Value (daNm)	Validity
WING TO LIGHT CLUSTER BASE MOUNTING BRACKET	Bolt	M8	6,4 ÷ 9,6

- Check the alignment of the door and, if necessary, carry out the following operation.

- If the half hinges have been removed from the door or from the bodyshell, carry out the following operation.
