Electric steering - wiring diagram

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Vehicle electronic systems › Electric steering - wiring diagram

Wiring diagrams and electrical functionsElectric steering - wiring diagram

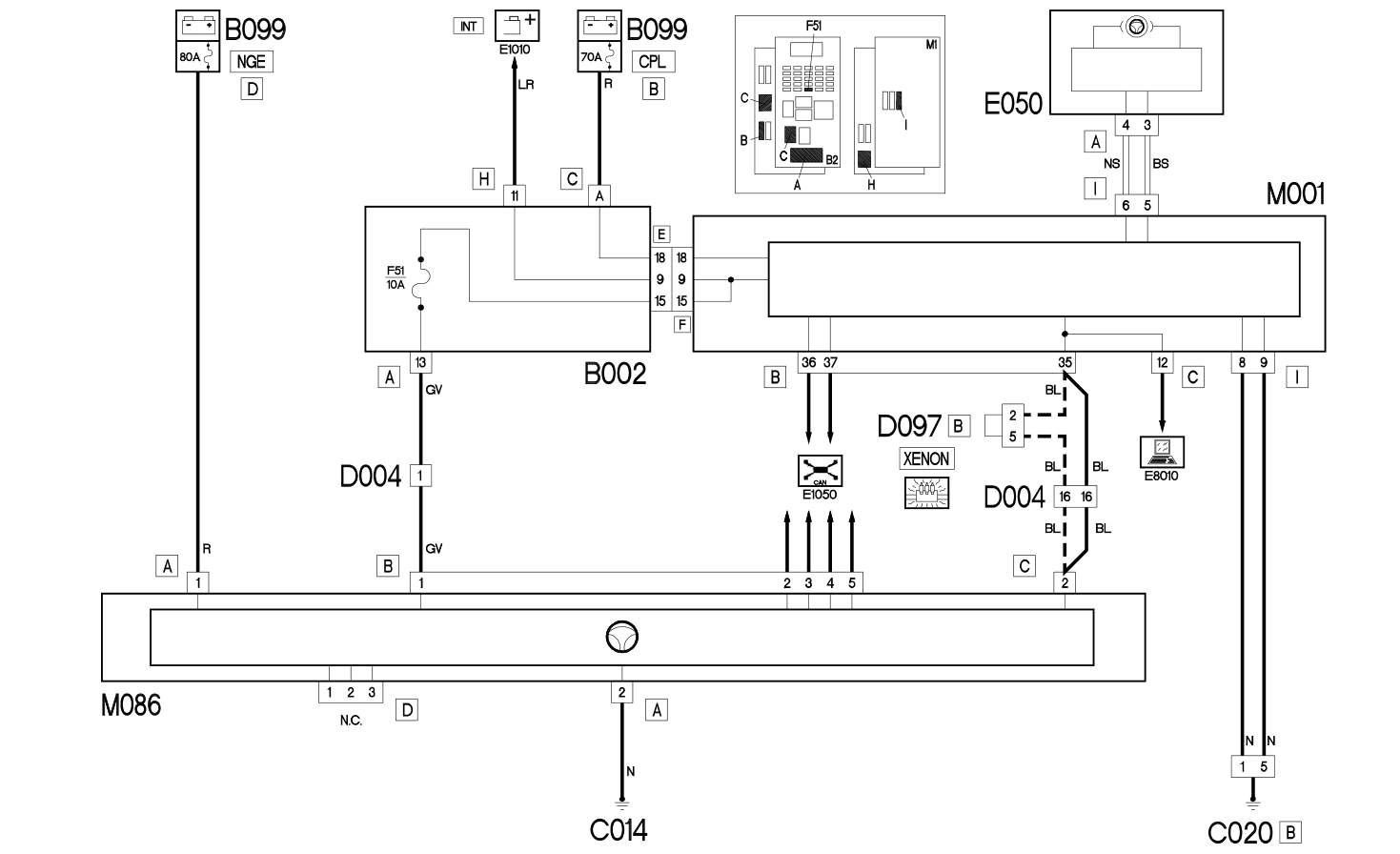

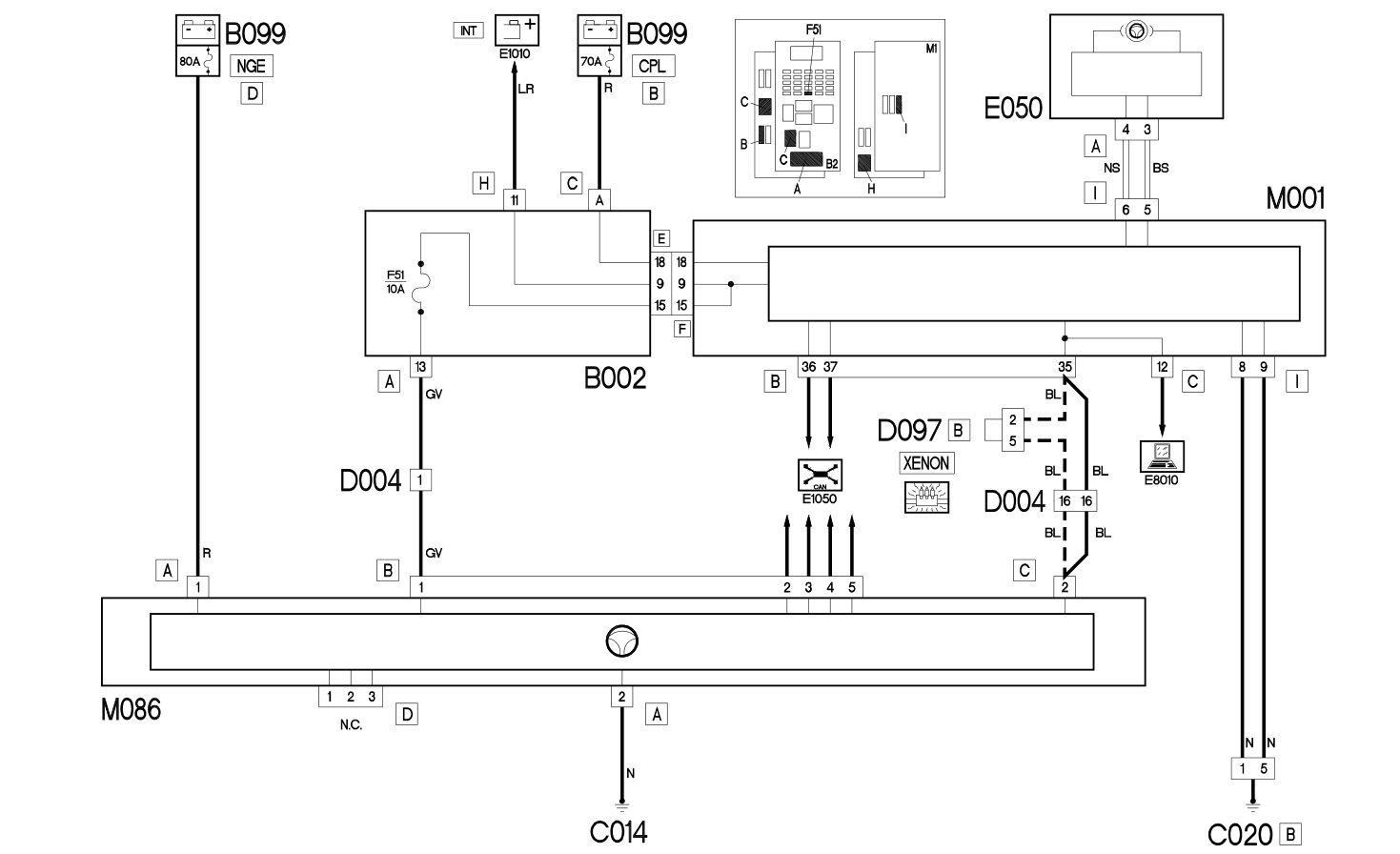

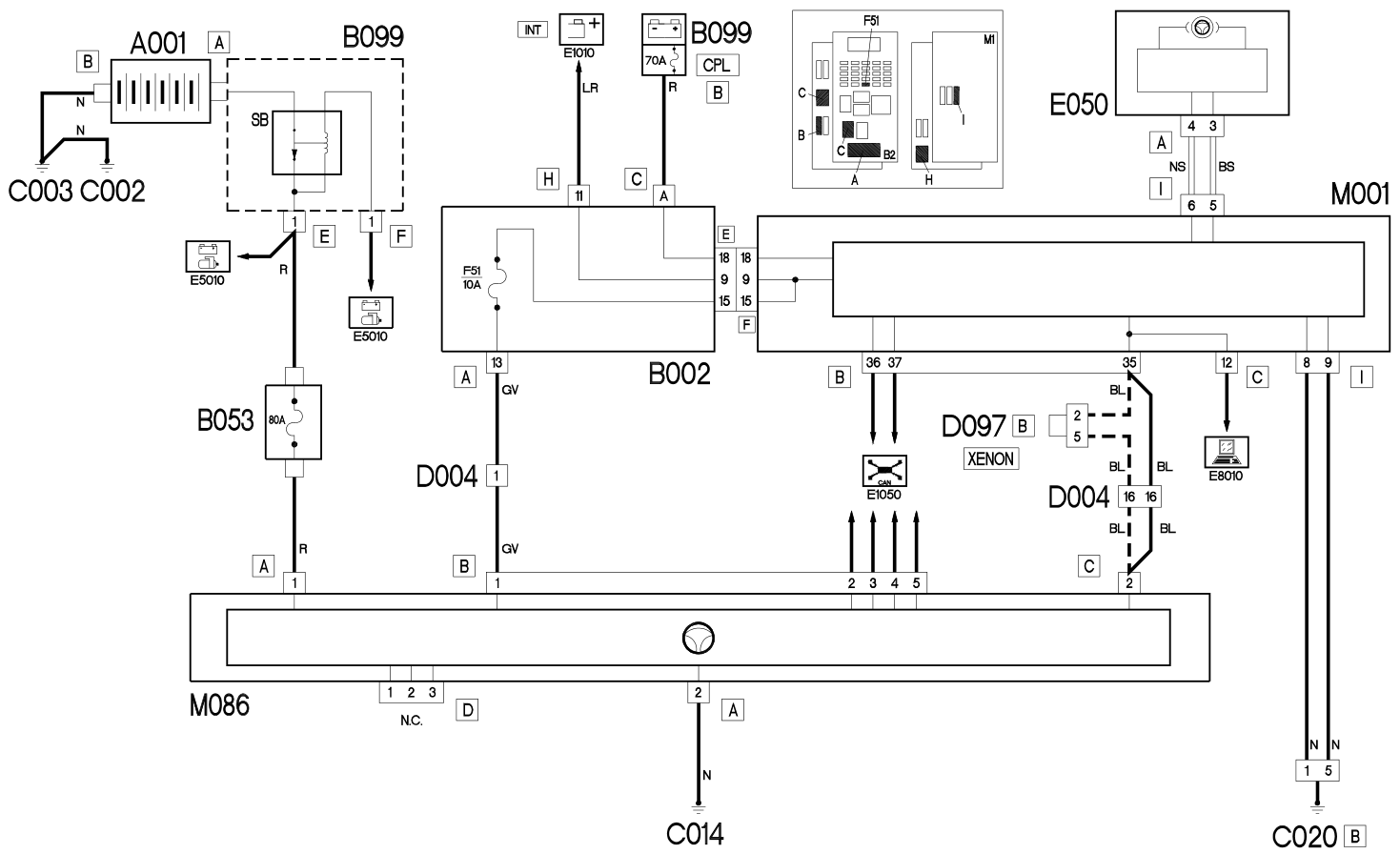

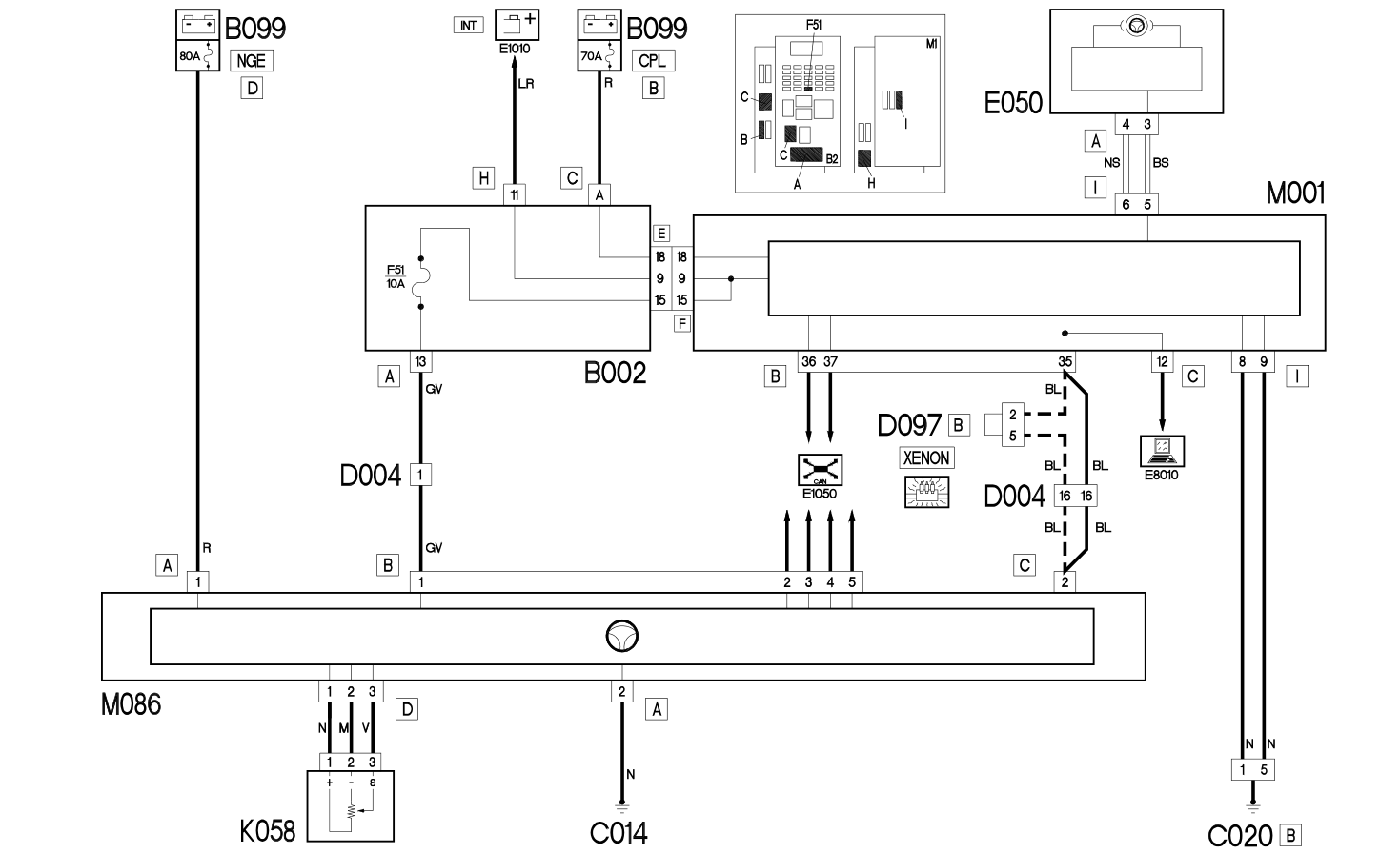

ELECTRIC STEERING - WIRING DIAGRAM

2.2

Components

Component code	Description	Reference to the assembly
A001	BATTERY	Op. 5530B BATTERY AND LEADS
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B053	ELECTRIC STEERING CONTROL UNIT FUSE	Op. 4110D STEERING ELECTRICAL CONTROL SYSTEM
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C002	BATTERY EARTH ON ENGINE
C003	BATTERY EARTH ON BODYSHELL
C014	ELECTRIC STEERING FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D004	FRONT/ENGINE COUPLING
D097	SHORT CIRCUIT COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M086	CONTROL UNIT

1.9 JTD 8v

Components

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C014	ELECTRIC STEERING FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D004	FRONT/ENGINE COUPLING
D097	SHORT CIRCUIT COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
K058	STEERING PRESSURE SENSOR	Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC/ESP
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M086	CONTROL UNIT

1.9 JTD 8v · ESP

Components

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C014	ELECTRIC STEERING FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D004	FRONT/ENGINE COUPLING
D097	SHORT CIRCUIT COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M086	CONTROL UNIT

1.9 JTD 16v, 2.4 JTD 20v

Components

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C014	ELECTRIC STEERING FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D004	FRONT/ENGINE COUPLING
D097	SHORT CIRCUIT COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M086	CONTROL UNIT

1.8

Components

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C014	ELECTRIC STEERING FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D004	FRONT/ENGINE COUPLING
D097	SHORT CIRCUIT COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
K058	STEERING PRESSURE SENSOR	Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC/ESP
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M086	CONTROL UNIT	Op. 4130B POWER STEERING HYDRAULIC SYTEM

1.8 · ESP

Components

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C014	ELECTRIC STEERING FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D004	FRONT/ENGINE COUPLING
D097	SHORT CIRCUIT COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M086	CONTROL UNIT	Op. 4130B POWER STEERING HYDRAULIC SYTEM
