PRESSURE PUMP PULLEY - R R
Removing
- Position the vehicle on a lift.
Op. 7055B54 UNDER-ENGINE GUARD - R R
Op. 4450B04 RIGHT FRONT WHEEL R R
Op. 1092B72 POWER STEERING PUMP DRIVE BELT - ALTERNATOR - R&R
See in Op. 1092A10
See in Op. 1032D12
See in Op. 1032B10

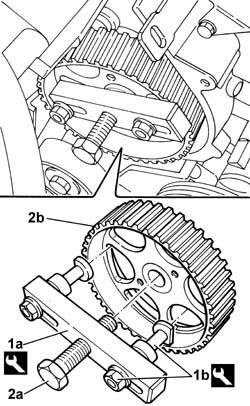

1. Using the tool (1a) with pins, stop the rotation of the pulley and undo the fixing nut (1b).
| Description | Code | Function | |
|---|---|---|---|
| 1a | Counter-torque | 1.870.815.000 | Timing pulley lock |
| Description | Code | Function | |
|---|---|---|---|
| 1a | Pins for counter-torque | 1.870.836.000 | Timing pulley lock |
1. Fit the extractor securing it to the pulley.
| Description | Code | Function | |
|---|---|---|---|
| 1 | Extractor | 1.870.855.000 | Pressure pump control pulley removal |
2. Acting on the hexagonal part of the reaction pin (2a), tighten the pressure pump pulley (2b) until it is extracted.
Refitting
- Fit the pressure pump pulley.
- Using the tool for stopping the rotation, tighten the nut fixing the pressure pump drive pulley to torque.
| Description | Code | Function | |
|---|---|---|---|
| Counter-torque | 1.870.815.000 | Timing pulley lock |
| Description | Code | Function | |
|---|---|---|---|
| Pins for counter-torque | 1.870.836.000 | Timing pulley lock |
| Value - daNm | Fastening | Component | Ø | |
|---|---|---|---|---|
| 7 | Bolt | PRESSURE PUMP CONTROL PULLEY | M14X1.5 |
See in Op. 1032B10
See in Op. 1032D12
See in Op. 1092A10
Op. 1092B72 POWER STEERING PUMP DRIVE BELT - ALTERNATOR - R&R
Op. 4450B04 RIGHT FRONT WHEEL R R
Op. 0010T11 ENGINE OIL CHECK LEVEL AND TOP UP
Op. 7055B54 UNDER-ENGINE GUARD - R R
Removing
- Position the vehicle on the lift.
Op. 7055B54 UNDER-ENGINE GUARD - R R
Op. 4450B04 RIGHT FRONT WHEEL R R
Op. 1092G10 SINGLE ENGINE BELT R R
See in Op. 1092A10
See in Op. 1032D12
See in Op. 1032B10
1. Undo the fixing nut (1b) using the tool (1a).
| Description | Code | Function | |
|---|---|---|---|
| 1a | Counter-torque | 1.860.831.000 | Timing pulley lock |
| Description | Code | Function | |
|---|---|---|---|
| Counter-torque | 1.860.831.001 | Timing pulley lock |

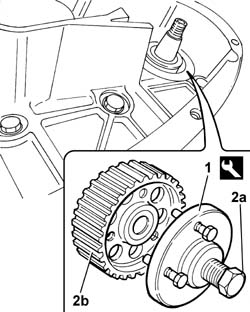

1. Fit the extractor complete with pins fastening it to the pulley.
The extractor should be used without reaction element in order to be able to fit it.
| Description | Code | Function | |
|---|---|---|---|
| 1 | Extractor | 1.860.954.001 | Pressure pump control pulley removal |
| Description | Code | Function | |
|---|---|---|---|
| 1 | Reaction pins | 1.860.954.002 | Pressure pump control pulley removal |
2. Acting on the hexagonal part of the reaction pin (2a), tighten the pressure pump pulley (2b) until it is extracted.
Refitting
- Fit the pressure pump pulley.
- Using the tool for stopping the rotation, tighten the nut fixing the pressure pump drive pulley to torque.
| Description | Code | Function | |
|---|---|---|---|
| Counter-torque | 1.860.831.000 | Timing pulley lock |
| Description | Code | Function | |
|---|---|---|---|
| Counter-torque | 1.860.831.001 | Timing pulley lock |
| Value - daNm | Fastening | Component | Ø | |
|---|---|---|---|---|
| 2 | Nut | PRESSURE PUMP CONTROL PULLEY |
See in Op. 1032B10
See in Op. 1032D12
See in Op. 1092A10
Op. 1092G10 SINGLE ENGINE BELT R R
