RPM SENSOR EFFICIENCY CHECK

Check 1060GA

2.3 JTD 16V

Set up the diagnostic equipment to produce a voltage graph (select the voltmeter function on the "Instruments" menu)

Disconnect the rpm sensor connector.

Connect the connector to the sensor using "Disconnecting switch" AD 223 n° 18.063.88000.

Using the diagnostic equipment probes, connect between pin 1 and2 of the disconnecting switch.

Press the Start button on the diagnostic equipment to begin creating a graph

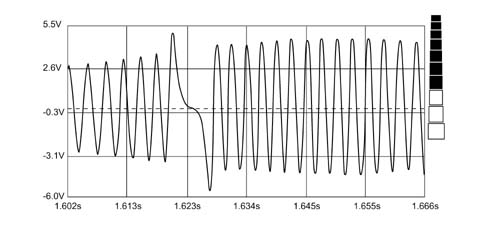

Check that signal amplitude is greater than 1.5 Vand that the graph is as specified during engine start-up.
