Connect wiring diagram
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Instrument panel › Connect wiring diagram
Wiring diagrams and electrical functionsConnect wiring diagram

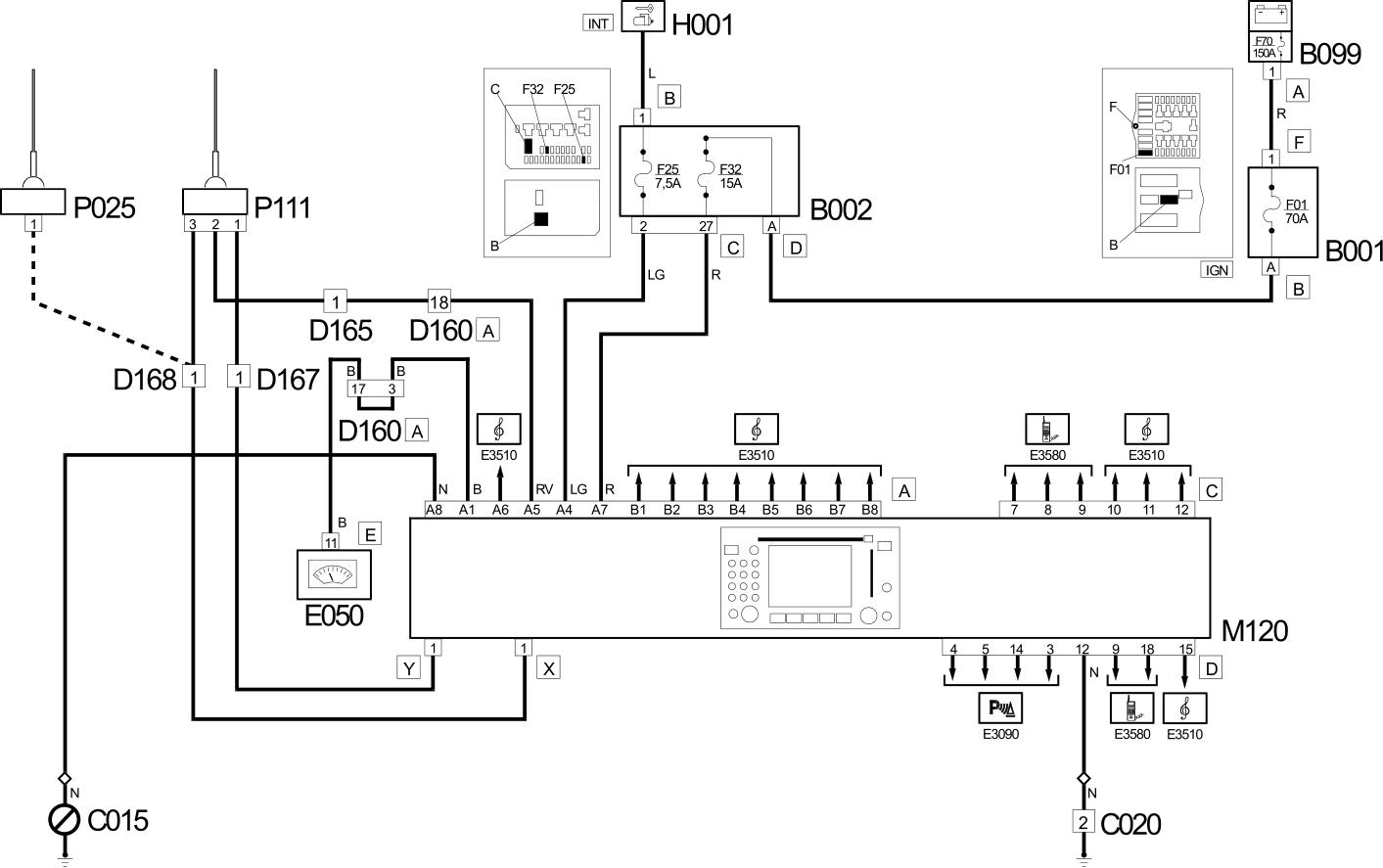

CONNECT WIRING DIAGRAM
Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | JUNCTION UNIT | 5505A |
| B002 | JUNCTION UNIT UNDER DASHBOARD | |
| B099 | MAXI FUSE BOX ON BATTERY | |
| C015 | DASHBOARD EARTH, DRIVER'S SIDE | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| D160 | DASHBOARD/OPTIONAL DASHBOARD COUPLING | |
| D167 | COAXIAL CABLE FOR GSM AERIAL COUPLING | |
| D168 | COAXIAL CABLE FOR RADIO AERIAL COUPLING | |
| E050 | INSTRUMENT PANEL | 5560B |
| H001 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| M120 | Connect front panel | |
| P025 | AERIAL FEED/AMPLIFIER | |
| P111 |
