Instrument panel wiring diagram

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Instrument panel › Instrument panel wiring diagram

Wiring diagrams and electrical functionsInstrument panel wiring diagram

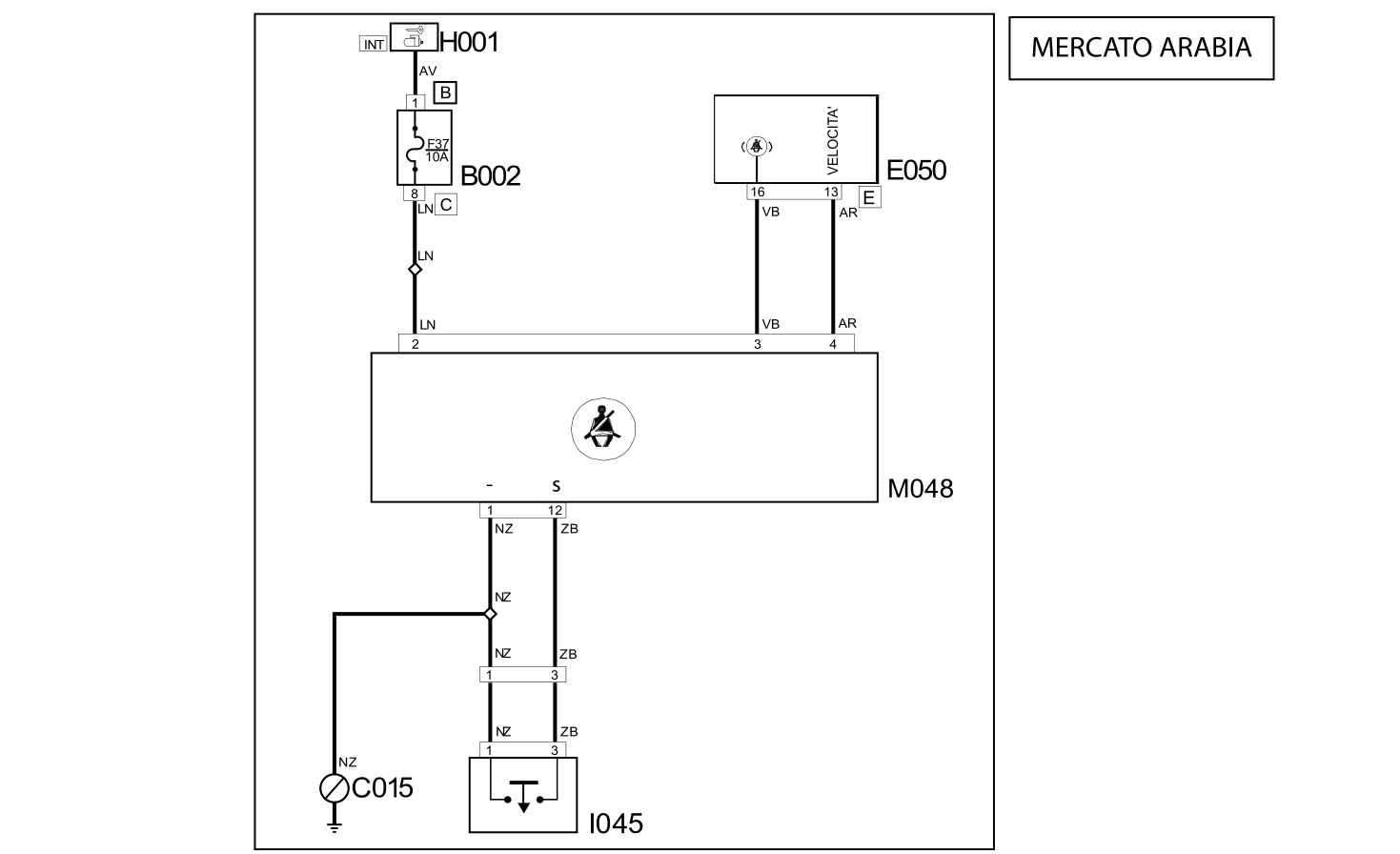

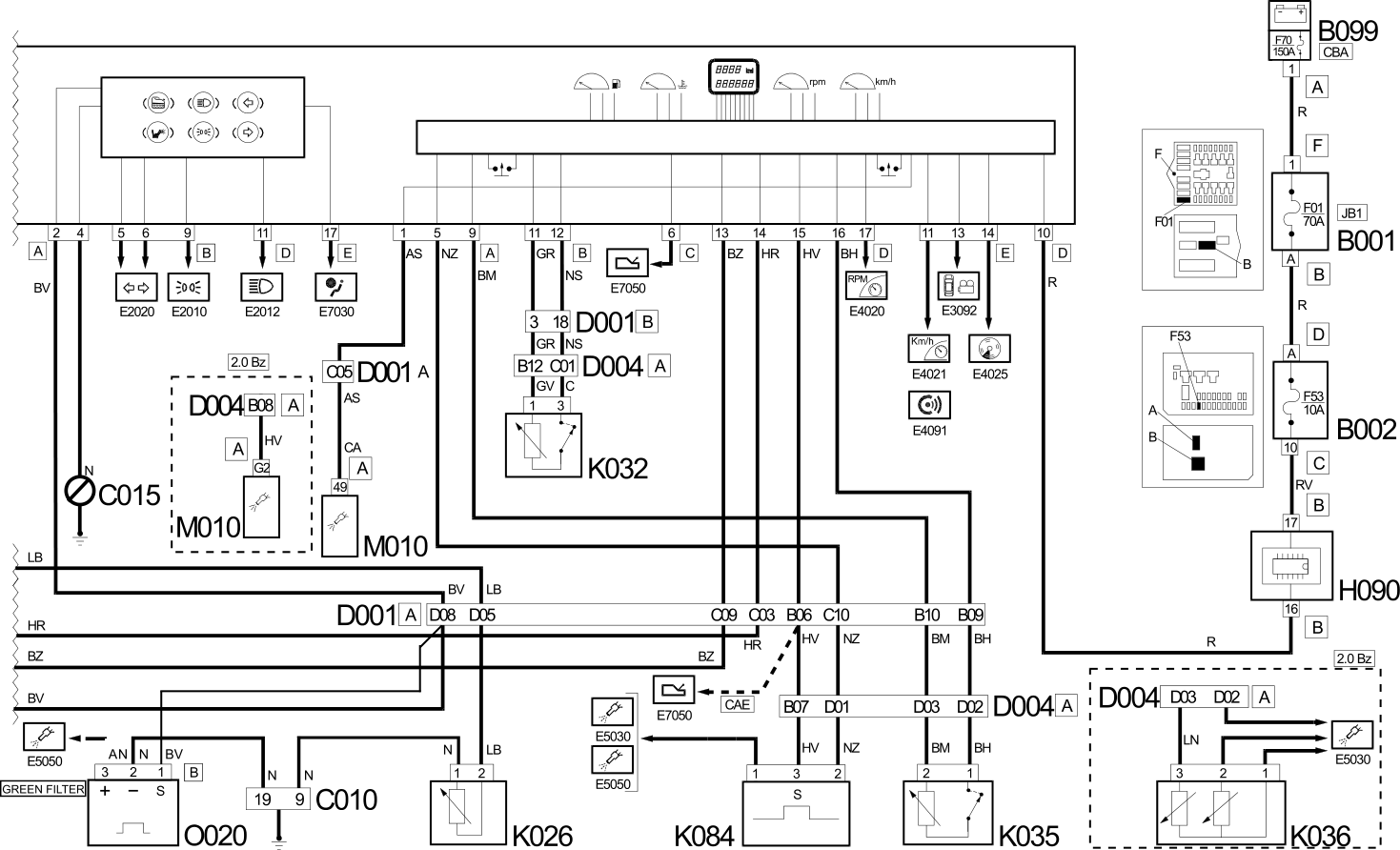

INSTRUMENT PANEL WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT	5,505A
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
C010	LEFT FRONT EARTH
C015	DASHBOARD EARTH, DRIVER'S SIDE
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
D007	ALTERNATOR COUPLING
D025	DASHBOARD/LEFT REAR COUPLING
D097	SHORT CIRCUITING COUPLING
D145	FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING
E050	INSTRUMENT PANEL	5,560B
H001	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
H090	SWITCH CONTROL PANEL	5,505A
I040	HANDBRAKE SWITCH
K020	LEFT BRAKE PAD WEAR SENSOR (SWITCH)
K025	BRAKE FLUID LEVEL SENSOR (SWITCH)
K026	Engine coolant level sensor
K028	ENGINE OIL PRESSURE SENSOR
K031	WATER IN DIESEL FILTER SENSOR
K032	ENGINE OIL LEVEL SENSOR	1,084A
K035	DO NOT USE SENDER UNIT
K036	ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT
K084	SPEEDOMETER SENSOR
M010	ENGINE MANAGEMENT ECU
N041	FUEL PUMP AND EPIC LEVEL GAUGE	1,040A
O020	Diesel heating resistance
