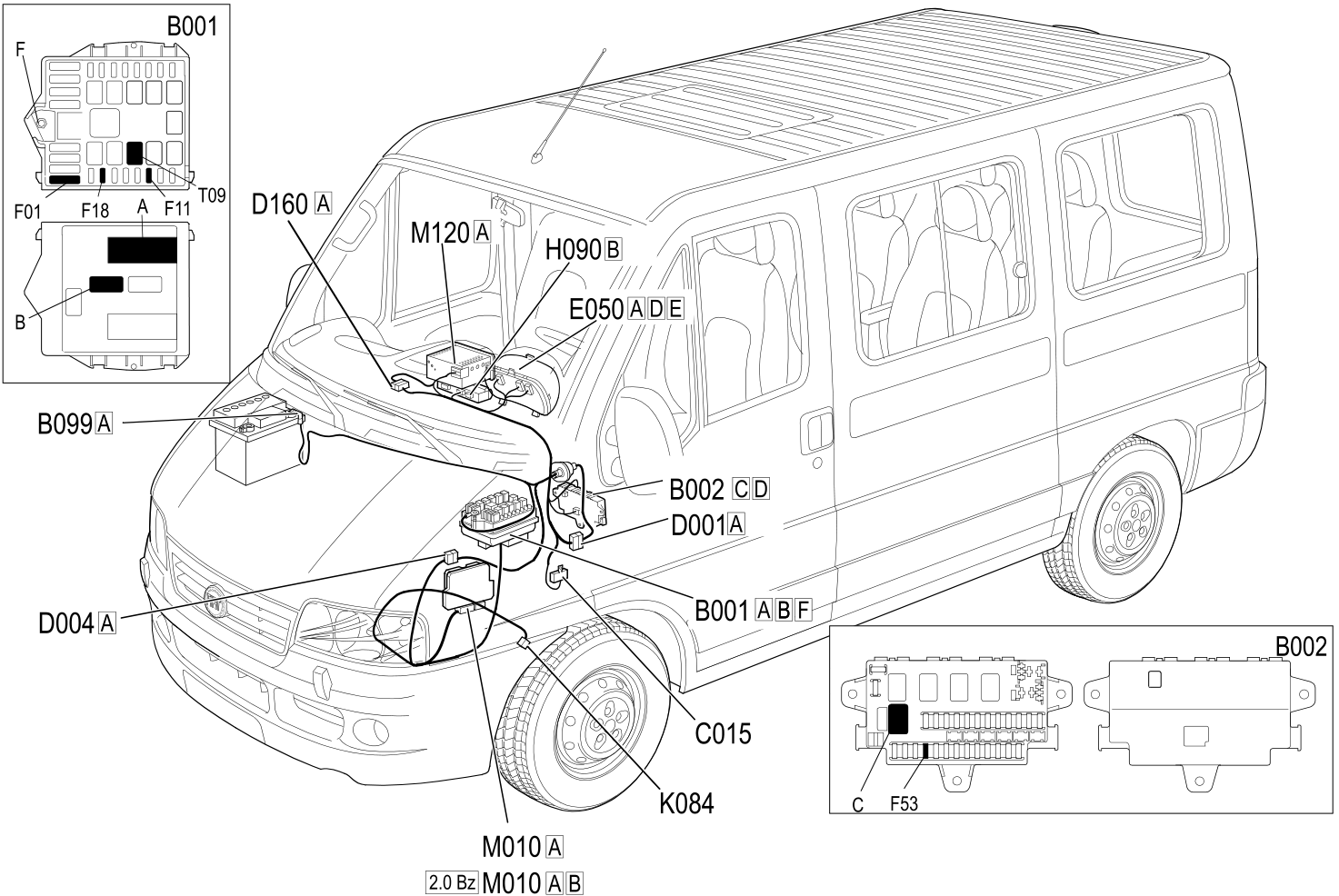

SPEEDOMETER COMPONENT LOCATION

Component location

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT	5505A
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
C015	DASHBOARD EARTH, DRIVER'S SIDE
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
D160	DASHBOARD/OPTIONAL DASHBOARD COUPLING
E050	INSTRUMENT PANEL	5560B
H090	SWITCH CONTROL PANEL	5505A
K084	SPEEDOMETER SENSOR
M010	ENGINE MANAGEMENT ECU
M120	Connect front panel

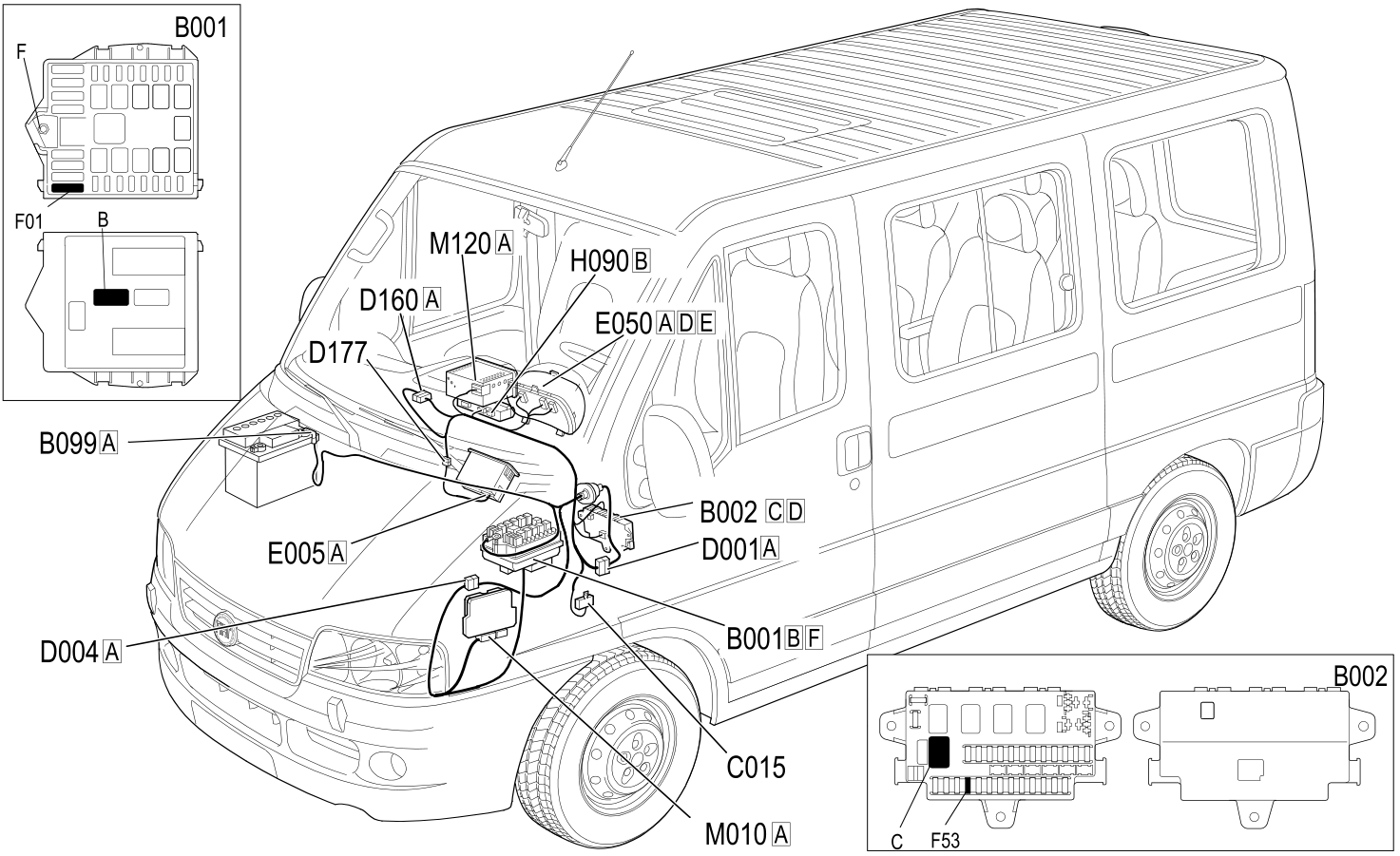

Tachograph

Component location

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT	5505A
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
C015	DASHBOARD EARTH, DRIVER'S SIDE
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
D160	DASHBOARD/OPTIONAL DASHBOARD COUPLING
D177	DASHBOARD/TACHOGRAPH COUPLING
E005	TACHOGRAPH	5560C
E050	INSTRUMENT PANEL	5560B
H090	SWITCH CONTROL PANEL	5505A
M010	ENGINE MANAGEMENT ECU
M120	Connect front panel
