Wiring diagrams and electrical functionsSpeedometer wiring diagram
SPEEDOMETER WIRING DIAGRAM

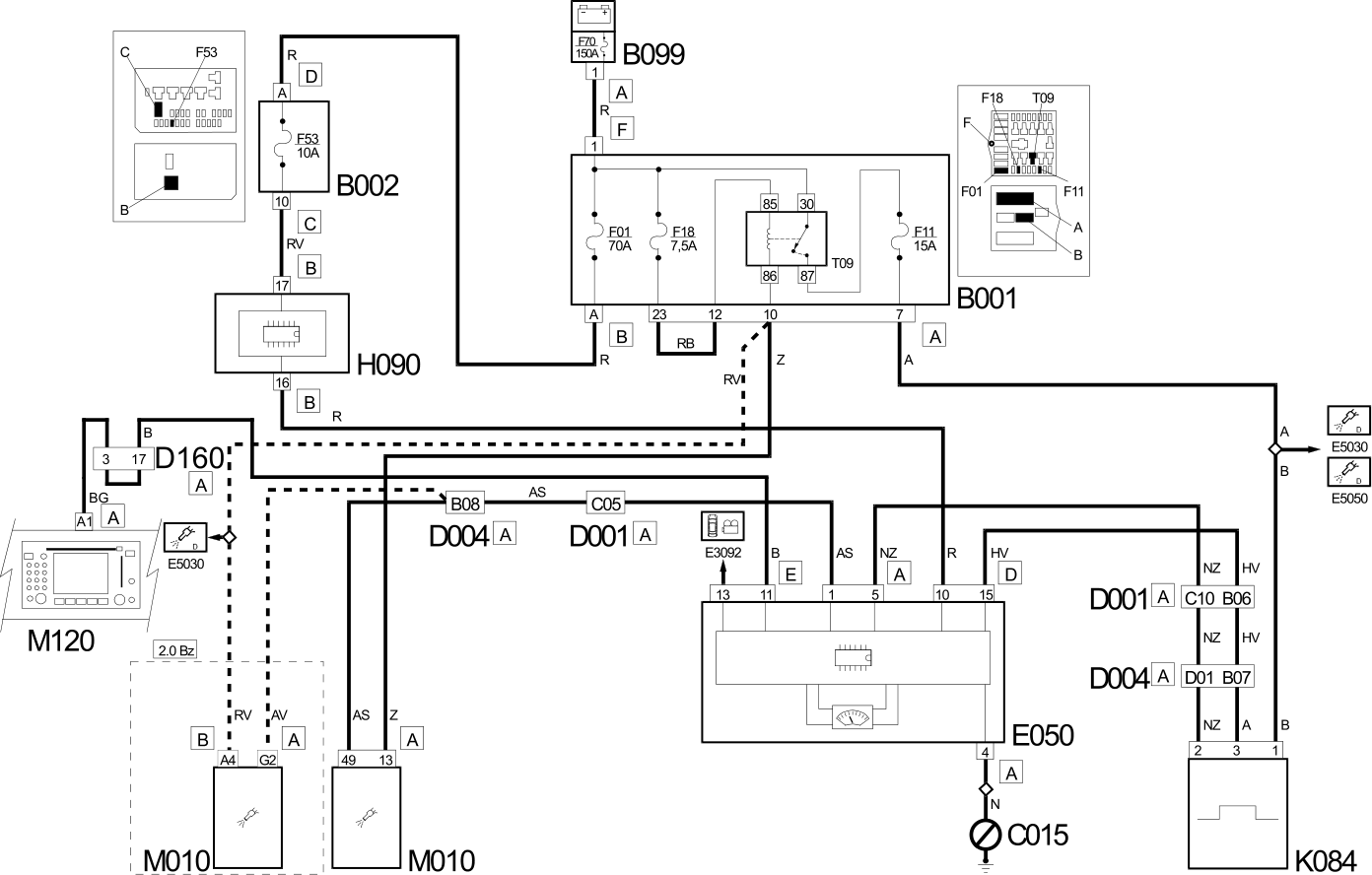

Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | JUNCTION UNIT | 5505A |
| B002 | JUNCTION UNIT UNDER DASHBOARD | |
| B099 | MAXI FUSE BOX ON BATTERY | |
| C015 | DASHBOARD EARTH, DRIVER'S SIDE | |
| D001 | FRONT/DASHBOARD COUPLING | |
| D004 | FRONT/ENGINE COUPLING | |
| D160 | DASHBOARD/OPTIONAL DASHBOARD COUPLING | |
| E050 | INSTRUMENT PANEL | 5560B |
| H090 | SWITCH CONTROL PANEL | 5505A |
| K084 | SPEEDOMETER SENSOR | |
| M010 | ENGINE MANAGEMENT ECU | |
| M120 | Connect front panel |

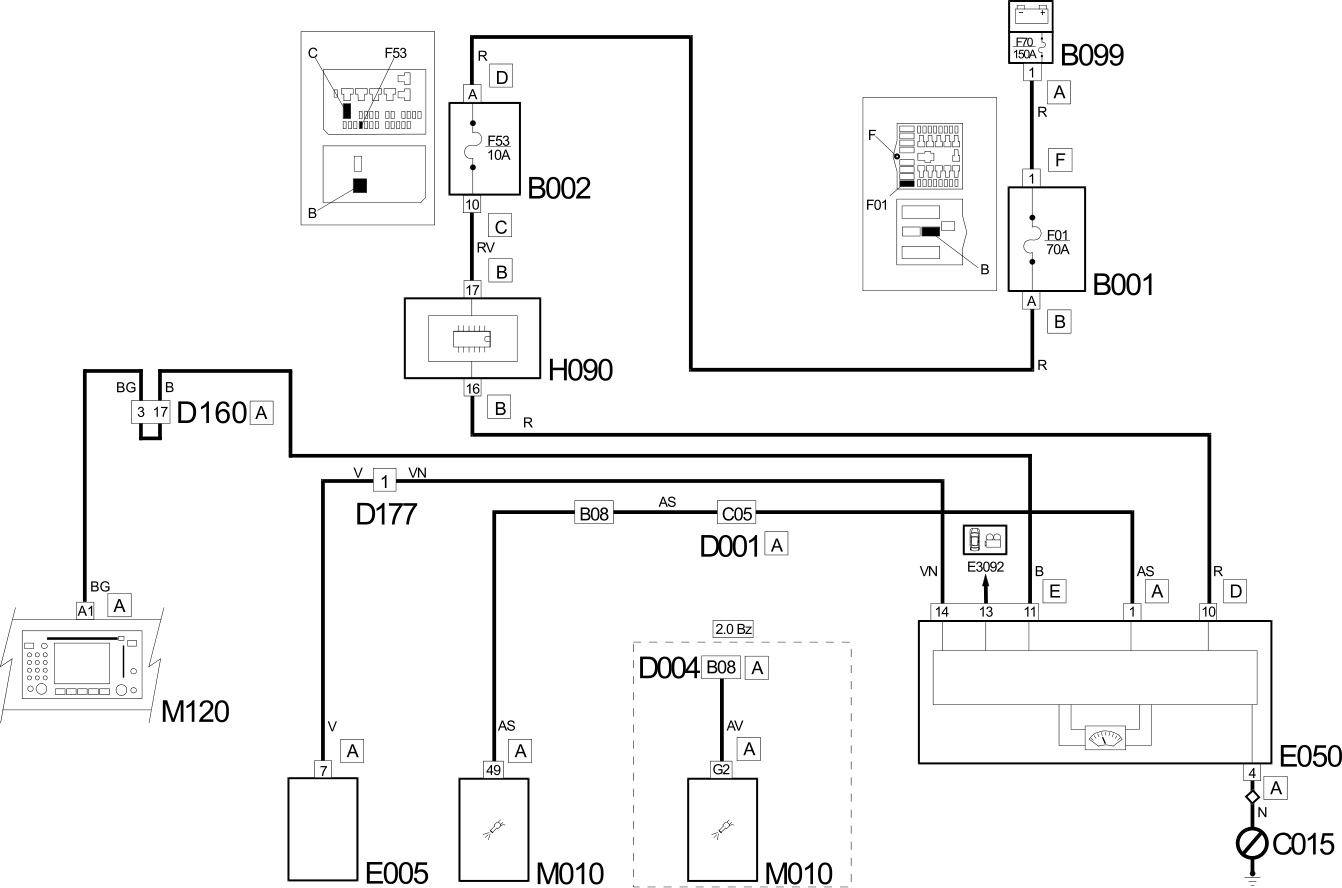

Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | JUNCTION UNIT | 5505A |
| B002 | JUNCTION UNIT UNDER DASHBOARD | |
| B099 | MAXI FUSE BOX ON BATTERY | |
| C015 | DASHBOARD EARTH, DRIVER'S SIDE | |
| D001 | FRONT/DASHBOARD COUPLING | |
| D004 | FRONT/ENGINE COUPLING | |
| D160 | DASHBOARD/OPTIONAL DASHBOARD COUPLING | |
| D177 | DASHBOARD/TACHOGRAPH COUPLING | |
| E005 | TACHOGRAPH | 5560C |
| E050 | INSTRUMENT PANEL | 5560B |
| H090 | SWITCH CONTROL PANEL | 5505A |
| M010 | ENGINE MANAGEMENT ECU | |
| M120 | Connect front panel |
