R.R. BONNET

Operation 7210E20 · EXTERNAL PARTS

Removing

- Open the bonnet.

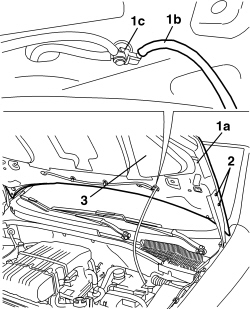

1. Support the bonnet (1a) and disconnect the pipe (1b) from the three-way connector (1c).

2. Working on both sides of the vehicle, undo the hinge fixing bolts.

3. Remove the bonnet lid.

Refitting

- Check that the bonnet lid and the hinges are not damaged.

- Position the bonnet lid.

- Screw in the bolts for the hinges without tightening them.

Op. 7025A10 BONNET LID - ALIGNMENT

- Connect the pipe to the three-way connector.
