R.R. FRONT WING

Operation 7210E18 · EXTERNAL PARTS

Removing

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

- Or, alternatively

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7210E10 R.R. FRONT BUMPER

- Raise the bonnet lid.

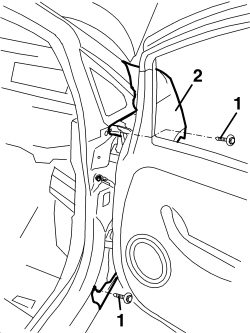

1. Protect the corner of the door (1a), the underdoor area (1b) and the base of the front pillar (1c) by applying adhesive tape.

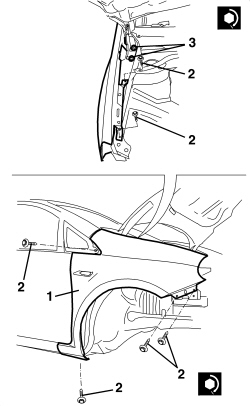

2. Loosen bolts (2a) securing hinge (2b).

3. Loosen the wing bolts.

- Open the front side door.

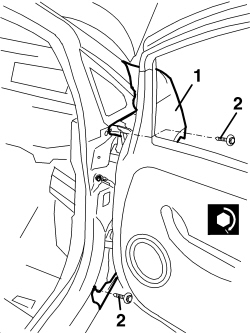

1. Undo the last two wing bolts.

2. Remove the wing.

Refitting

- Check that the wing is not damaged.

1. Position the wing and screw in the bolts without tightening them.

- Check the alignment of the wing with the door and the bonnet lid.

2. Tighten the wing bolts.

3. Undo the bolts securing the hinges.
