R.R. REAR BUMPER

Operation 7210E66 · EXTERNAL PARTS

Removing

Op. 7055B44 LEFT REAR WHEEL ARCH LINER - R.R

Op. 7055B45 RIGHT REAR WHEEL ARCH LINER - R.R

Op. 5540A94 (ONE) NUMBER PLATE LIGHT - R.R.

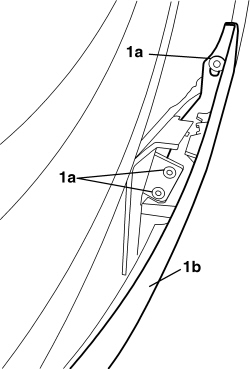

1. Working in both rear wheel arches, unscrew bolts (1a) securing the bumper upper edges (1b).

1. Disconnect the electrical connection (1a) for the rear fog lamp (1b).

1. Disconnect the electrical connection (1a) for the reversing light (1b).

1. Undo the lower bolts.

2. Disconnect the electrical connection for the parking sensors.

- Lower the vehicle and open the tailgate.

1. Loosen the upper bolts.

2. Remove the bumper.

- If necessary, strip the bumper.

Op. 7205E66 STRIPPING REAR BUMPER

Refitting

- Check that the rear bumper is not damaged.

1. Refit bumper (1a), inserting ridges (1b) into the grooves (1c) on the vehicle and check the alignment.

- Tighten the upper bolts.

- Close the tailgate the raise the vehicle.

- Connect the electrical connections.

- Tighten the lower bolts.

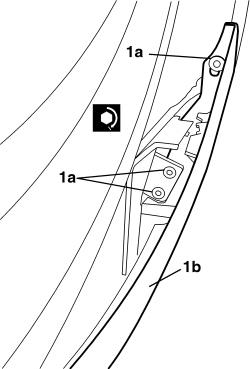

1. Working in both rear wheel arches, bolts bolts (1a) securing the bumper upper edges (1b).

Op. 5540A94 (ONE) NUMBER PLATE LIGHT - R.R.

Op. 7055B45 RIGHT REAR WHEEL ARCH LINER - R.R

Op. 7055B44 LEFT REAR WHEEL ARCH LINER - R.R
