R.r front crossmember

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Removing-refitting › R.r front crossmember

Body panels and frameR.r front crossmember

R.R FRONT CROSSMEMBER

Operation 7210A18 · STRUCTURAL ELEMENTS (FRONT PART)

Removing

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 7210E10 R.R. FRONT BUMPER

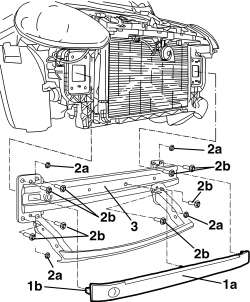

1. If necessary, remove buffer (1a) by undoing connectors (1b).

2. Unscrew nuts (2a) and bolts (2b).

3. Remove the sacrificial crossmember.

Refitting

- Check that the crossmember is not damaged.

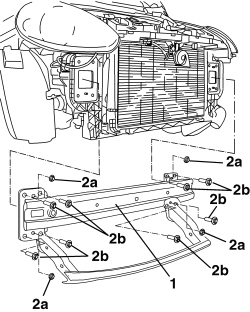

1. Remove the crossmember.

2. Unscrew nuts (2a) and bolts (2b).

Component	Fastening	dia	Value (daNm)	Validity
Front crossmember	Nut	M6	0.4 ÷ 0.6

Component	Fastening	dia	Value (daNm)	Validity
Front crossmember	Bolt	M10x1.5x28.5	3.2 ÷ 3.8

- If the buffer has been removed, position in its seat and do up the fastenings.

Op. 7210E10 R.R. FRONT BUMPER

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.
