00 Introduction and technical dataCharacteristics

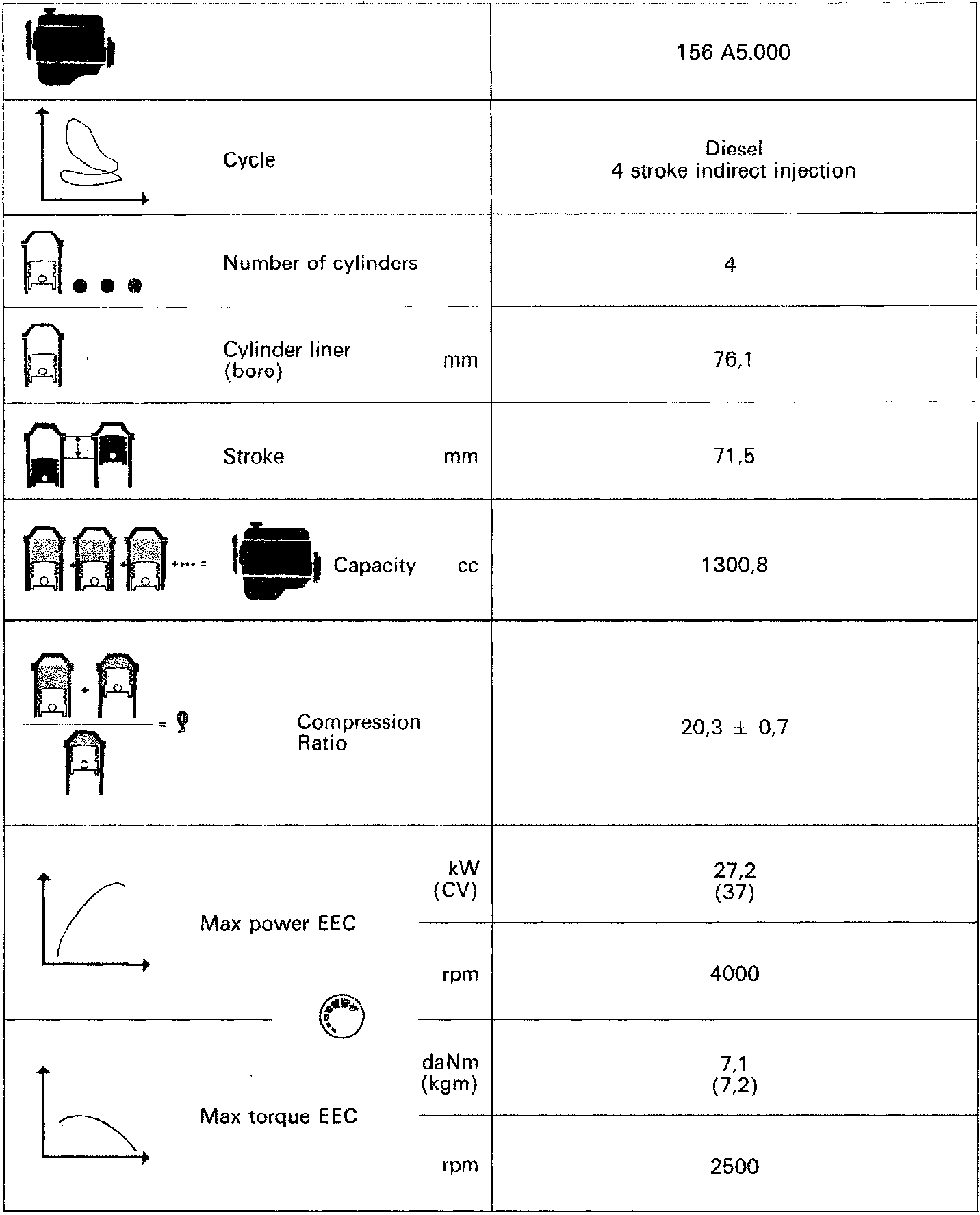

CHARACTERISTICS
|
156 A5.000 |
| Cycle | Diesel 4 stroke indirect injection |
| Number of cylinders | 4 |
| Cylinder liner (bore) | mm 76,1 |
| Stroke | mm 71,5 |
| Capacity | cc 1300,8 |
| Compression Ratio | 20,3 ± 0,7 |
| Max power EEC | kW (CV) 27,2 (37) |
| rpm 4000 |
|
| Max torque EEC | daNm (kgm) 7,1 (7,2) |
| rpm 2500 |
