Description
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Technical data (Panda D) › Description
00 Introduction and technical dataDescription · page 1 of 5

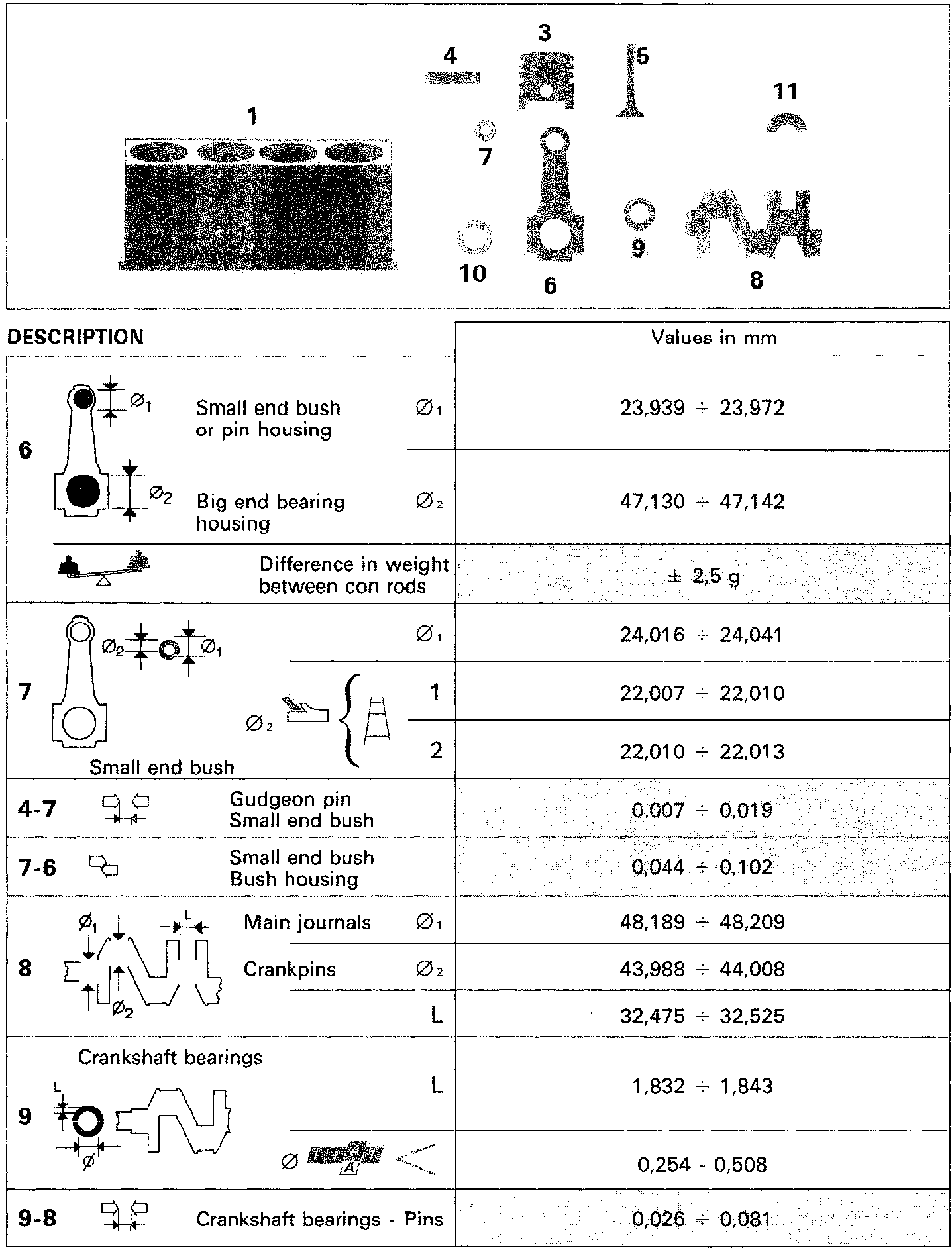

DESCRIPTION
| DESCRIPTION | Values in mm |
|---|---|
| 6 Small end bush or pin housing Big end bearing housing | Ø1 23,939 ÷ 23,972 Ø2 47,130 ÷ 47,142 |
| Difference in weight between con rods ± 2,5 g | |
| 7 Small end bush | Ø1 24,016 ÷ 24,041 |
| Ø2 1 22,007 ÷ 22,010 | |
| 2 22,010 ÷ 22,013 | |
| 4-7 Gudgeon pin / Small end bush | 0,007 ÷ 0,019 |
| 7-6 Small end bush / Bush housing | 0,044 ÷ 0,102 |
| 8 Main journals / Crankpins | Ø1 48,189 ÷ 48,209 |
| Ø2 43,988 ÷ 44,008 | |
| L 32,475 ÷ 32,525 | |
| 9 Crankshaft bearings | L 1,832 ÷ 1,843 |
| Ø 0,254 - 0,508 | |
| 9-8 Crankshaft bearings - Pins | 0,026 ÷ 0,081 |
