Technical data (Panda D) › Wheel geometry

00 Introduction and technical dataWheel geometry

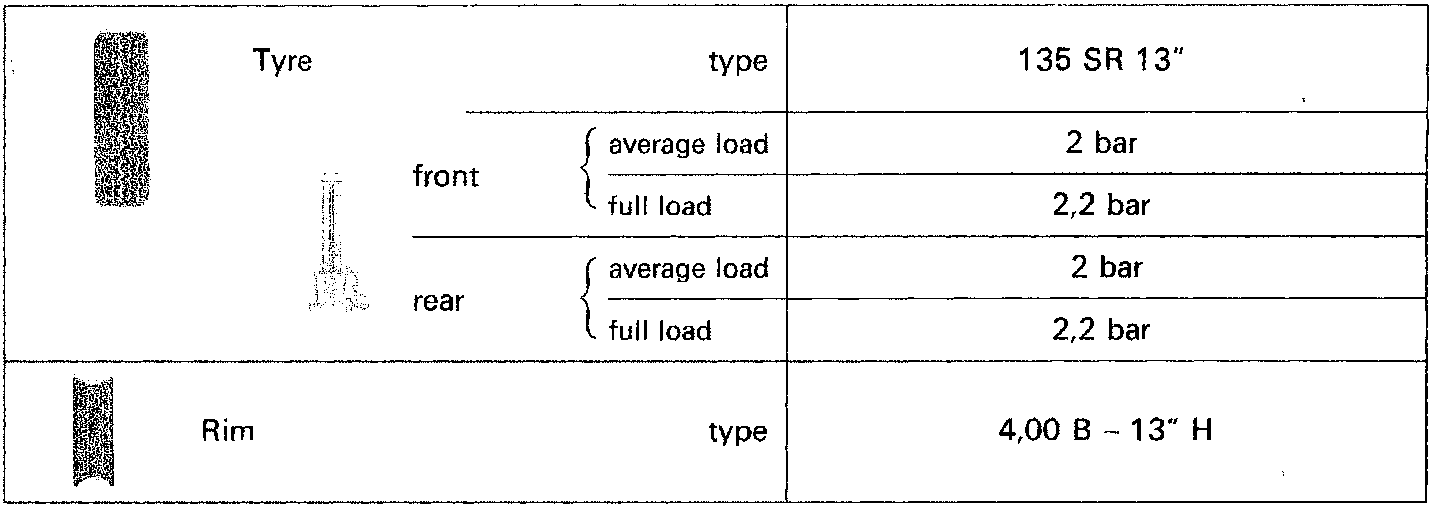

Tyre			type	135 SR 13"
		front	average load	2 bar
			full load	2,2 bar
		rear	average load	2 bar
			full load	2,2 bar
Rim		type	4,00 B – 13" H

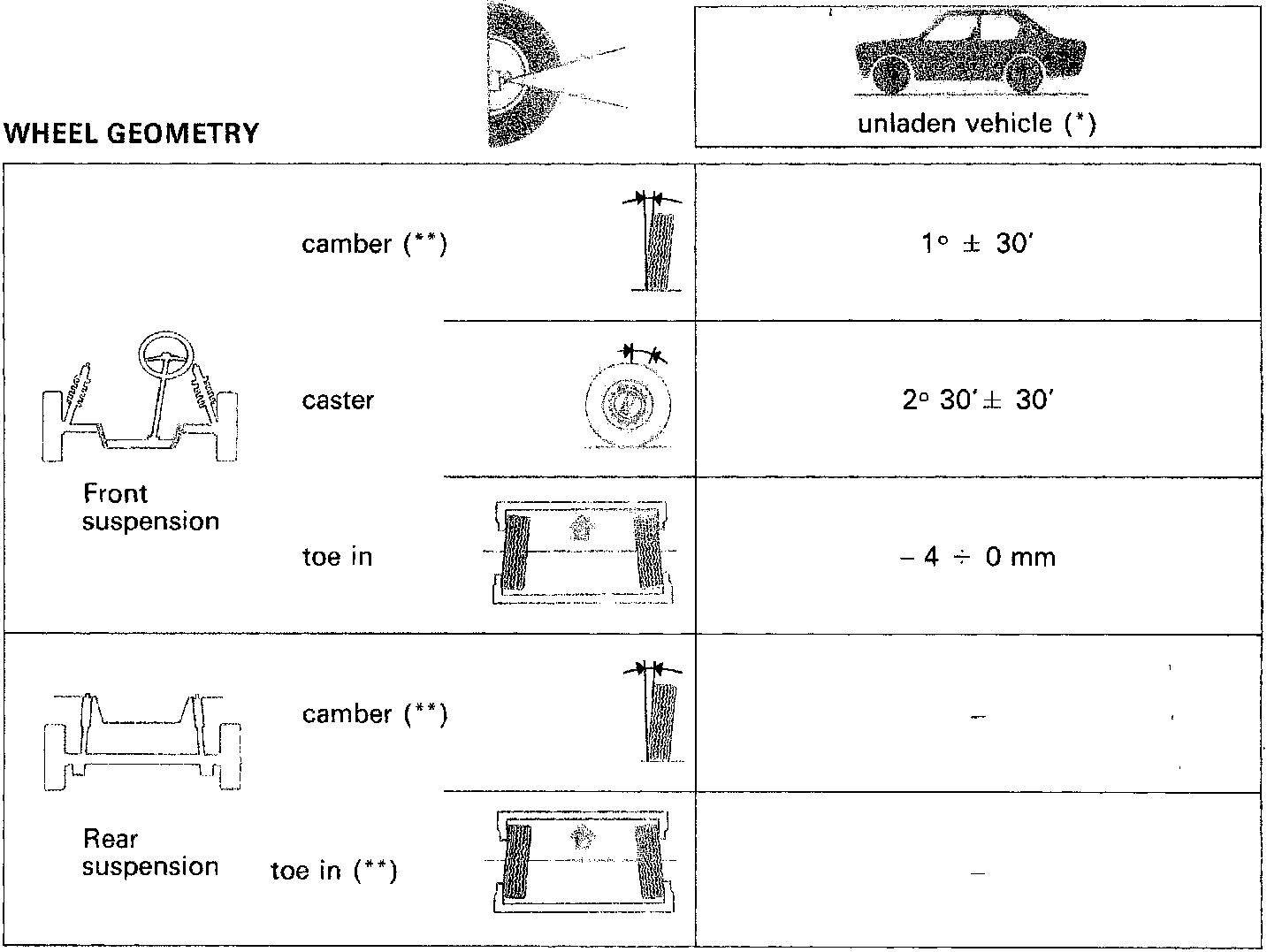

WHEEL GEOMETRY

unladen vehicle (*)
		camber (**)	1° ± 30'
		caster toe in	2° 30' ± 30'
			– 4 ÷ 0 mm
Front suspension		camber (**)	–
		toe in (**)	–

(*) With tyres inflated to correct pressure and vehicle in running order

(**) Angles cannot be adjusted
