Differential
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Technical data (Panda D) › Differential
00 Introduction and technical dataDifferential · page 1 of 2

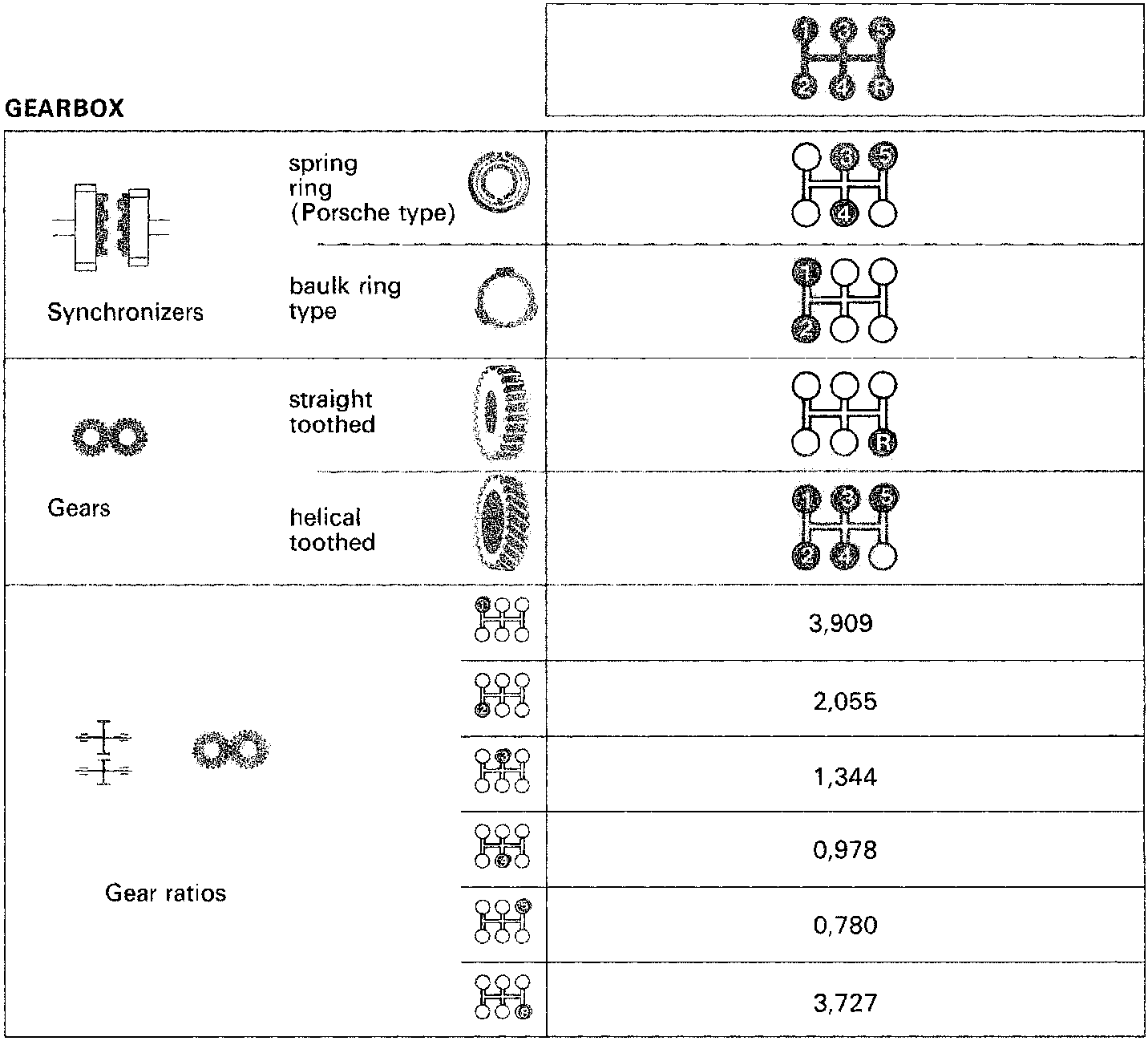

| Synchronizers | spring ring (Porsche type) |
|
|---|---|---|
| baulk ring type | ||
| Gears | straight toothed | |
| helical toothed | ||
| Gear ratios | 1st | 3,909 |
| 2nd | 2,055 | |
| 3rd | 1,344 | |
| 4th | 0,978 | |
| 5th | 0,780 | |
| R | 3,727 |

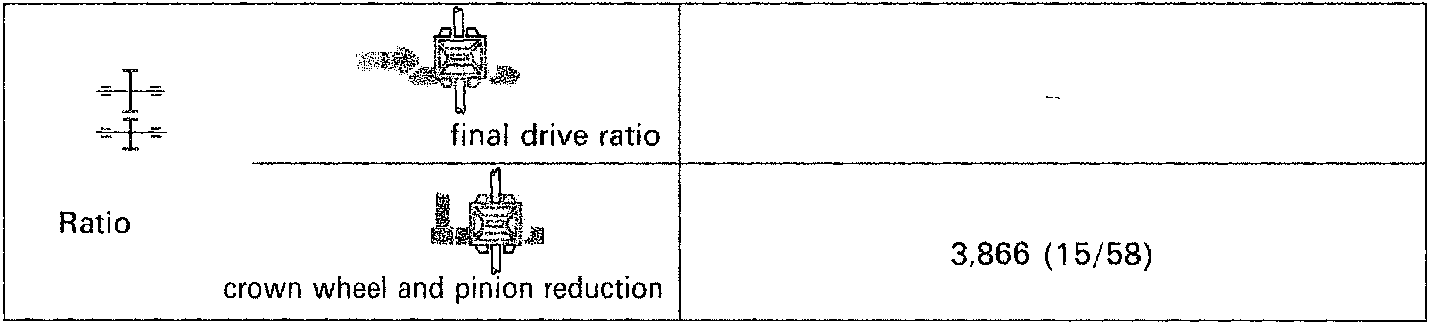

DIFFERENTIAL
| Ratio | final drive ratio | - |
|---|---|---|
| crown wheel and pinion reduction | 3,866 (15/58) |
