Electrical equipment

STARTER MOTOR	Lucas Ø 90 - 12 V – 1,4 kW
ALTERNATOR	M. Marelli AA 125 R – 14 V – 55 A
VOLTAGE REGULATOR	Built in electronic M. Marelli RTT 119 A
BATTERY	50 Ah - 12 V - 250 A
HEATER PLUGS CONTROL UNIT	Bitron 2044021
HEATER PLUGS	M. Marelli UX 2 A Bosch 0.250.201.005

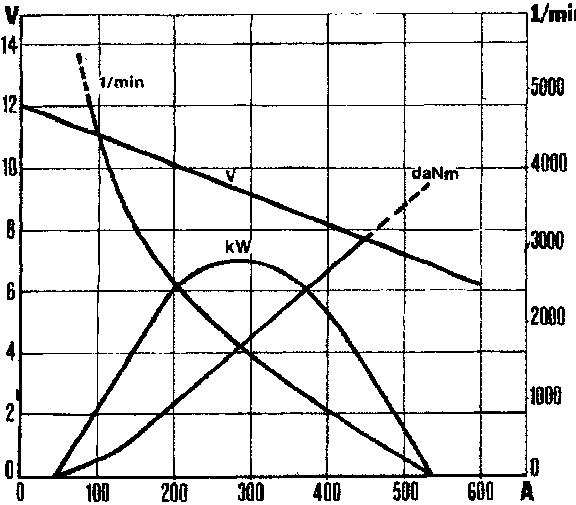

STARTER MOTOR
TYPICAL CURVES

Lucas Ø 90 - 12 V – 1,4 kW

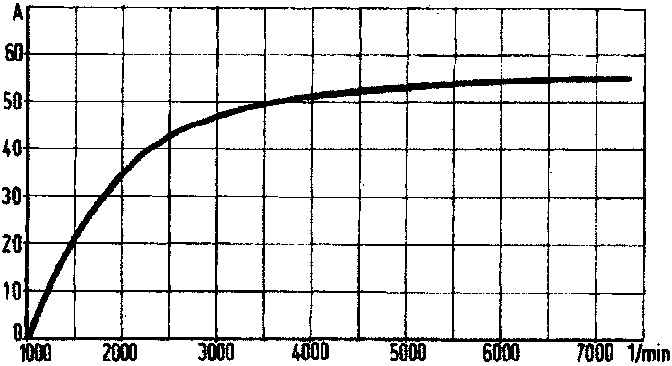

ALTERNATOR
TYPICAL OUTPUT CURVE (at a constant vol-
tage of 13.5 V with bedded in brushes)

M. Marelli AA 125 R – 14 V – 55 A
