00 Introduction and technical dataFuel system · page 1 of 3

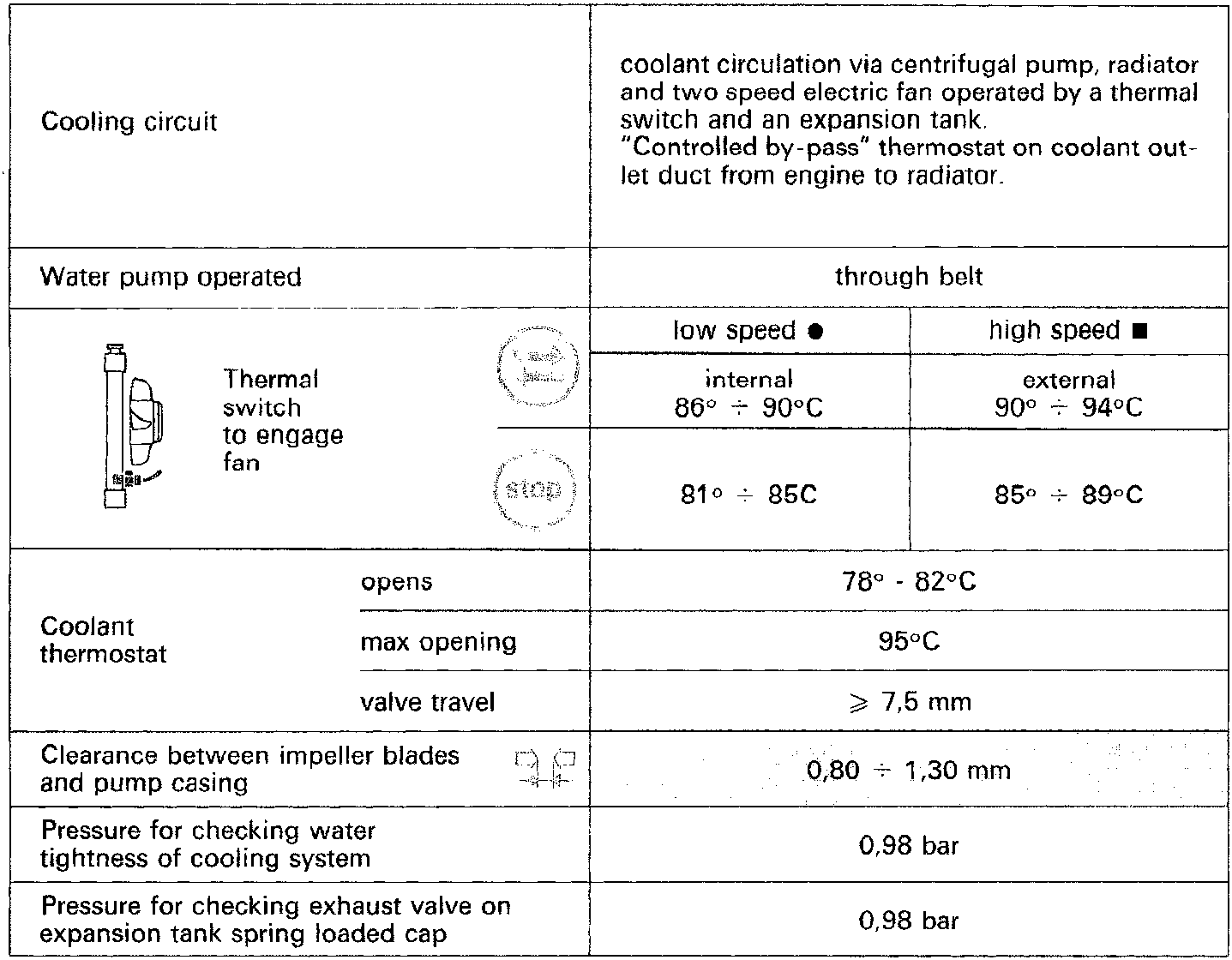

● direct engagement ■ engagement via relay
FUEL SYSTEM
| Rotary piston injection pump: type | BOSCH VE 4/8 F 2000 R 61 | |||
|---|---|---|---|---|
| Injector: type | BOSCH 0432217139 | |||
| Nozzle holder: type | BOSCH KCA 30 S 41 | |||
| Nozzle: type | BOSCH DN 12 SD 1750 | |||
| Injector calibration pressure | 8888 | 125 ÷ 133 | ||
| Injection pump timing: – with cylinder no. 1 piston at T.D.C. (compression stroke) | mm | piston travel 0,77 | ||
| Engine idle speed | rpm | 750 ÷ 800 | ||
| Maximum engine speed with no load | rpm | 4360 ÷ 4440 | ||
