00 Introduction and technical dataTiming diagram · page 3 of 3

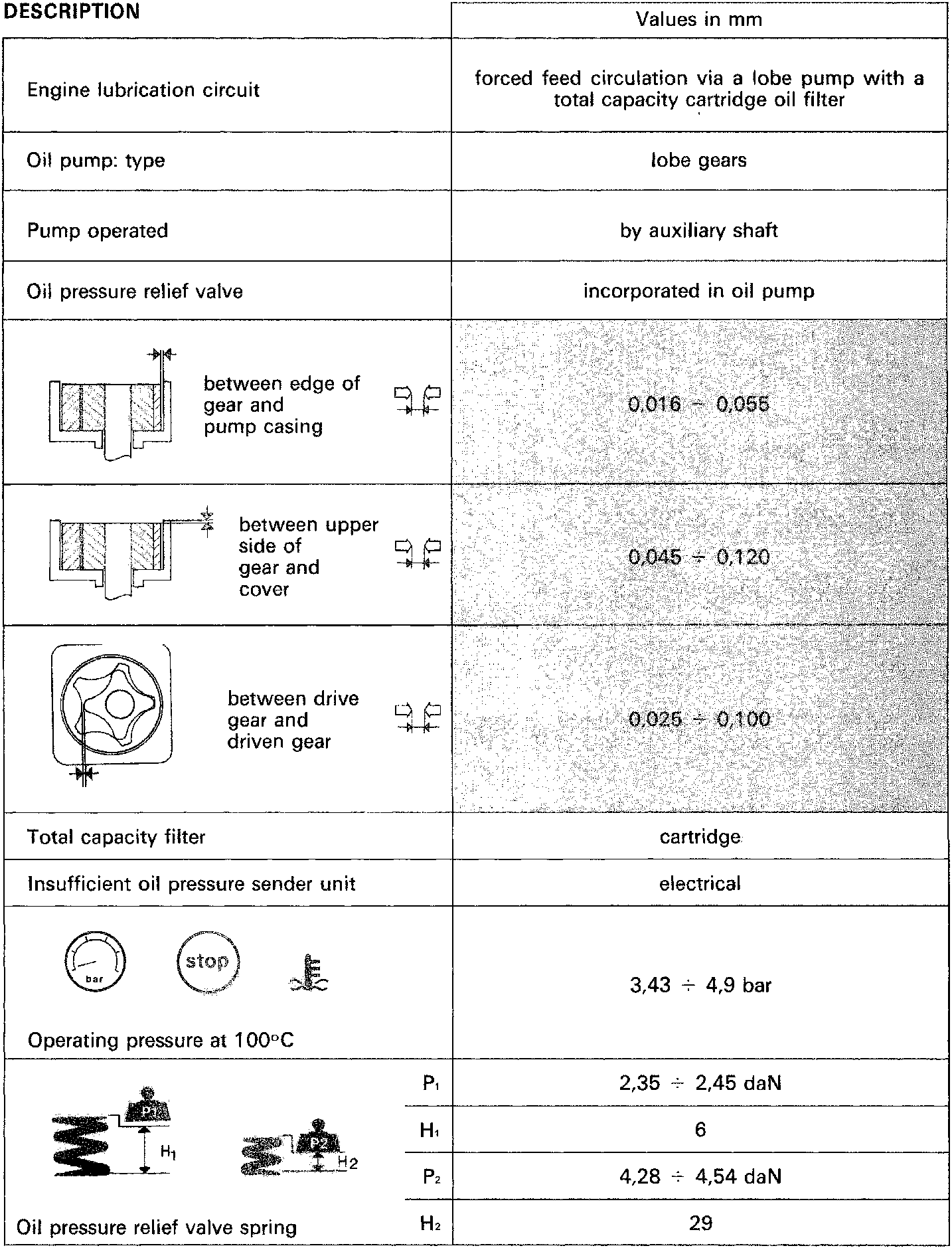

| DESCRIPTION | Values in mm | |
|---|---|---|
| Engine lubrication circuit | forced feed circulation via a lobe pump with a total capacity cartridge oil filter | |
| Oil pump: type | lobe gears | |
| Pump operated | by auxiliary shaft | |
| Oil pressure relief valve | incorporated in oil pump | |
between edge of gear and pump casing |
0,016 ÷ 0,055 | |
between upper side of gear and cover |
0,045 ÷ 0,120 | |
between drive gear and driven gear |
0,025 ÷ 0,100 | |
| Total capacity filter | cartridge | |
| Insufficient oil pressure sender unit | electrical | |
Operating pressure at 100°C |
3,43 ÷ 4,9 bar | |
Oil pressure relief valve spring |
P₁ | 2,35 ÷ 2,45 daN |
| H₁ | 6 | |
| P₂ | 4,28 ÷ 4,54 daN | |
| H₂ | 29 |
