00 Introduction and technical dataTiming diagram · page 2 of 3

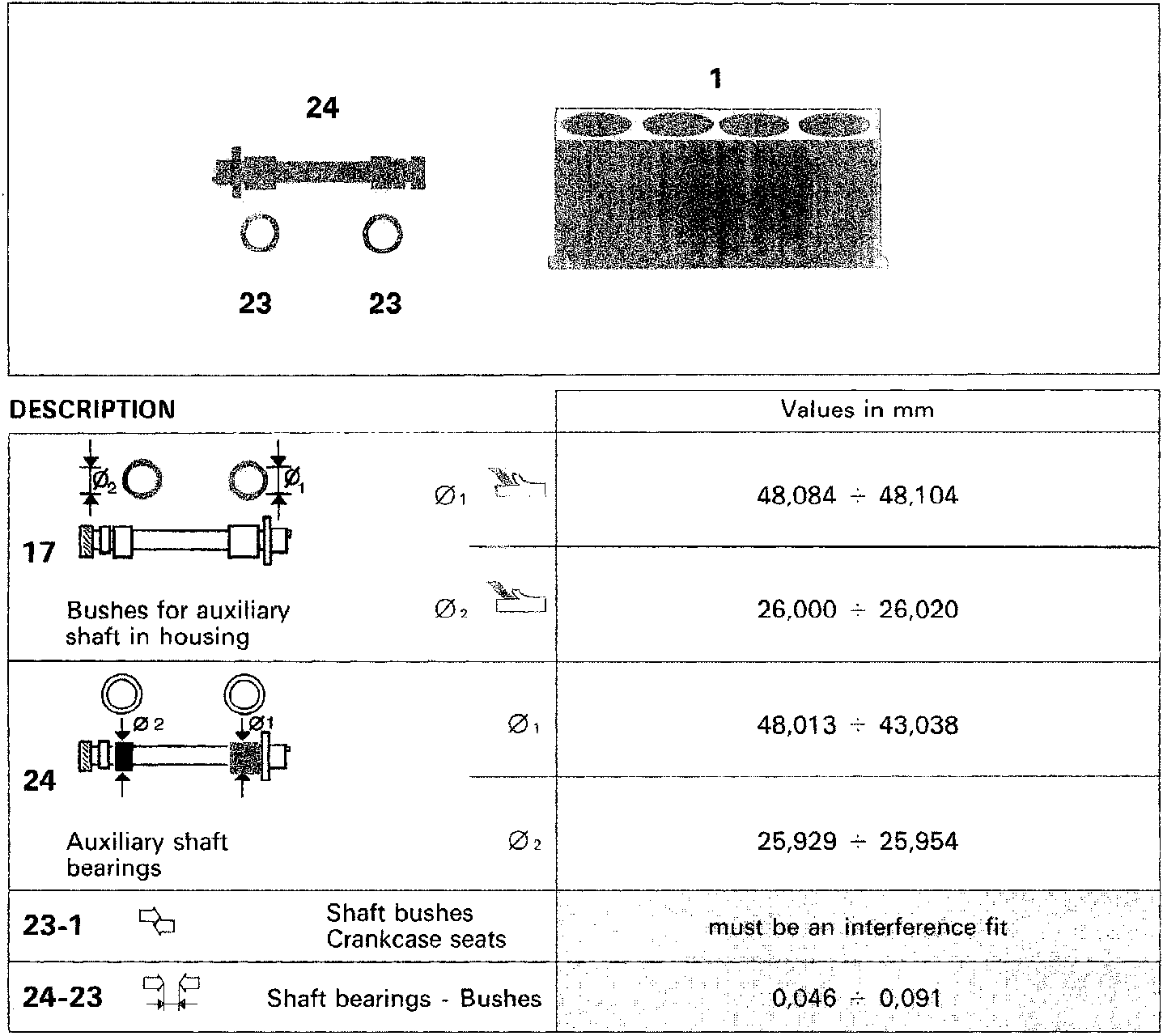

| DESCRIPTION | Values in mm | |
|---|---|---|
| 17 Bushes for auxiliary shaft in housing |
Ø1 | 48,084 ÷ 48,104 |
| Ø2 | 26,000 ÷ 26,020 | |
| 24 Auxiliary shaft bearings |
Ø1 | 48,013 ÷ 43,038 |
| Ø2 | 25,929 ÷ 25,954 | |
| 23-1 Shaft bushes Crankcase seats |
must be an interference fit | |
| 24-23 Shaft bearings - Bushes | 0,046 ÷ 0,091 |
