Fiat Panda (141) Factory Service Manual (1986-2003)01 · 00 Introduction and technical data
01 · General

Timing diagram

Make
Fiat
Model
Panda (141) Factory Service Manual
Year
1986–2003
Section
Technical data (Panda D) › Timing diagram
00 Introduction and technical dataTiming diagram · page 1 of 3
DESCRIPTION Values in mm
17-21a Camshaft bearing
Bush		 0,030 ÷ 0,070
21a-21b Bush
Camshaft support		 0,089 ÷ 0,152
30 Injector    Ø 19,870 ÷ 20,000
32 Ante-chamber Ø1                                                                   &...... 23,960 ÷ 24,000
Ø2                                                                   &...... 22,050 ÷ 22,100
Ø3                                         &...... 19,050 ÷ 19,100
X                                      &..... 45,900 ÷ 46,100

TIMING DIAGRAM

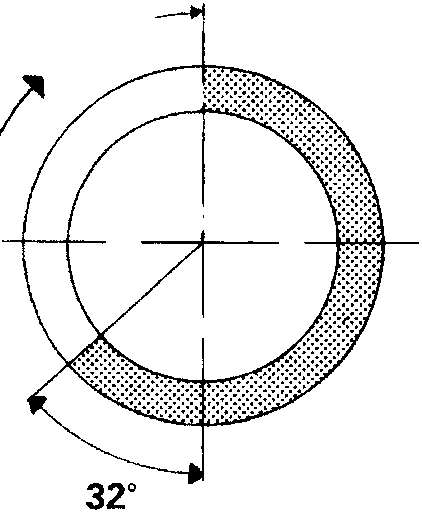

Timing diagram for the left camshaft showing a shaded sector spanning 32 degrees from the 0 degree reference point.

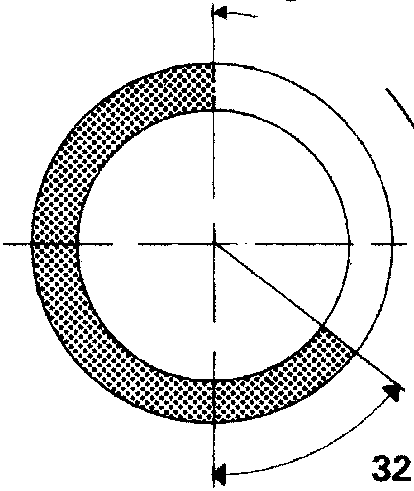

Timing diagram for the right camshaft showing a shaded sector spanning 32 degrees from the 0 degree reference point.
