Technical data (Panda D)

00 Introduction and technical dataDescription · page 5 of 5

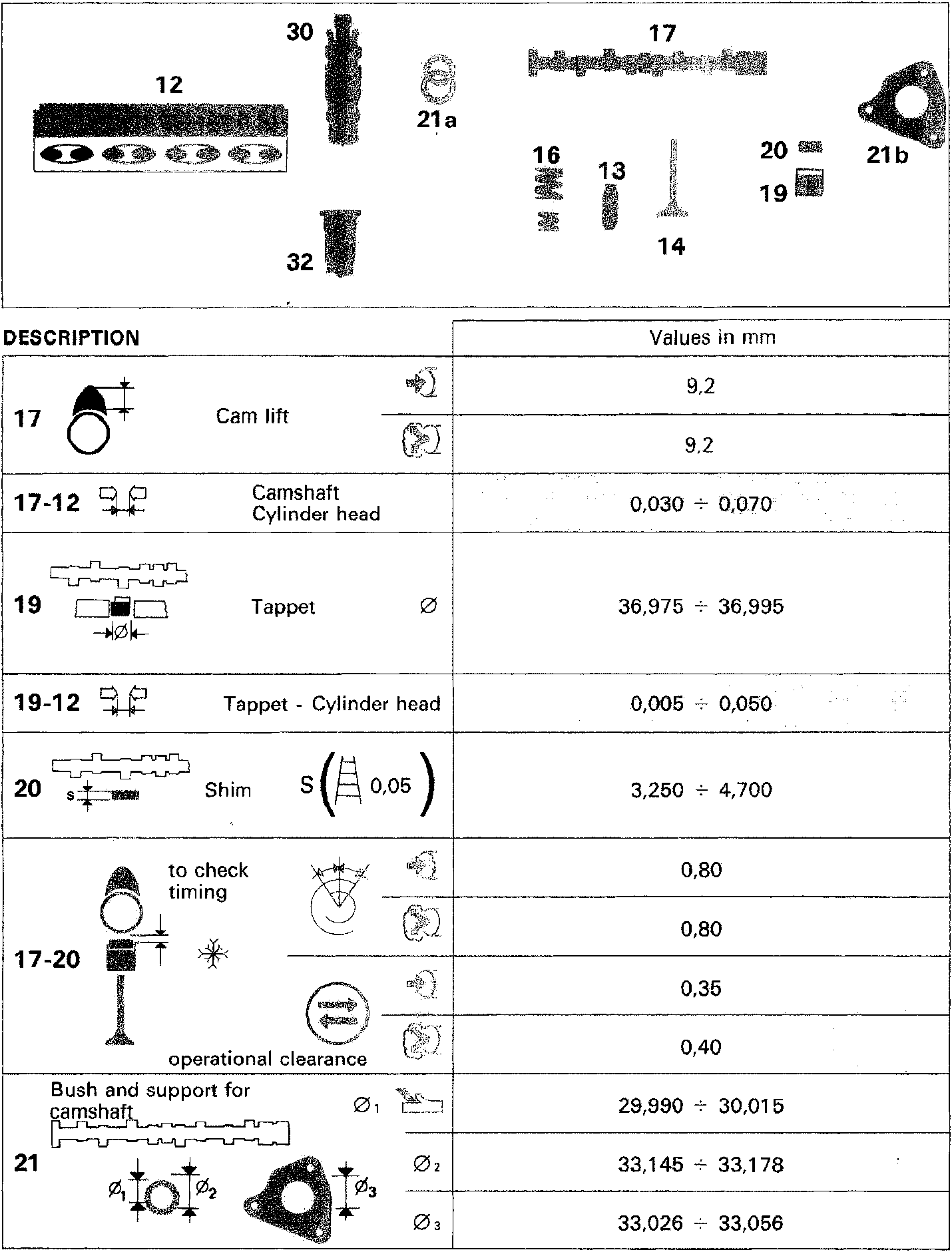

DESCRIPTION	Values in mm
17 Cam lift	9,2
	9,2
17-12 Camshaft Cylinder head	0,030 ÷ 0,070
19 Tappet Ø	36,975 ÷ 36,995
19-12 Tappet - Cylinder head	0,005 ÷ 0,050
20 Shim S(0,05)	3,250 ÷ 4,700
17-20 to check timing operational clearance	0,80
	0,80
	0,35
	0,40
21 Bush and support for camshaft Ø₁ Ø₂ Ø₃	29,990 ÷ 30,015
	33,145 ÷ 33,178
	33,026 ÷ 33,056

01 General
