Description (page 2 of 5)
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Technical data (Panda D)
00 Introduction and technical dataDescription · page 2 of 5
| DESCRIPTION | Values in mm |
|---|---|
| 10 Crankpins L Ø [A] |
1,539 ÷ 1,550 |
| 0,254 - 0,508 | |
| 10-8 Crankpins - Pins | 0,022 ÷ 0,084 |
| Thrust washers 11 S S [A] |
2,310 ÷ 2,360 |
| 0,127 | |
| 11-8 Crankshaft end float | 0,055 ÷ 0,265 |

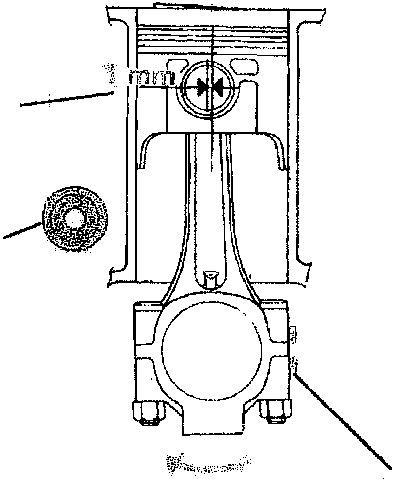

Diagram showing fitting of connecting rod-piston assembly and direction of rotation in engine
Piston offset
Auxiliary shaft
The arrow shows the direction of rotation of the engine seen from the timing side
Number of cylinder to which connecting rod belongs
