- Technical data (Panda D) › Measurements and checks
00 Introduction and technical dataMeasurements and checks · page 1 of 2

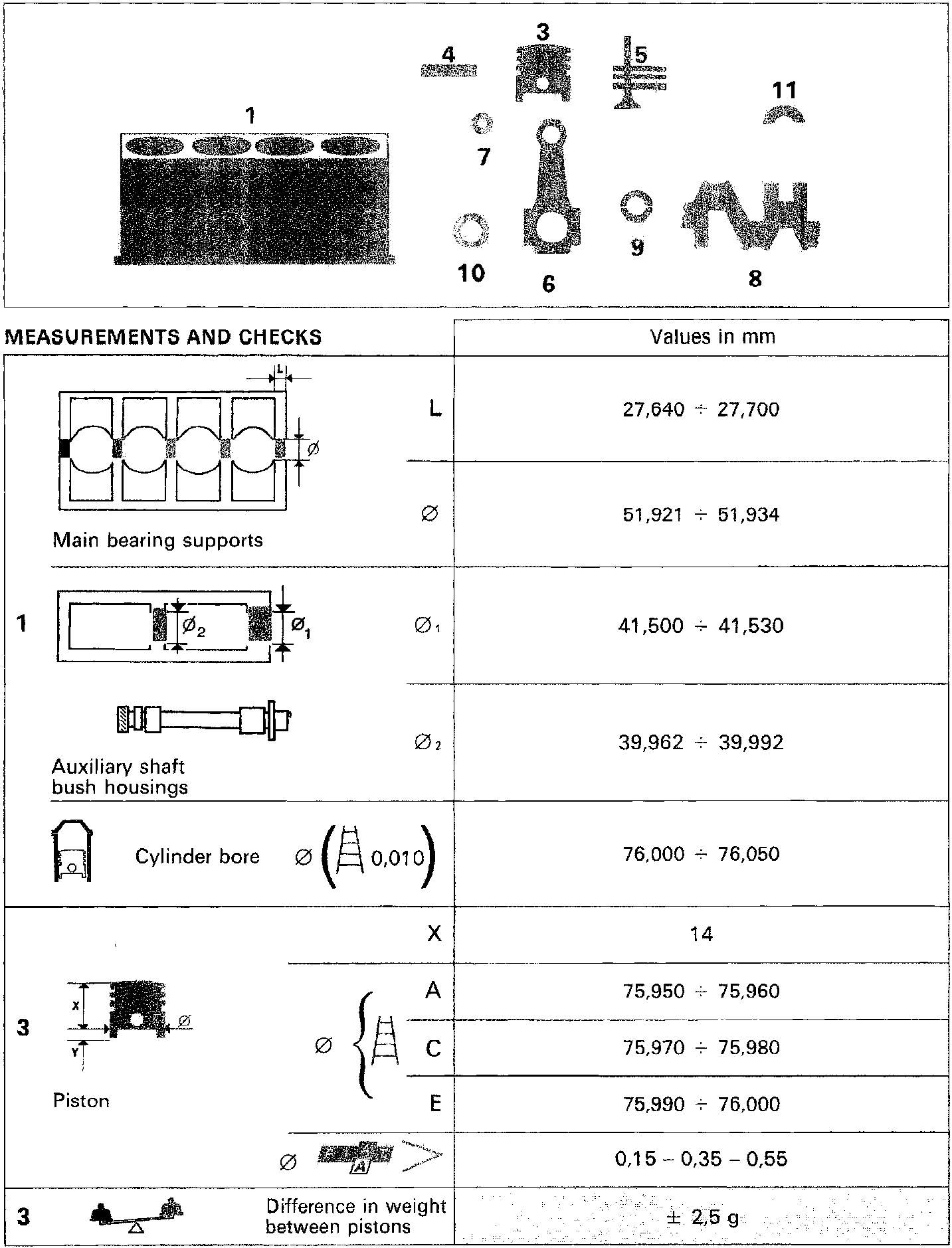

MEASUREMENTS AND CHECKS
| Values in mm | |
|---|---|
| Main bearing supports | L 27,640 ÷ 27,700 |
| Ø 51,921 ÷ 51,934 |
|
| 1 | Ø₁ 41,500 ÷ 41,530 |
| Auxiliary shaft bush housings | Ø₂ 39,962 ÷ 39,992 |
| Cylinder bore | 76,000 ÷ 76,050 |
| 3 | X 14 |
| Piston | A 75,950 ÷ 75,960 |
| C 75,970 ÷ 75,980 |
|
| E 75,990 ÷ 76,000 |
|
| 0,15 – 0,35 – 0,55 | |
| 3 | Difference in weight between pistons ± 2,5 g |
