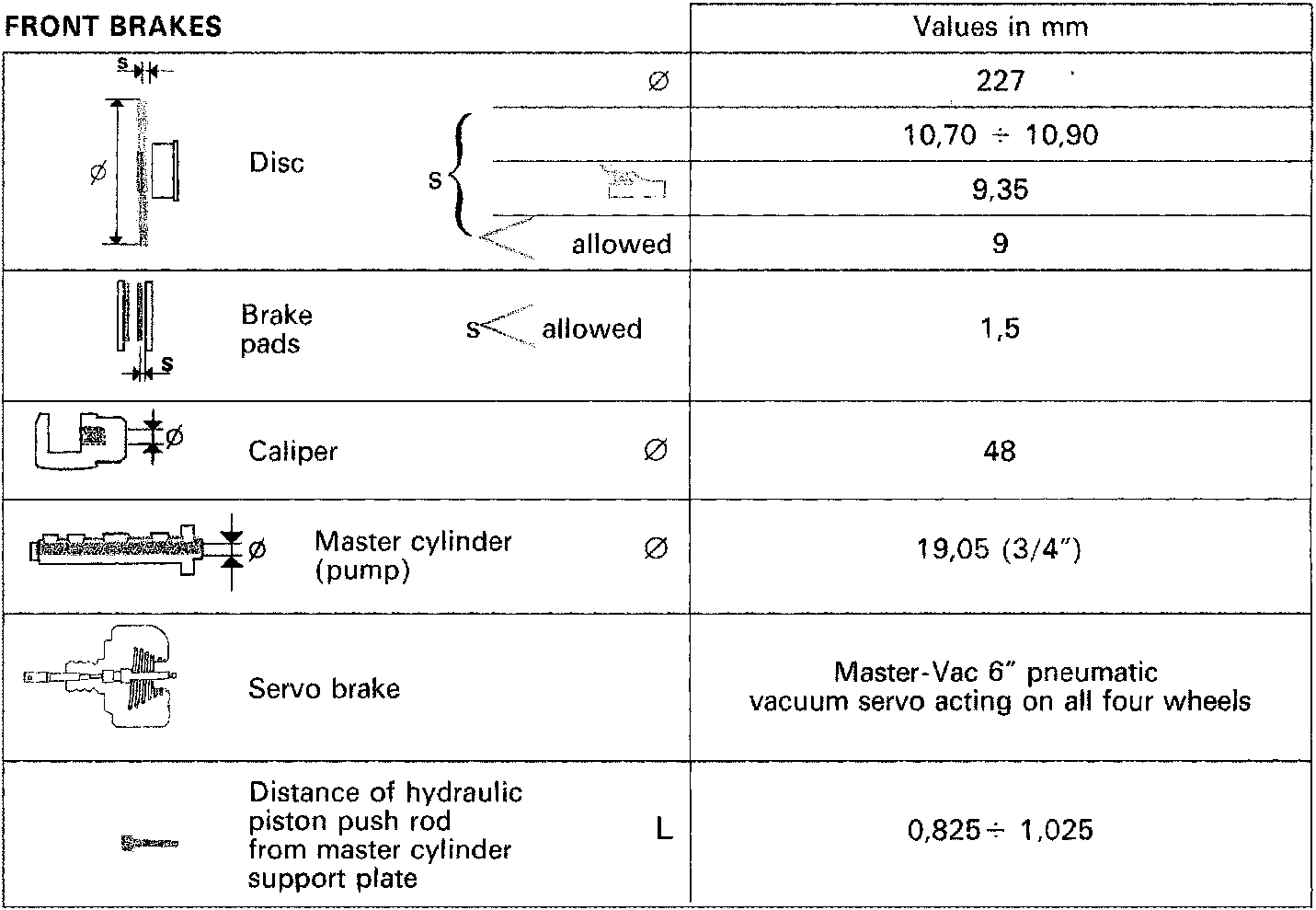

FRONT BRAKES

		Values in mm
[diagram of Disc]	Disc	Ø 227
		s {	10,70 ÷ 10,90
			9,35
			allowed 9
[diagram of Brake pads]	Brake pads s < allowed	1,5
[diagram of Caliper]	Caliper Ø	48
[diagram of Master cylinder]	Master cylinder (pump) Ø	19,05 (3/4")
[diagram of Servo brake]	Servo brake	Master-Vac 6" pneumatic vacuum servo acting on all four wheels
[diagram of push rod]	Distance of hydraulic piston push rod from master cylinder support plate L	0,825 ÷ 1,025

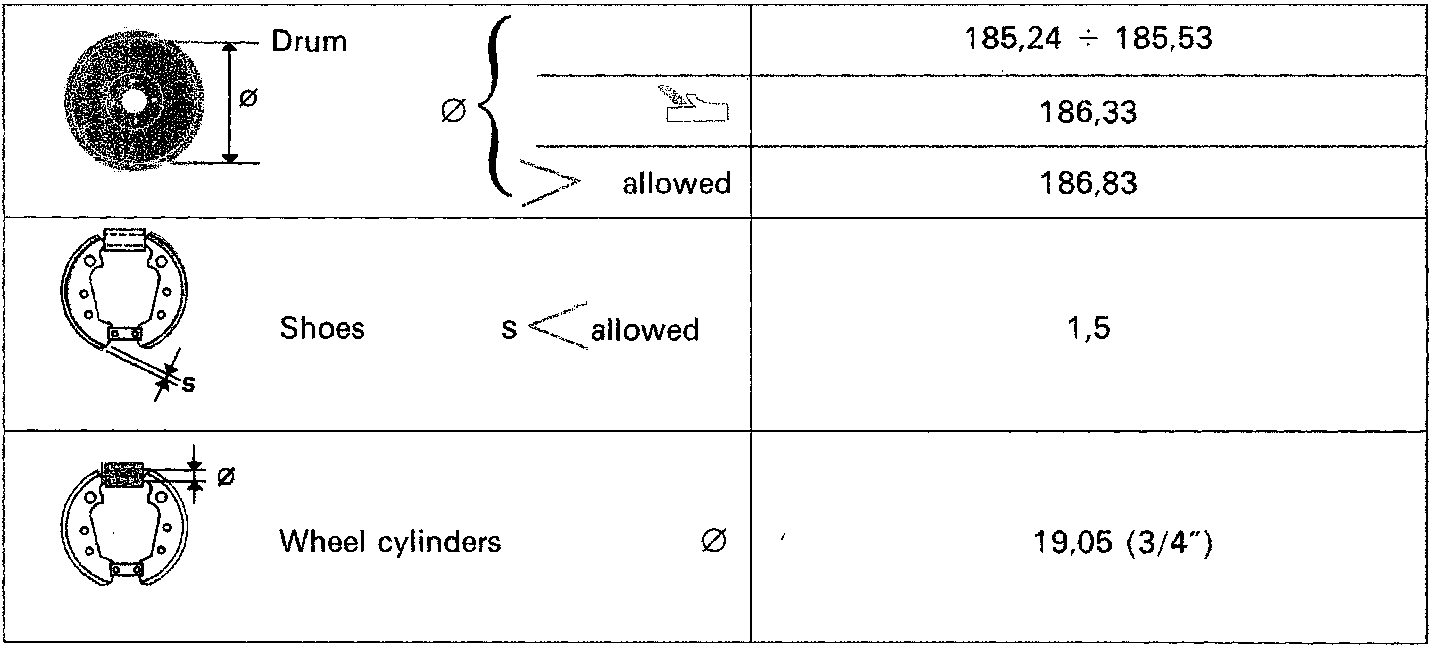

REAR BRAKES

[diagram of Drum]	Drum	185,24 ÷ 185,53
		Ø {	186,33
			allowed 186,83
[diagram of Shoes]	Shoes s < allowed	1,5
[diagram of Wheel cylinders]	Wheel cylinders Ø	19,05 (3/4")
