00 Introduction and technical dataFront brakes · page 2 of 2

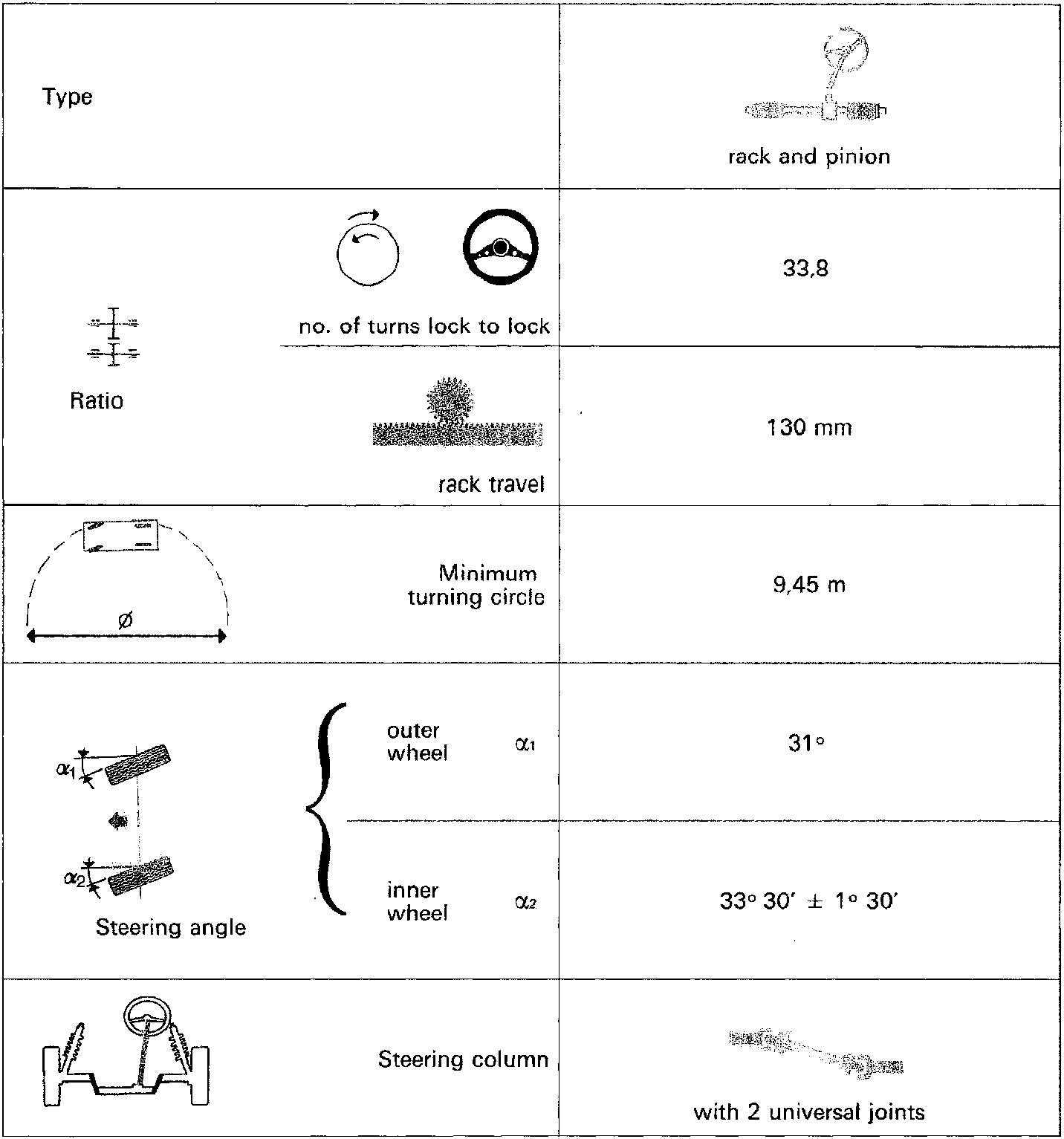

| Type |
rack and pinion |
|
| Ratio | no. of turns lock to lock | 33,8 |
| rack travel | 130 mm | |
| Minimum turning circle | 9,45 m | |
| Steering angle | outer wheel α₁ | 31° |
| inner wheel α₂ | 33° 30' ± 1° 30' | |
| Steering column | with 2 universal joints |
|
