00 Introduction and technical dataDescription · page 3 of 5

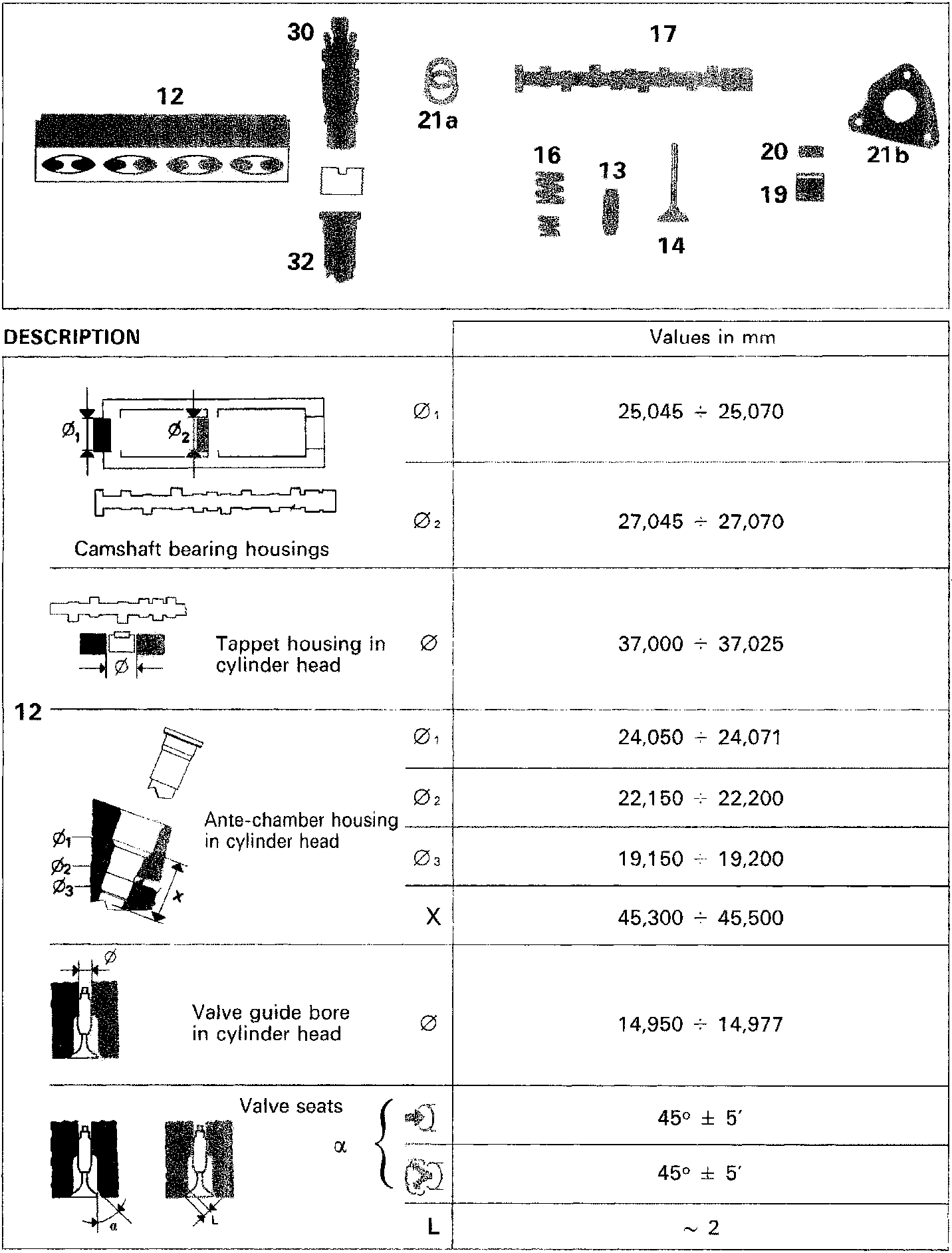

| DESCRIPTION | Values in mm | |
|---|---|---|
| Camshaft bearing housings | Ø₁ | 25,045 ÷ 25,070 |
| Ø₂ | 27,045 ÷ 27,070 | |
| Tappet housing in cylinder head | Ø | 37,000 ÷ 37,025 |
| 12 Ante-chamber housing in cylinder head |
Ø₁ | 24,050 ÷ 24,071 |
| Ø₂ | 22,150 ÷ 22,200 | |
| Ø₃ | 19,150 ÷ 19,200 | |
| X | 45,300 ÷ 45,500 | |
| Valve guide bore in cylinder head | Ø | 14,950 ÷ 14,977 |
| Valve seats α | 45° ± 5' | |
| 45° ± 5' | ||
| L | ~ 2 |
