Fuel system (page 3 of 3)
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Technical data (Panda D)
00 Introduction and technical dataFuel system · page 3 of 3

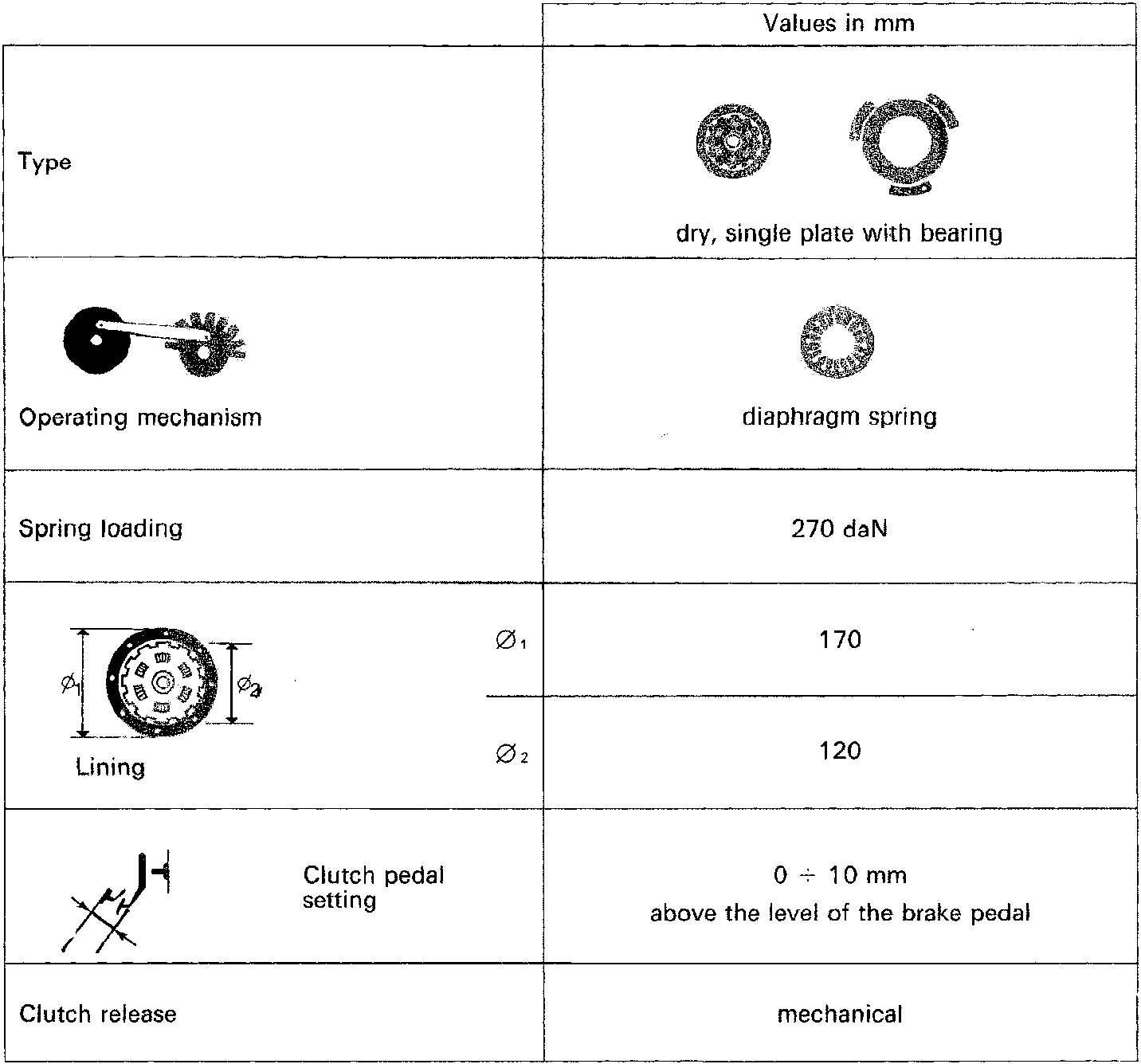

| Values in mm | ||
|---|---|---|
| Type | dry, single plate with bearing | |
| Operating mechanism | diaphragm spring | |
| Spring loading | 270 daN | |
| Lining | Ø₁ | 170 |
| Ø₂ | 120 | |
| Clutch pedal setting | 0 ÷ 10 mm above the level of the brake pedal |
|
| Clutch release | mechanical | |
