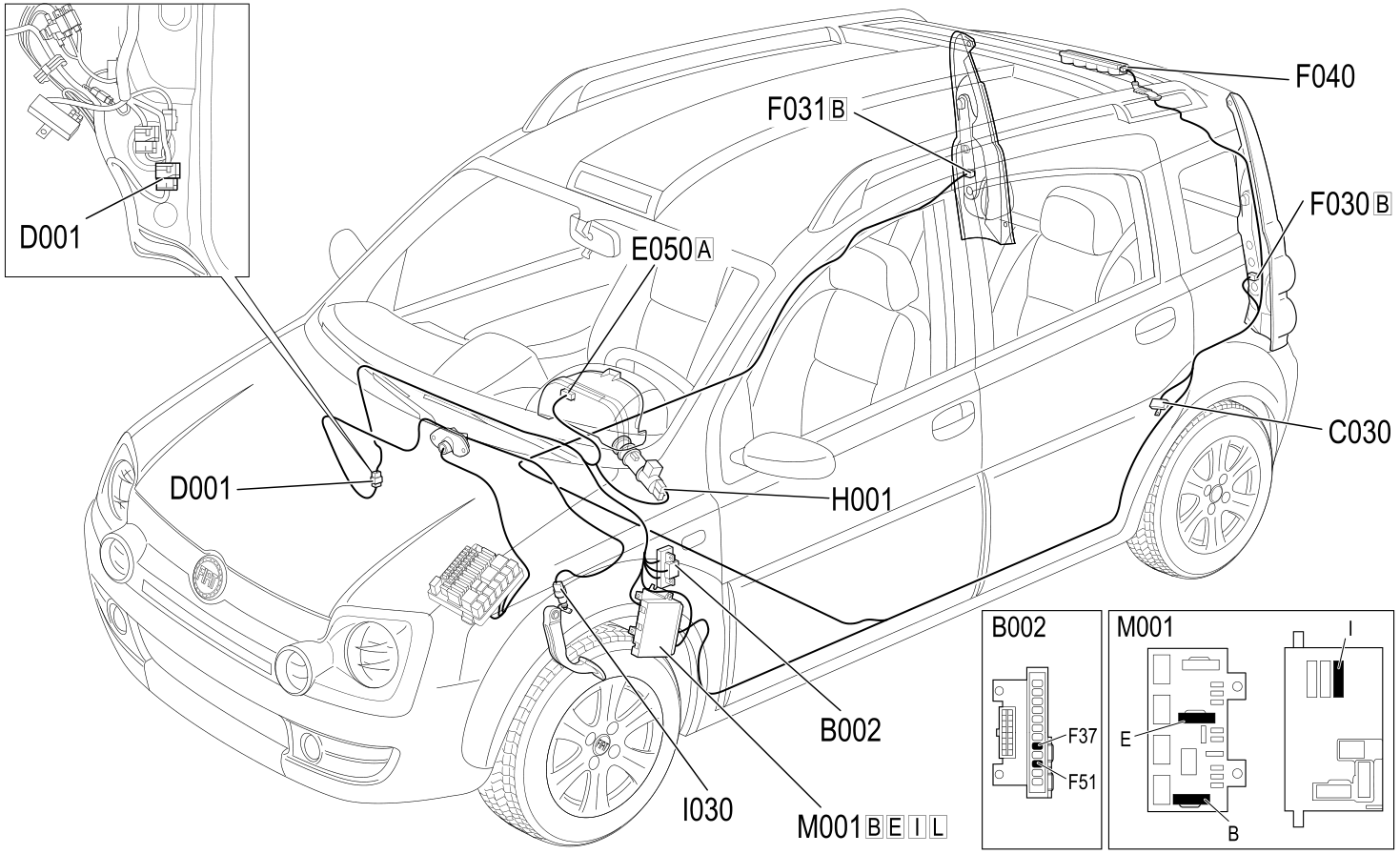

BRAKE LIGHTS - COMPONENT LOCATION
Component location
COMPONENTS
| Component code | Description | Reference to the assembly |
|---|---|---|
| B2 | Junction unit under dashboard | 5505C |
| C30 | Left rear earth | |
| D1 | Front/dashboard coupling | |
| E50 | Instrument panel | 5560B |
| F30 | Left rear light cluster | 5540A |
| F31 | Right rear light cluster | 5540A |
| F40 | Additional rear light (third brake light) | 5550D |
| H1 | Ignition switch | 5520A |
| I30 | Brake pedal switch | 5550D |
| M1 | Body computer | 5505A |
