Reversing lights - wiring diagram

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Interior lighting › Reversing lights - wiring diagram

Wiring diagrams and electrical functionsReversing lights - wiring diagram

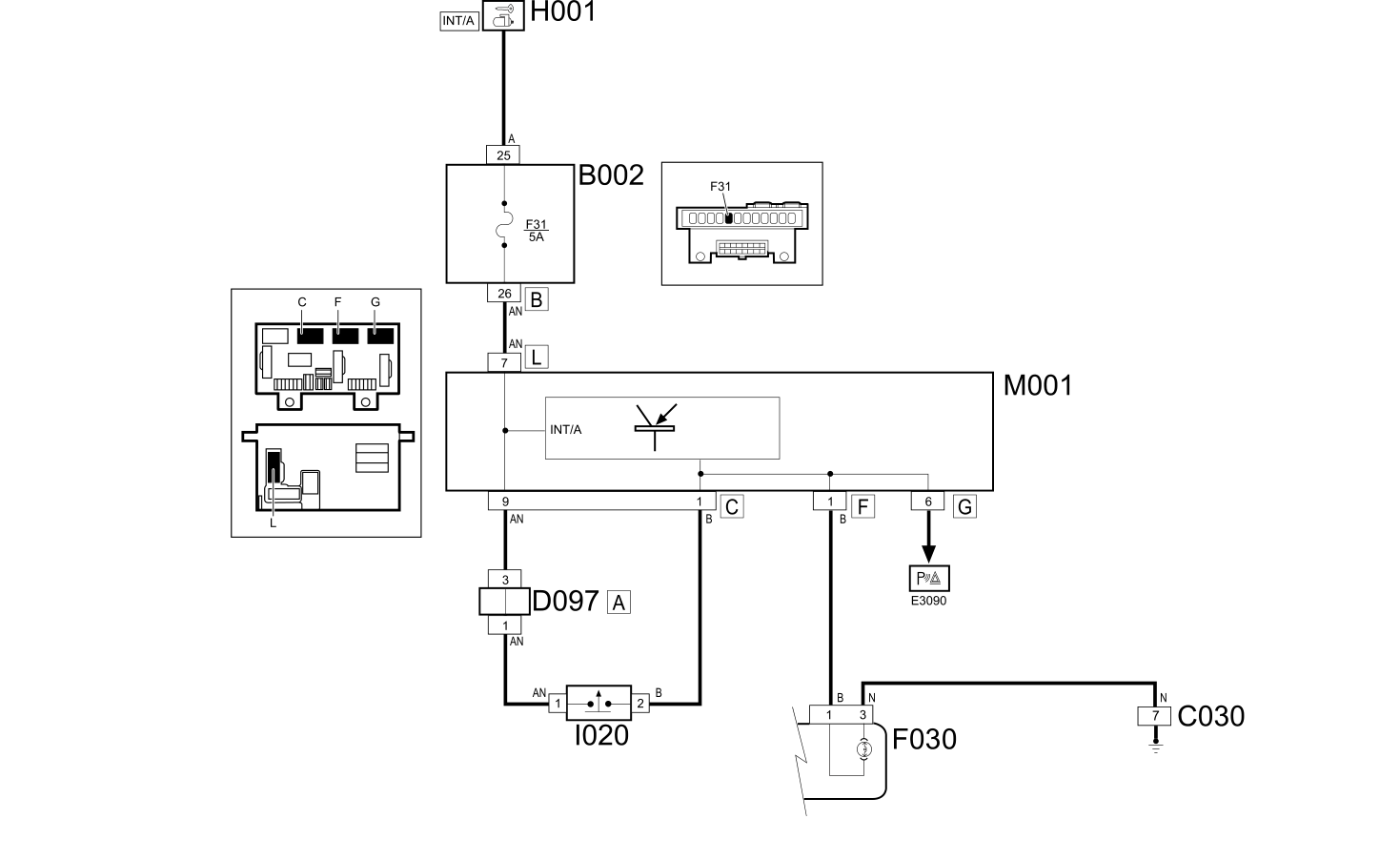

REVERSING LIGHTS - WIRING DIAGRAM

Right hand drive

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B2	Junction unit under dashboard	Op. 5505A MULTI-FUNCTION COMPONENTS
C30	LEFT REAR EARTH
D97	Short circuit coupling
F30	LEFT REAR LIGHT CLUSTER	Op. 5540A LIGHTING
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
I20	REVERSING LIGHTS SWITCH	Op. 2135A AUTOMATIC TRANSMISSION MANUAL CONTROLS
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS

1.3 JTD 16v · SUV

Wiring diagram

COMPONENTS

Component code	Description	Reference to the assembly
B2	Junction unit under dashboard	5505C
C30	Left rear earth
F31	Right rear light cluster	5540A
H1	Ignition switch	5520A
I20	Reversing lights switch	2135B
M1	Body computer	5505A

All versions

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B2	Junction unit under dashboard	5505C
C30	Left rear earth
D97	Short circuiting coupling
F31	Rear right light cluster	5540A
H1	Ignition switch	5520A
I20	Reversing lights switch
I20	Reversing lights switch	2135B
M1	Body computer	5505A
