Fog lights - component location

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Interior lighting › Fog lights - component location

Wiring diagrams and electrical functionsFog lights - component location

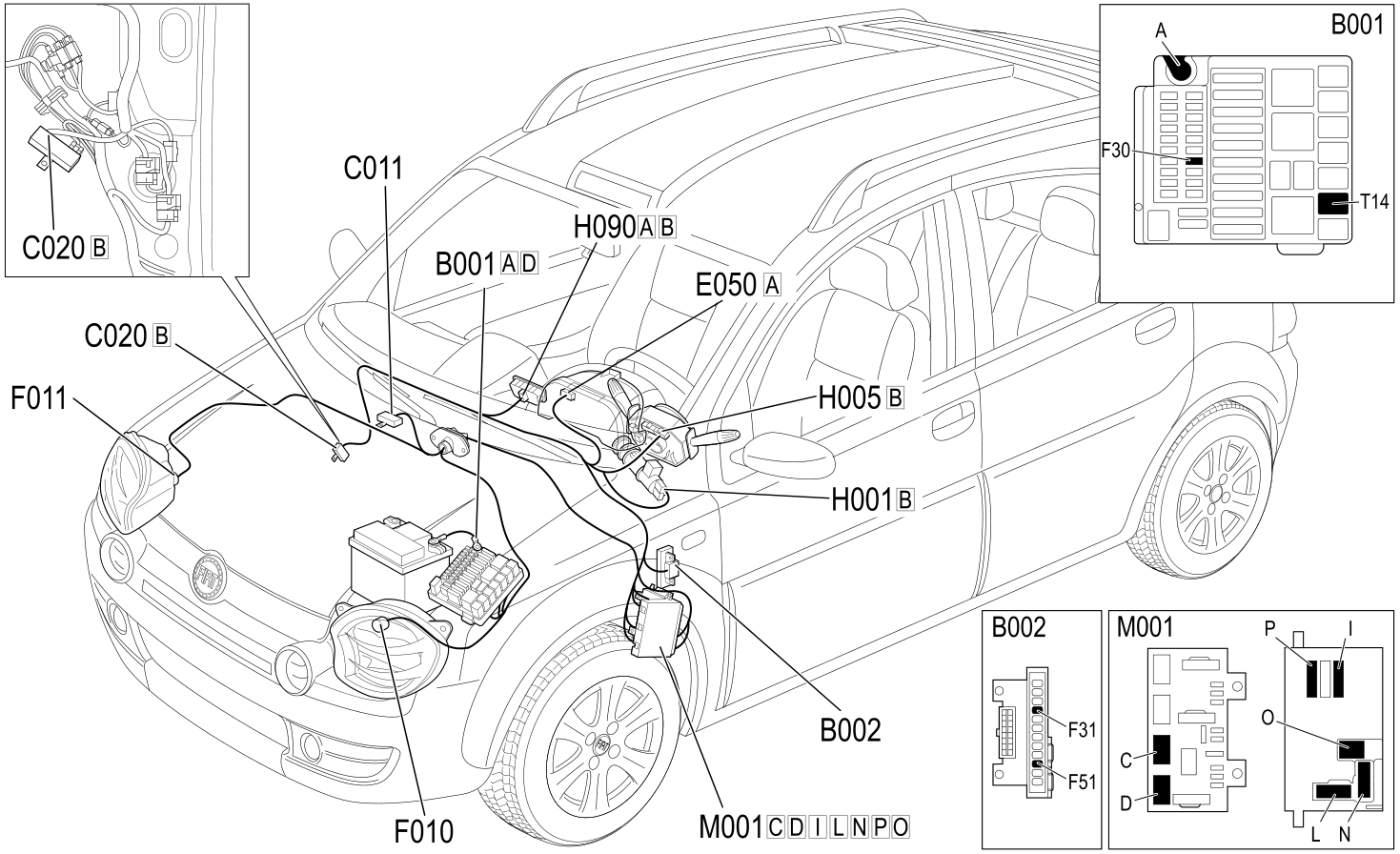

FOG LIGHTS - COMPONENT LOCATION

1.3 JTD 16v · SUV

Component location

COMPONENTS

Component code	Description	Reference to the assembly
B1	engine compartment junction unit	5505C
B2	Junction unit under dashboard	5505C
C11	Right front earth
C20	Passenger dashboard earth
E50	Instrument panel	5560B
F10	LEFT HEADLAMP	Op. 5540B HEADLAMPS
F11	RIGHT HEADLAMP	Op. 5540B HEADLAMPS
H1	Ignition switch	5520A
H1	Ignition switch	5520A
H5	Steering column switch unit	5550A
H90	Switch control panel	7040A
M1	Body computer	5505A

20 Electrical
