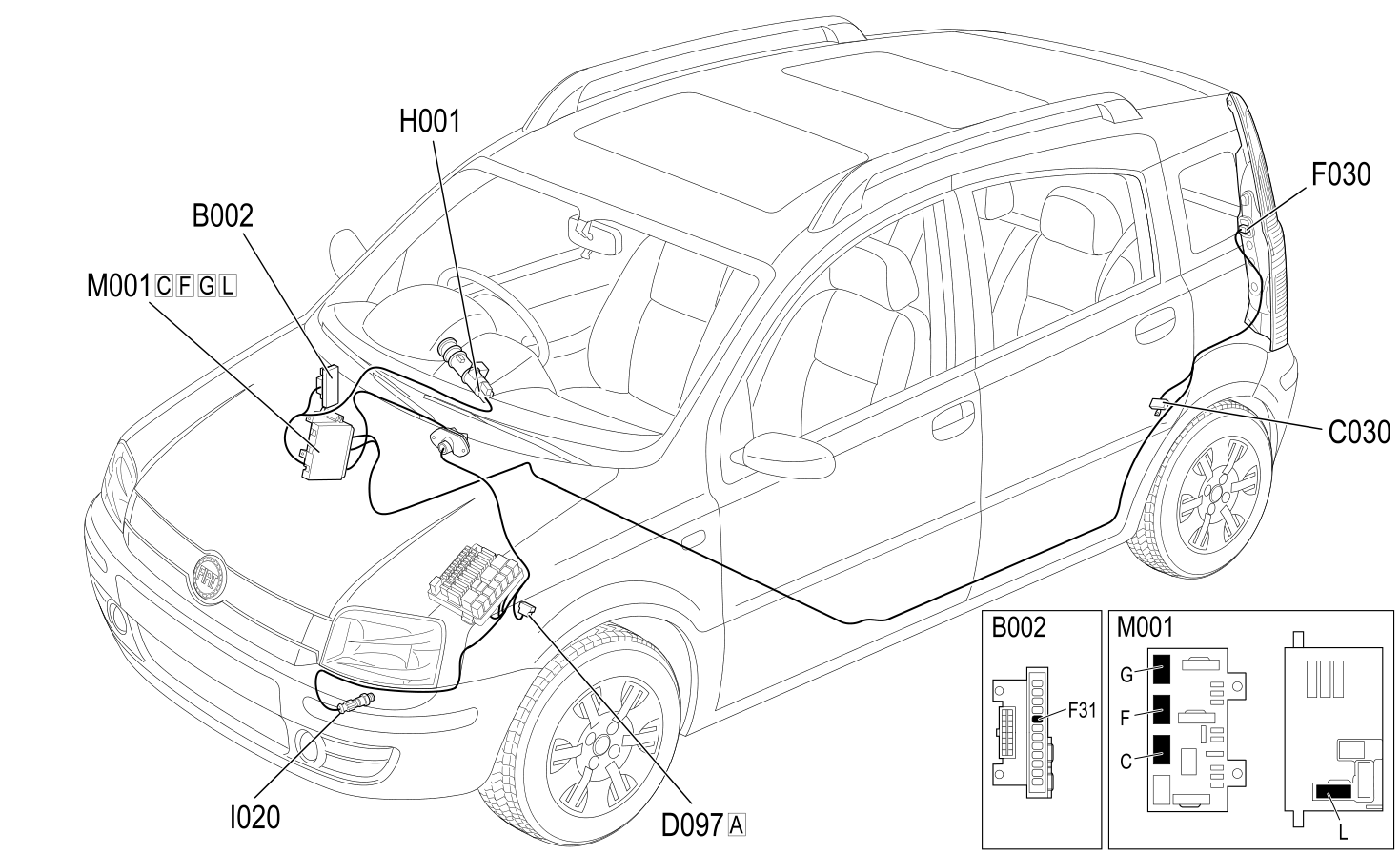

REVERSING LIGHTS - COMPONENT LOCATION

Right hand drive

Component location

COMPONENTS

Component code	Description	Reference to the assembly
B2	Junction unit under dashboard	Op. 5505A MULTI-FUNCTION COMPONENTS
C30	LEFT REAR EARTH
D97	Short circuit coupling
F30	LEFT REAR LIGHT CLUSTER	Op. 5540A LIGHTING
H1	Ignition switch	Op. 5520A IGNITION SWITCH
I20	REVERSING LIGHTS SWITCH	Op. 2135A AUTOMATIC TRANSMISSION MANUAL CONTROLS
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS

1.3 JTD 16v · SUV

Component location

Component code	Description	Reference to the assembly
B2	Junction unit under dashboard	5505C
C30	Left rear earth
F31	Right rear light cluster	5540A
H1	Ignition switch	5520A
I20	Reversing lights switch	2135B
M1	Body computer	5505A
