EngineBelt timing system
Belt timing system
Type
Controlled directly via the toothed belt which also controls the camshafts in addition to the water pump.

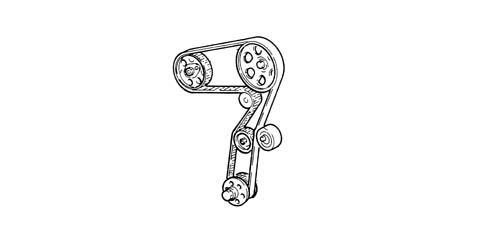

1 - Drive pulley
2 - Fixed tensioner
3 - Exhaust side driven pulley
4 - Inlet side driven pulley
5 - Water pump
6 - Moving tensioner

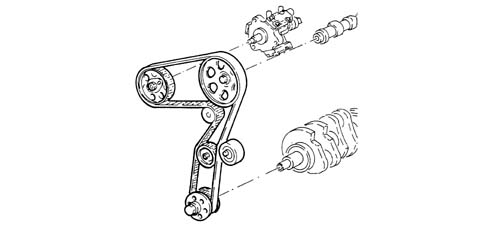

Controlled directly via the toothed belt which also controls the camshaft in addition to the pressure pump and the water pump.
Controlled directly via the toothed belt which also controls the camshaft in addition to the pressure pump and the water pump.
