Overhead camshaft - r r on vehicle

Operation 1036B10 · Overhead camshaft

1.9 JTD 8v

Removing

- 1016A10 sound-proofing cover - r + r

- 1016A20 single cam cover - r + r and replace gasket

- 4450B04 right front wheel r r

- 7055B54 under-engine guard - r r

- 7055B42 Additional FRONT WHEEL ARCH (one), left or right - R.R.

- 1092G10 single engine belt r r

- 1092A12 crankshaft pulley - r+r for versions with air conditioner

- 1032D12 timing system protective cover(s) - r + r

- 1032B14 toothed timing belt - r + r for timing adjustment or replacement versions with air conditioner

- 1032B53 driven toothed pulley (one) - r r for versions with air conditioner

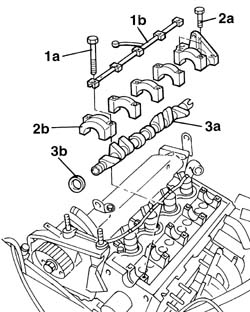

1. Unscrew retaining bolt (1a) and remove camshaft journal lubrication pipe (1b).

2. Undo bolts (2a) and remove camshaft caps (2b).

3. Remove camshaft (3a) with oil seal (3b).

Refitting

Fit the camshaft to the cylinder head.

Tighten the cap retaining bolts.

Fit the lubrication pipe and secure by tightening the retaining bolts.

Tighten the cap bolts to torque.

1. Use tool (1a) to fit new oil seal (1b) to the camshaft.

- 1032B53 driven toothed pulley (one) - r r for versions with air conditioner

- 1032B14 toothed timing belt - r + r for timing adjustment or replacement versions with air conditioner

- 1032D12 timing system protective cover(s) - r + r

- 1092A12 crankshaft pulley - r+r for versions with air conditioner

- 1092G10 single engine belt r r

- 7055B42 Additional FRONT WHEEL ARCH (one), left or right - R.R.

- 7055B54 under-engine guard - r r

- 4450B04 right front wheel r r

- 1016A20 single cam cover - r + r and replace gasket

- 1016A10 sound-proofing cover - r + r
