RADIO - Wiring diagram

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Radio accessories › RADIO - Wiring diagram

Wiring diagrams and electrical functionsRADIO - Wiring diagram

RADIO - Wiring diagram

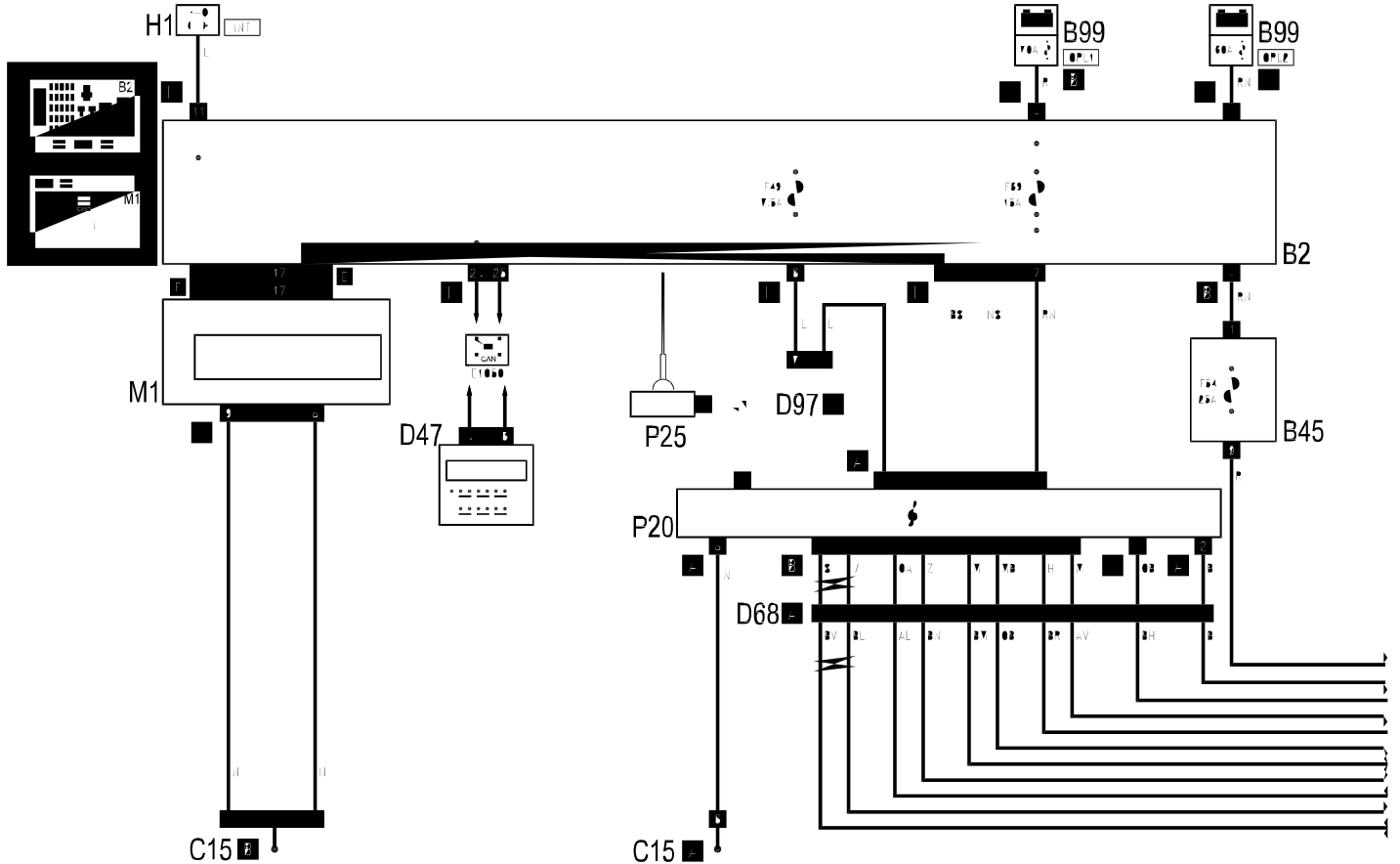

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
B45	Luggage compartment junction unit
B99	Maxifuse box on battery	5530B
C15	Facia earth, driver's side
C30	Left rear earth
D30	Rear coupling for /front door. driver's side
D31	/Front passenger door. rear coupling
D31	Front passenger door/ rear coupling.
D35	Left /rear door. coupling
D35	Rear / rear door coupling left
D36	Rear/right door coupling right
D36	Right /rear door. rear coupling
D41	Rear dashboard/ coupling for speakers
D47	Clock spring coupling	5580C
D68	HI system junction
D97	Short circuiting coupling
H1	Ignition switch	5520A
M1	Body computer	5505A
P20	Car radio	5570T
P20	Radio	5570T
P25	Aerial
P30	Left rear speaker	5580T
P31	Right rear speaker	5580T
P35	Speaker in driver's .front door	5580T
P36	Speaker in front passenger door	5580T
P45	Driver's front tweeter speaker	5570T
P46	Front passenger side tweeter speaker	5570T
P47	Rear left tweeter speaker
P47	Rear left tweeter speaker	5570T
P48	Rear right tweeter speaker
P49	Rear subwoofer speaker	5570T
P70	HIFI radio amplifier

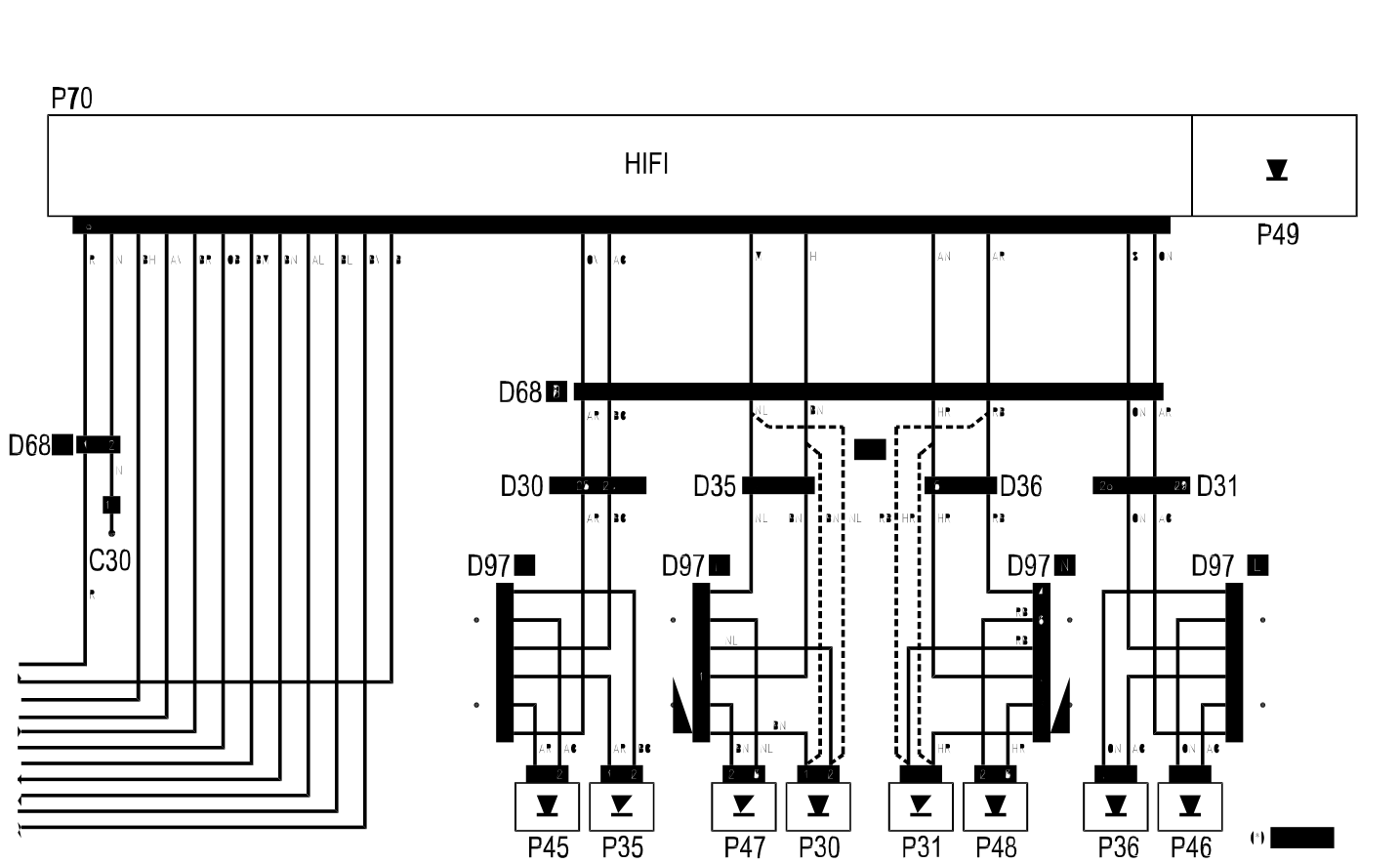

Hi-Fi

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
B45	Luggage compartment junction unit
B99	Maxifuse box on battery	5530B
C15	Facia earth, driver's side
C30	Left rear earth
D30	Rear coupling for /front door. driver's side
D31	/Front passenger door. rear coupling
D31	Front passenger door/ rear coupling.
D35	Left /rear door. coupling
D35	Rear / rear door coupling left
D36	Rear/right door coupling right
D36	Right /rear door. rear coupling
D41	Rear dashboard/ coupling for speakers
D47	Clock spring coupling	5580C
D68	HI system junction
D97	Short circuiting coupling
H1	Ignition switch	5520A
M1	Body computer	5505A
P20	Car radio	5570T
P20	Radio	5570T
P25	Aerial
P30	Left rear speaker	5580T
P31	Right rear speaker	5580T
P35	Speaker in driver's .front door	5580T
P36	Speaker in front passenger door	5580T
P45	Driver's front tweeter speaker	5570T
P46	Front passenger side tweeter speaker	5570T
P47	Rear left tweeter speaker
P47	Rear left tweeter speaker	5570T
P48	Rear right tweeter speaker
P49	Rear subwoofer speaker	5570T
P70	HIFI radio amplifier

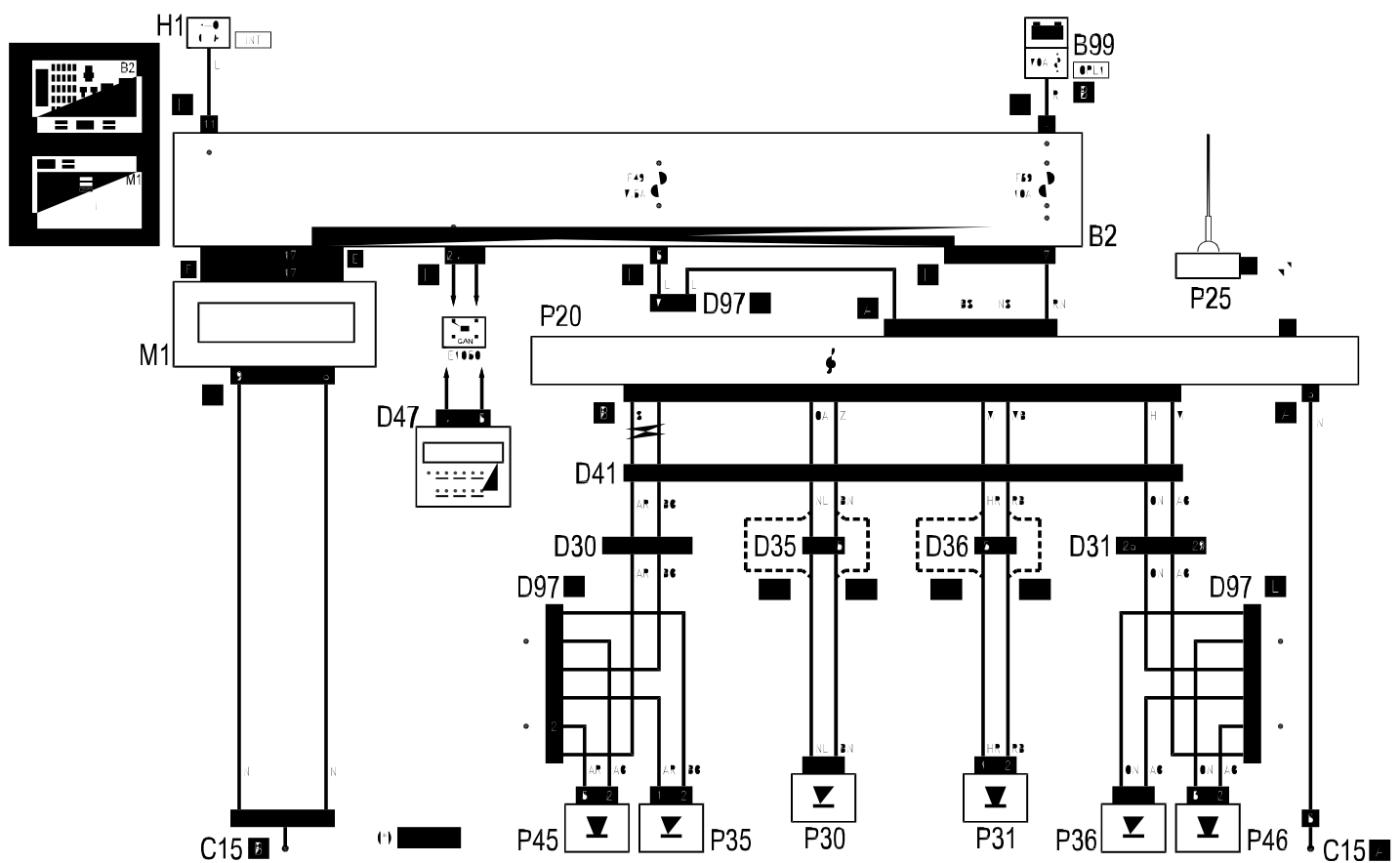

Right hand drive

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
B45	Luggage compartment junction unit
B99	Maxifuse box on battery	5530B
C15	Facia earth, driver's side
C30	Left rear earth
D30	Rear coupling for /front door. driver's side
D31	/Front passenger door. rear coupling
D31	Front passenger door/ rear coupling.
D35	Left /rear door. coupling
D35	Rear / rear door coupling left
D36	Rear/right door coupling right
D36	Right /rear door. rear coupling
D41	Rear dashboard/ coupling for speakers
D47	Clock spring coupling	5580C
D68	HI system junction
D97	Short circuiting coupling
H1	Ignition switch	5520A
M1	Body computer	5505A
P20	Car radio	5570T
P20	Radio	5570T
P25	Aerial
P30	Left rear speaker	5580T
P31	Right rear speaker	5580T
P35	Speaker in driver's .front door	5580T
P36	Speaker in front passenger door	5580T
P45	Driver's front tweeter speaker	5570T
P46	Front passenger side tweeter speaker	5570T
P47	Rear left tweeter speaker
P47	Rear left tweeter speaker	5570T
P48	Rear right tweeter speaker
P49	Rear subwoofer speaker	5570T
P70	HIFI radio amplifier
