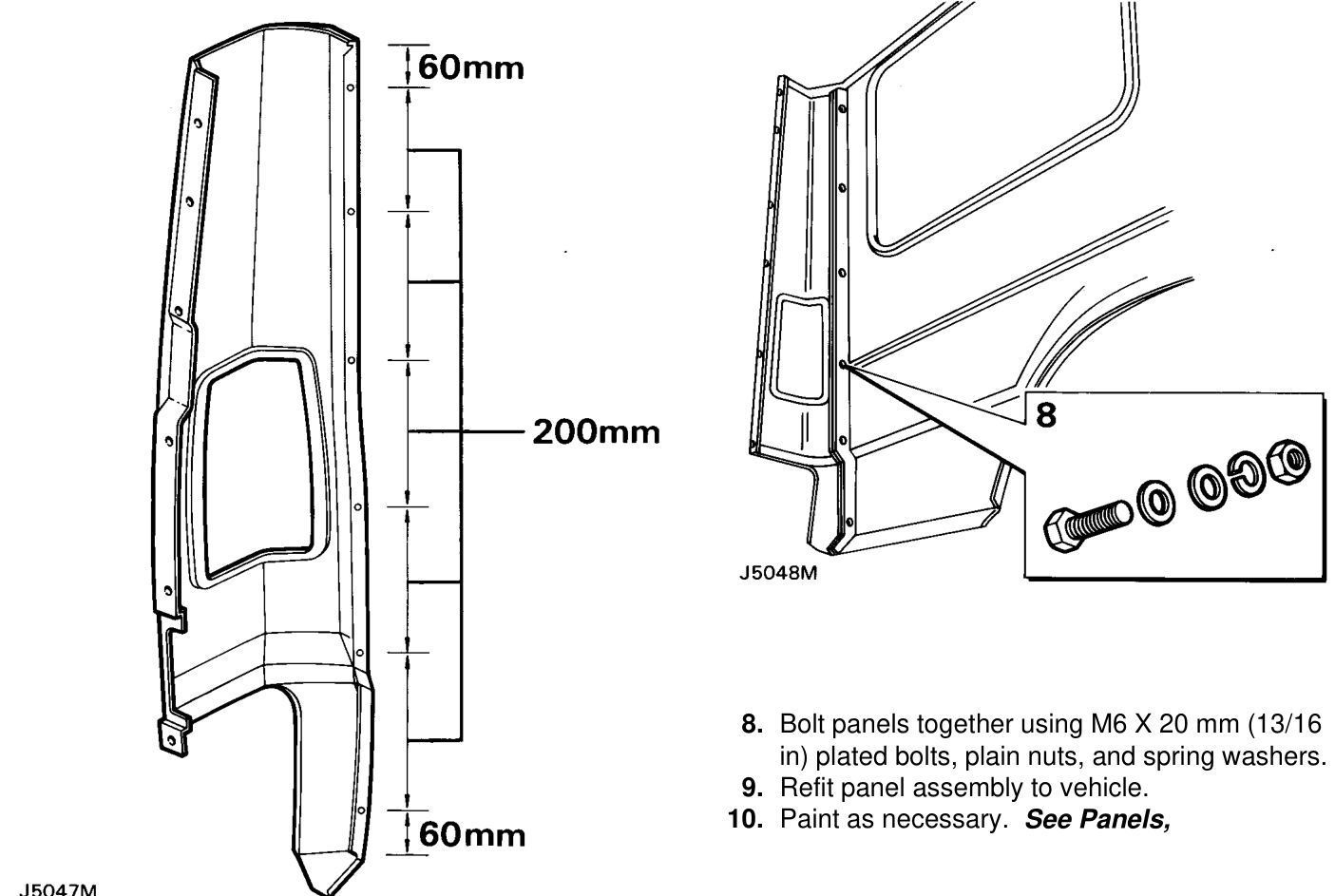

8. Bolt panels together using M6 X 20 mm (13/16 in) plated bolts, plain nuts, and spring washers.
9. Refit panel assembly to vehicle.
10. Paint as necessary. See Panels,
4. Mark centre line of front flange on the replacement rear quarter panel. Mark and drill six 6.5 mm (1/4 in) holes at locations shown.
5. Align and clamp rear quarter panel to body side panel. Using a marker, transfer locations of the holes on rear quarter panel flange to body side panel flange.
6. Remove rear quarter panel and drill six 6,5 mm (1/4 in) holes at locations marked on body side panel flange.
7. Remove all roughness from edges of holes as necessary, and apply etch primer to all bare metal areas.
