DRIVER’S SIDE – FAULT DIAGNOSIS

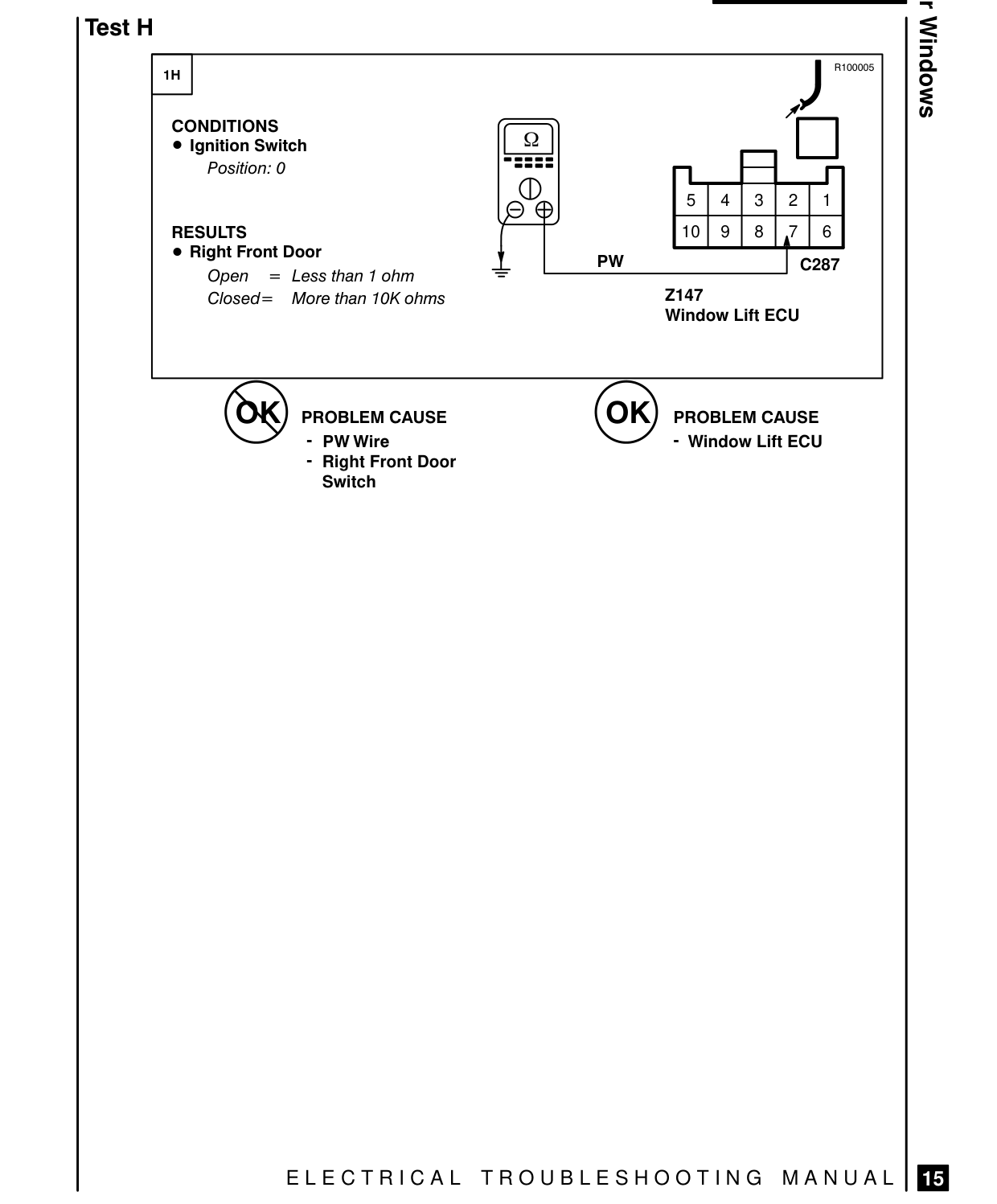

Test H
CONDITIONS ® Ignition Switch Position: 0
RESULTS ® Right Front Door Open = Less than 1 ohm Closed= More than 10K ohms
(59) PROBLEM CAUSE - PW Wire - Right Front Door Switch
ELECTRICAL TROUBLESHOOTING MANUAL
J R100005 gS
bono 413|2 ojsf8]7]6) PW C287
2147 Window Lift ECU
PROBLEM CAUSE - Window Lift ECU
