DRIVER’S SIDE – FAULT DIAGNOSIS

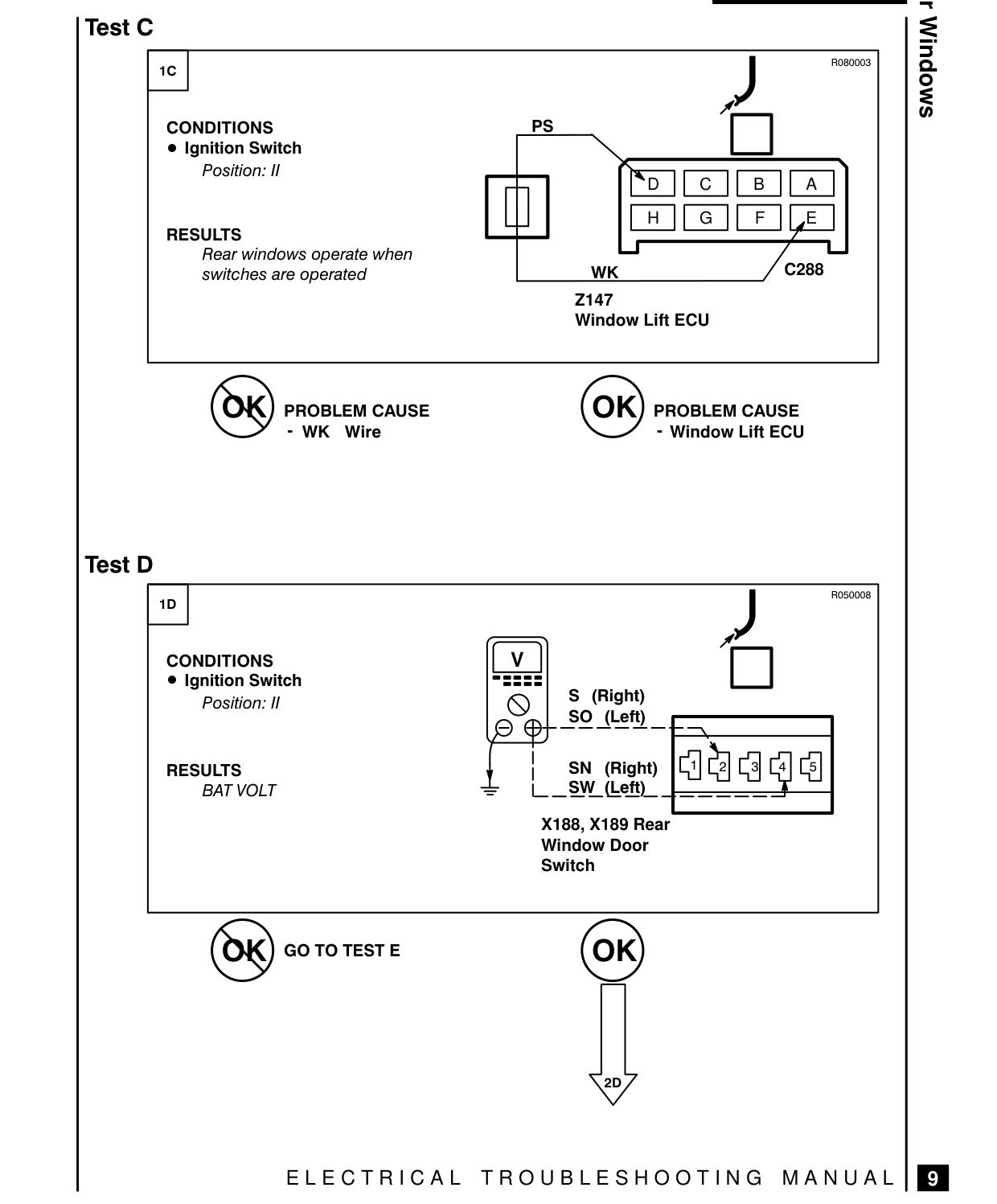

Test C

CONDITIONS ® Ignition Switch Position: Il RESULTS Rear windows operate when switches are operated

(5) PROBLEM CAUSE - WK Wire

Test D

CONDITIONS ® Ignition Switch Position: II

RESULTS

(5) GOTO TESTE

ELECTRICAL TROUBLESHOOTING MANUAL | EX

recs] PS

iil C288 Z147 Window Lift ECU

PROBLEM CAUSE - Window Lift ECU

R050008

S (Right) Sl RC I SN (Right) x] Cd | C3]

X188, X189 Rear Window Door Switch
