Driver’s side – fault diagnosis
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Fault diagnosis › Driver’s side – fault diagnosis
Drivers sideDriver’s side – fault diagnosis

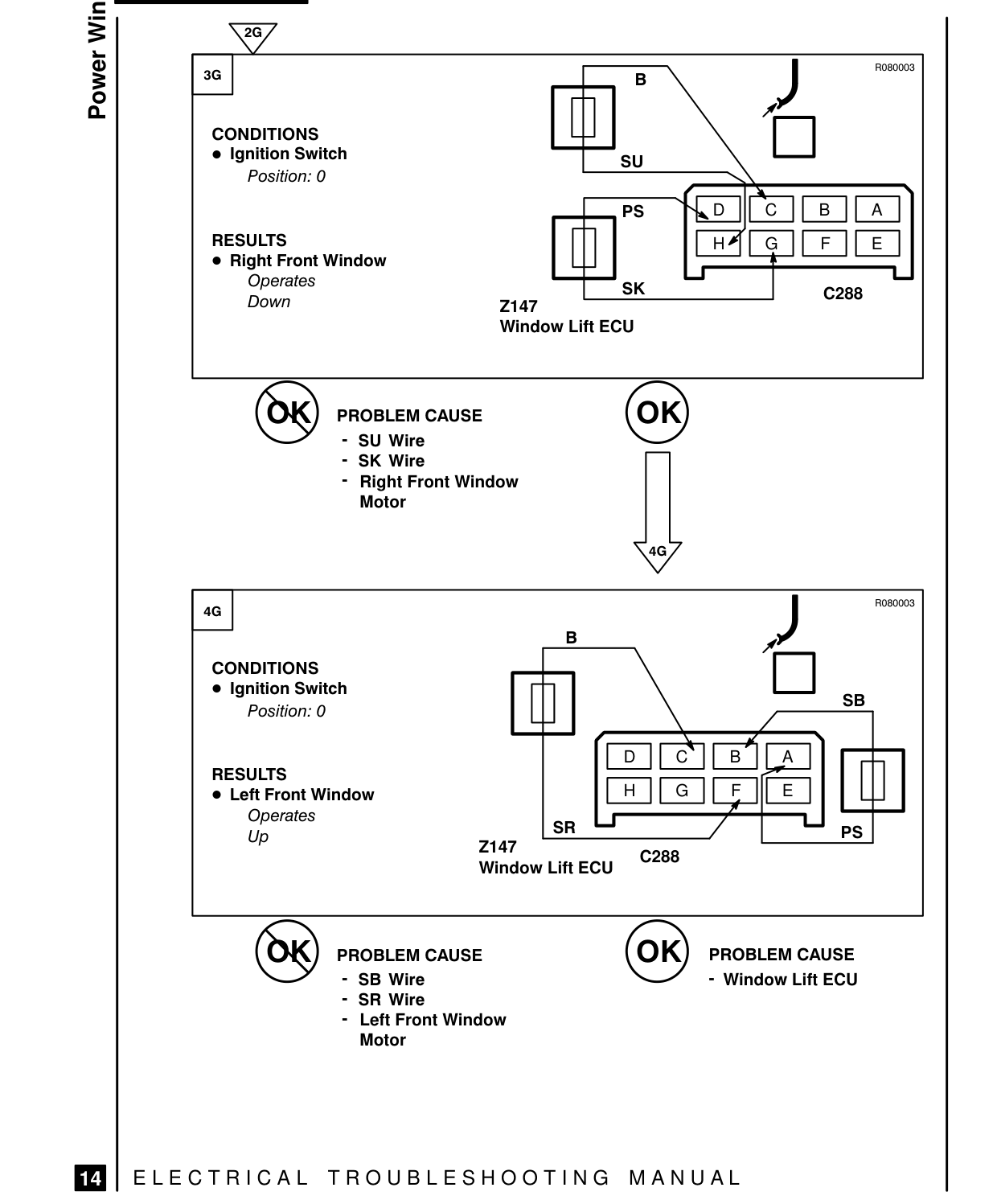

DRIVER’S SIDE – FAULT DIAGNOSIS
ao CONDITIONS ® Ignition Switch Position: 0
RESULTS e Right Front Window Operates Down
(5) PROBLEM CAUSE - SU Wire - SK Wire Right Front Window Motor
CONDITIONS Position: 0 ® Ignition Switch
RESULTS ® Left Front Window Operates Up
(5) PROBLEM CAUSE - SB Wire - SR Wire Left Front Window Motor
BB} | ELECTRICAL TROUBLESHOOTING MANUAL
R080003
aD |
7147 C288 Window Lift ECU
RO80003
li} SB [Do] il
2147 Window Lift ECU C288
PROBLEM CAUSE - Window Lift ECU
