Introduction – circuit diagram

INTRODUCTION – CIRCUIT DIAGRAM

Oo

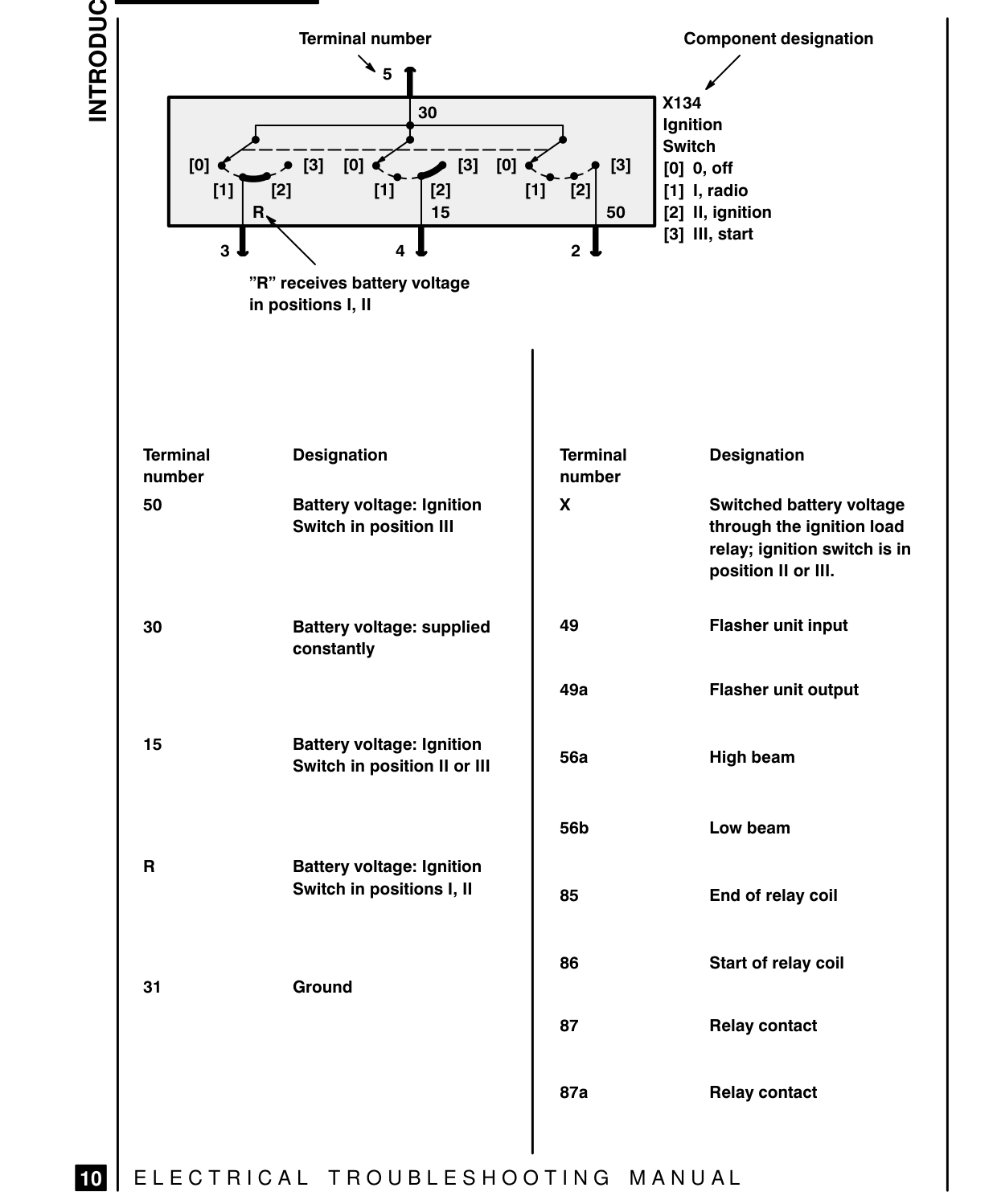

[mn] Terminal number

pd 30

28 01 Lp Bl OC, nif 15

”R” receives battery voltage in positions |, II

Terminal Designation number

50 Battery voltage: Ignition Switch in position Ill

30 Battery voltage: supplied constantly

15 Battery voltage: Ignition Switch in position II or lil

Battery voltage: Ignition Switch in positions |, I

31 Ground

Bl) | ELECTRICAL TROUBLESHOOTING MANUAL

Component designation

X134 Ignition Switch 2B |[0]oof |, radio 50 II, ignition Il, start

Terminal Designation number

Switched battery voltage through the ignition load relay; ignition switch is in position Il or Ill.

49 Flasher unit input

49a Flasher unit output

56a High beam

56b Low beam

85 End of relay coil

86 Start of relay coil

87 Relay contact

87a Relay contact
