Power mirrorsPower mirrors – fault diagnosis

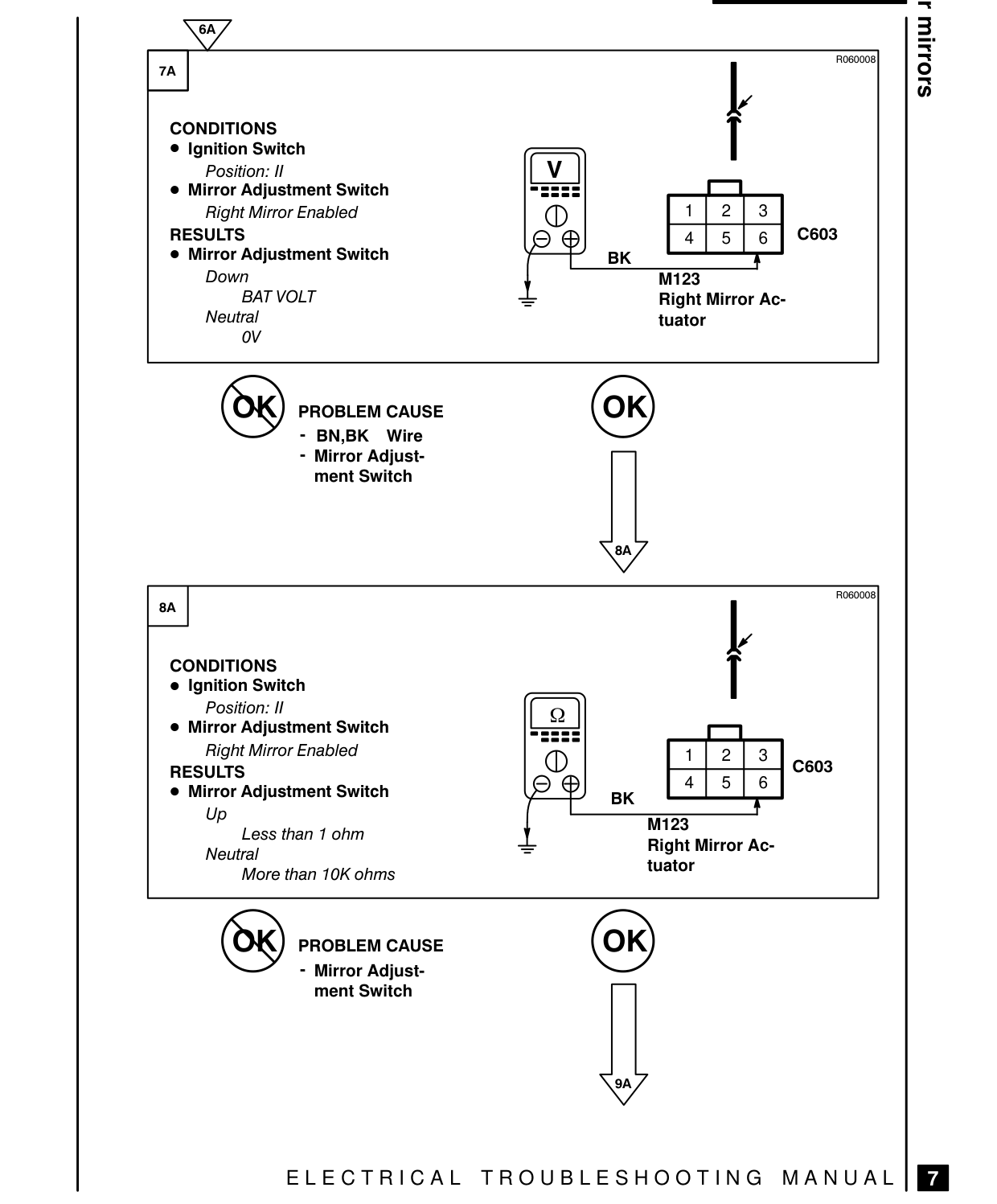

POWER MIRRORS – FAULT DIAGNOSIS
CONDITIONS ® Ignition Switch Position: Il ® Mirror Adjustment Switch Right Mirror Enabled RESULTS e Mirror Adjustment Switch Down BAT VOLT Neutral ov
(59) PROBLEM CAUSE - BN,BK Wire - Mirror Adjustment Switch
CONDITIONS ® Ignition Switch Position: Il ® Mirror Adjustment Switch Right Mirror Enabled eps ® Mirror Adjustment Switch Up Less than 1 ohm Neutral More than 10K ohms
(59) PROBLEM CAUSE = Mirror Adjustment Switch
ELECTRICAL
060008 72]
aD | 4| 5 | 6 | C603 BK M123 Right Mirror Actuator
RO60008
TREE
[leis] ™ BK M123 oF Right Mirror Actuat uator
TROUBLESHOOTING MANUAL
