Power mirrors – fault diagnosis

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Power mirrors – fault diagnosis

Power mirrorsPower mirrors – fault diagnosis

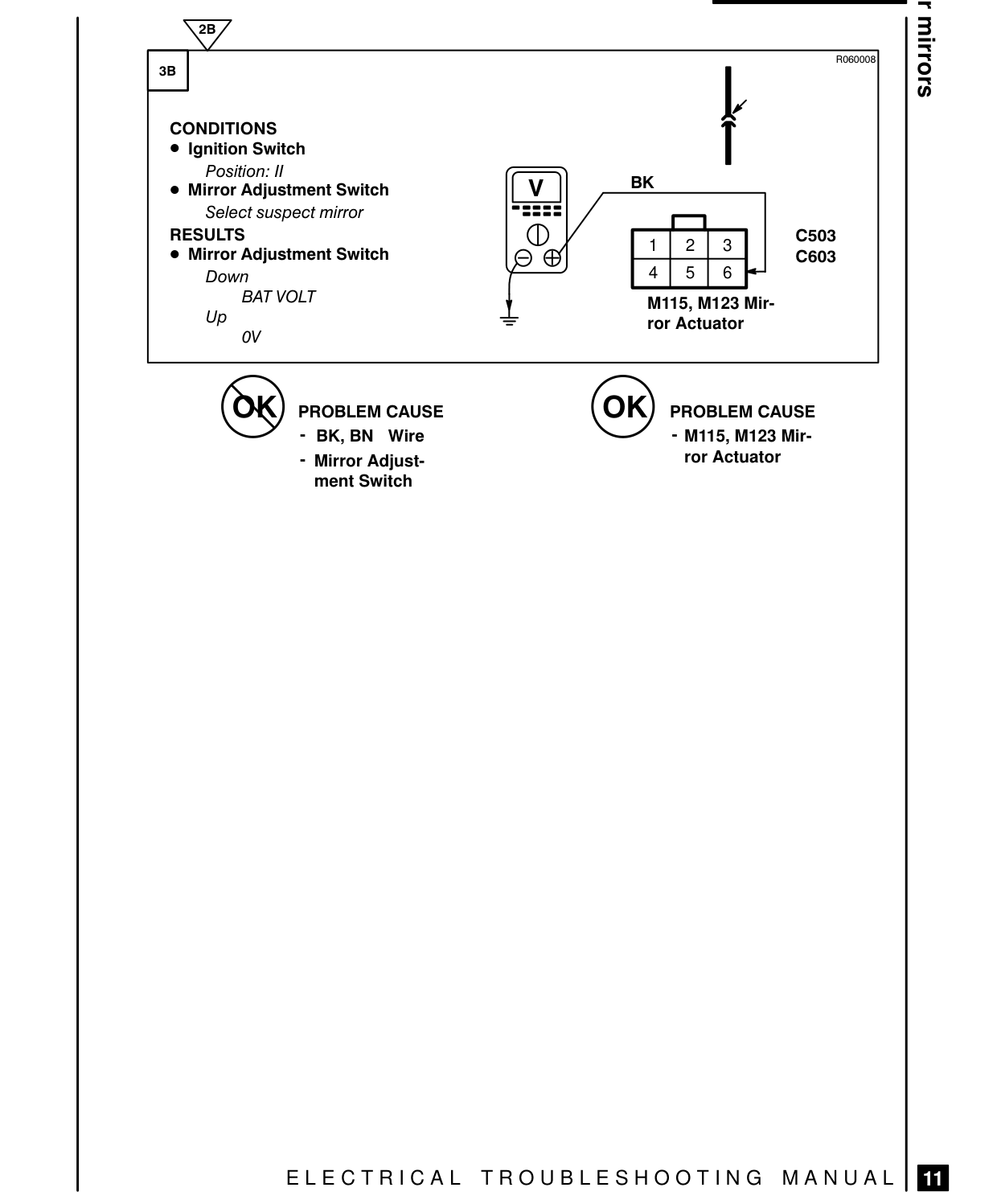

POWER MIRRORS – FAULT DIAGNOSIS

as |

CONDITIONS ® Ignition Switch ® Mirror Adjustment Switch Position: I Select suspect mirror RESULTS eo Mirror Adjustment Switch Down Up BAT VOLT ov

(59) PROBLEM CAUSE - BK, BN Wire - Mirror Adjustment Switch

ELECTRICAL TROUBLESHOOTING MANUAL | ki

060008 72]

BK ol 1H aD C503 oO & C603 | 4] 56] M115, M123 Mirror Actuator

PROBLEM CAUSE - M115, M123 Mirror Actuator
