Power mirrors – fault diagnosis

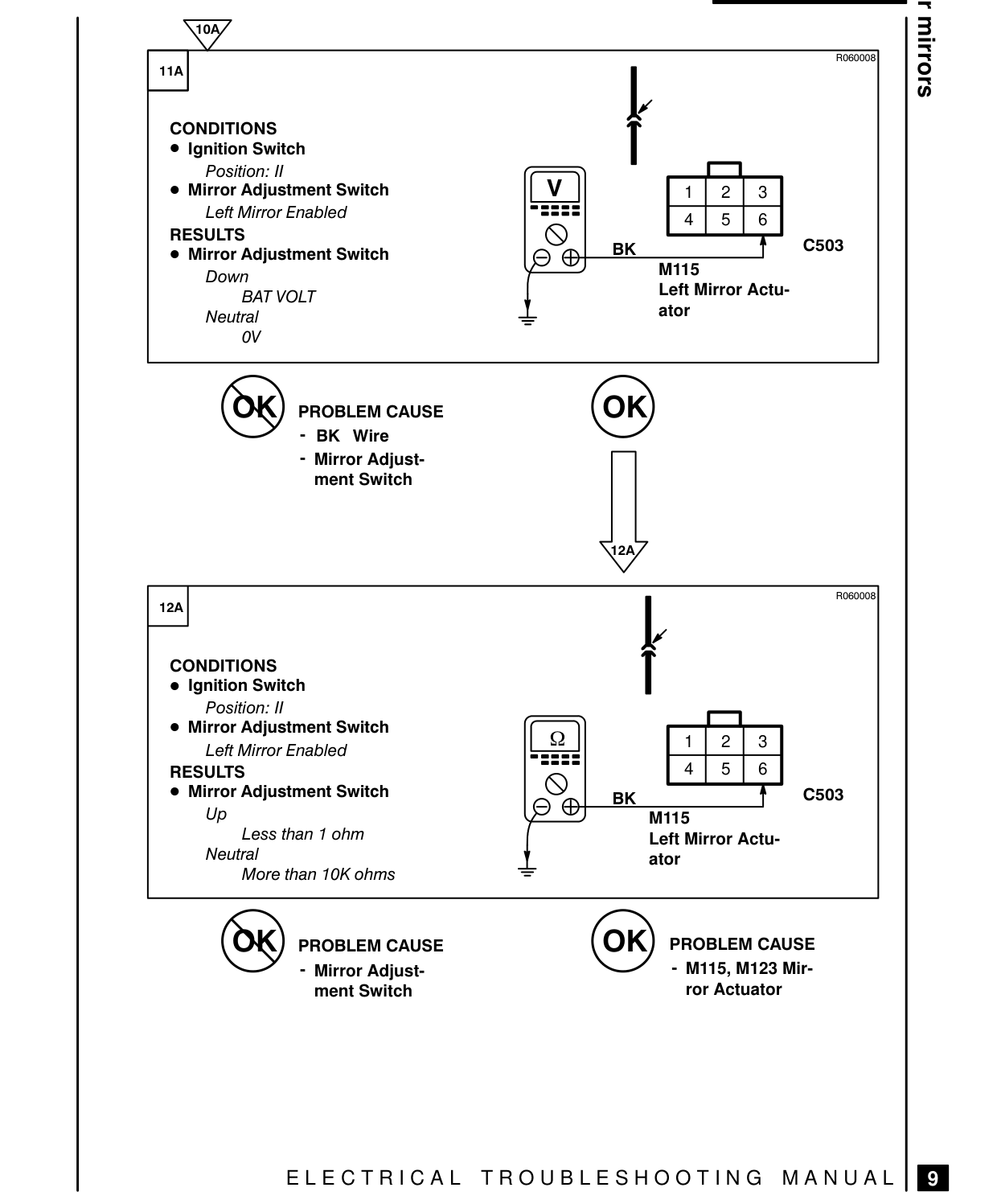

POWER MIRRORS – FAULT DIAGNOSIS

CONDITIONS ® Ignition Switch Position: I ® Mirror Adjustment Switch Left Mirror Enabled RESULTS e Mirror Adjustment Switch Down BAT VOLT Neutral ov

(59) PROBLEM CAUSE - BK Wire

- Mirror Adjustment Switch

CONDITIONS ® Ignition Switch Position: I ® Mirror Adjustment Switch Left Mirror Enabled nesuLTS ® Mirror Adjustment Switch Up Less than 1 ohm Neutral More than 10K ohms

(59) PROBLEM CAUSE - Mirror Adjustment Switch

ELECTRICAL TROUBLESHOOTING MANUAL | IE}

R060008 72]

[4] 5] 6] C503 oO P BK M115 Left Mirror Actuator

R060008

Lr TTL Ee fn BK C503 M115 Left Mirror Actuator

PROBLEM CAUSE - M115, M123 Mirror Actuator
