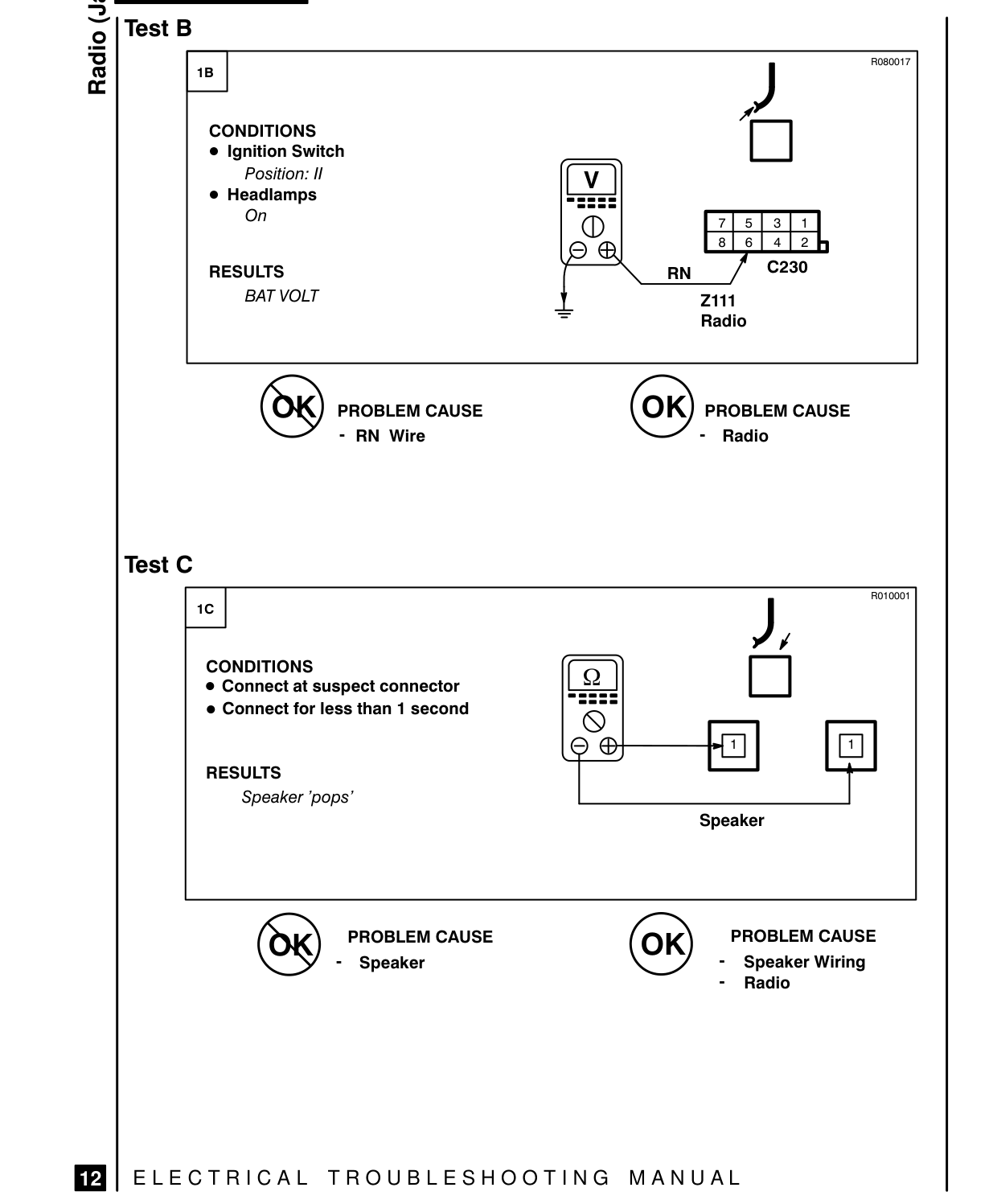

RADIO (JAPAN) – FAULT DIAGNOSIS

[1] 2 o Test B Ee]

CONDITIONS e Ignition Switch Position: II

eo Headlamps On

RESULTS BAT VOLT

(59) PROBLEM CAUSE - RN Wire

Test C

CONDITIONS e Connect at suspect connector e Connect for less than 1 second

RESULTS

Speaker ‘pops’

PROBLEM CAUSE

Speaker

EB | ELECTRICAL TROUBLESHOOTING MANUAL

R080017

oO Colello} RN C230 Z111 Radio

PROBLEM CAUSE Radio

R010001

LoS SQ

Speaker

PROBLEM CAUSE

Speaker Wiring Radio
